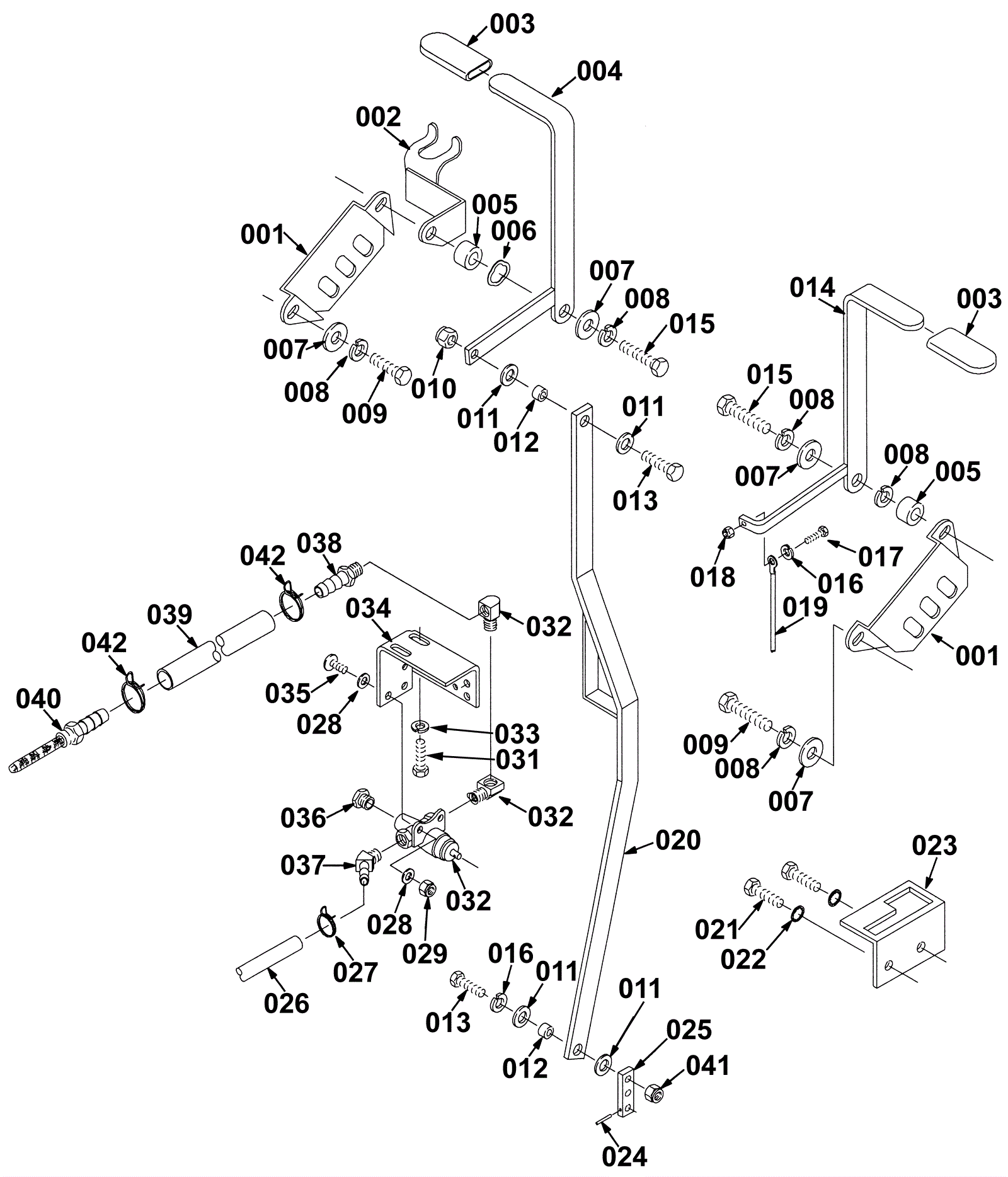

Lever Assembly

#PartDescription ReqNotesAvailability
001 175-2728 Locking plate 2
002 175-2729 Hose hanger bracket 1
003 175-2723 Handle grip (rubber) 2
004 175-6647 Solution valve handle 1
005 175-3057 Bushing 2
006 175-3058 Washer 3/4 wave 1
007 999-0024 Washer 5/16 flat stainless steel 4
008 999-0553 Washer 5/16 medium split lock stainless steel 4
009 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
010 999-0181 Nut 1/4-20 hex jam plain finish 1
011 999-0016 Washer 1/4 flat plain finish 4
012 175-2726 Sleeved bushing 2
013 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 2
014 175-1019 Squeegee lift handle 1
015 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
016 999-0632 Washer 1/4 split lock stainless steel 2
017 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
018 999-0181 Nut 1/4-20 hex jam plain finish 1
019 175-3068 Squeegee lift cable 1
020 175-3060 Solution valve lever 1
021 999-0064 Screw 10-24 x 7/16 round head slotted zinc plated 2
022 999-0053 Washer #10 split lock plain finish 2
023 175-3080 Squeegee lock plate 1
024 175-2030 Roll pin 1
025 175-2031 Valve arm 1
026 175-6648 Hose 3/8 x 18 inches 1
027 175-3671 Hose clamp 1
028 999-0393 Washer 3/16 flat aluminum 4
029 999-0442 Nut 10-24 nylon insert lock stainless steel 2
030 175-2029 3-way ball valve 1
031 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
033 999-0632 Washer 1/4 split lock stainless steel 2
034 175-1047 Solution valve bracket 1
035 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
036 175-1042 1/4 Inch hex brass plug fitting 1
037 175-3061 Hosebarb 1
038 175-6030 Straight hosebarb 1
039 175-3694 Hose 1/2 x 6 inch 1
040 175-1044 Filter screen 1
041 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
042 175-3671 Hose clamp 2
