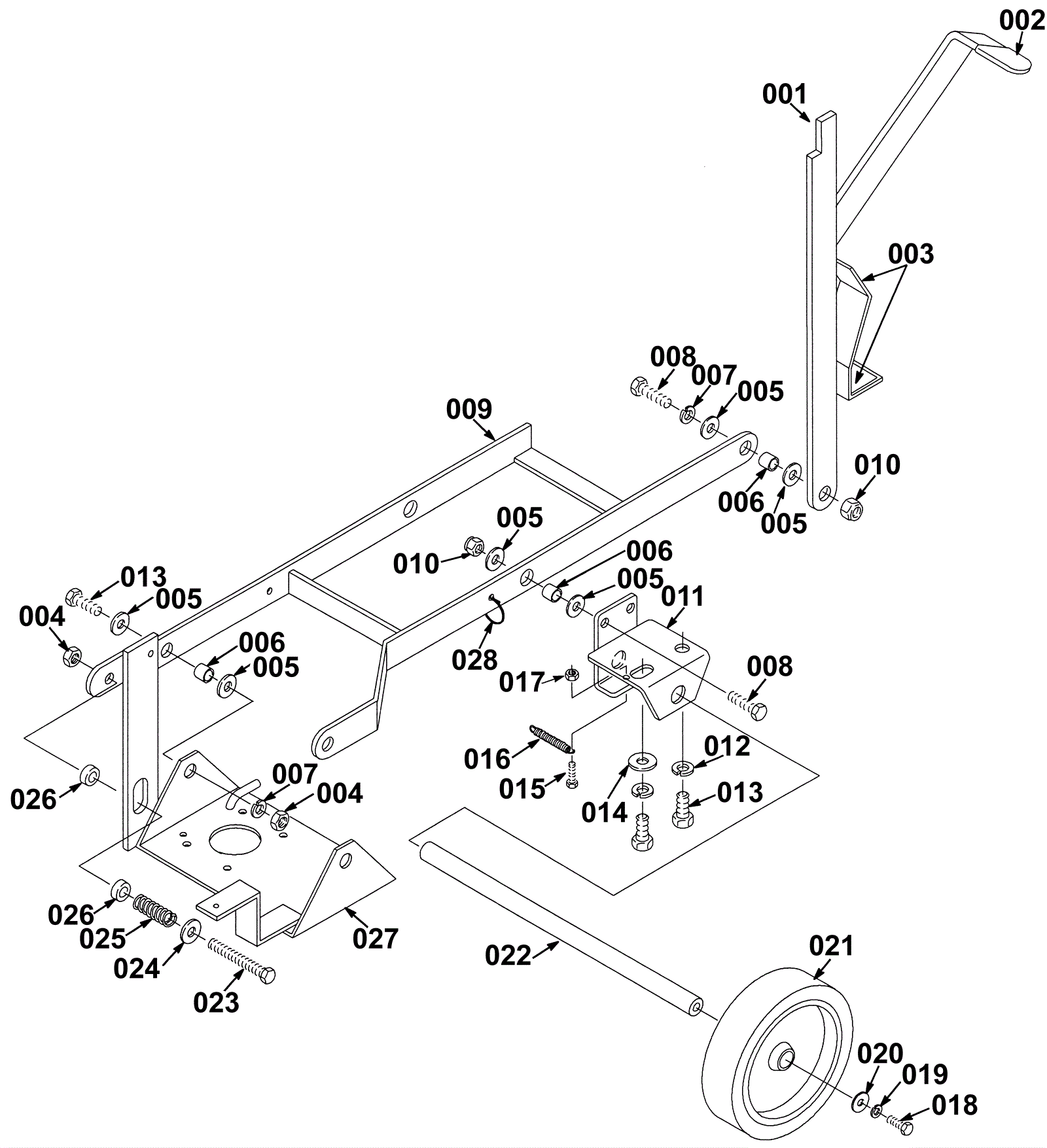

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0937
|
Foot lever |
1 |
|
|
002 |
175-2723
|
Handle grip (rubber) |
1 |
|
|
003 |
175-2745
|
Non-slip pad |
2 |
|
|
004 |
999-0050
|
Nut 1/2-13 hex jam plain finish |
3 |
|
|
005 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
10 |
|
|
006 |
175-2743
|
Sleeved bushing |
5 |
|
|
007 |
999-0126
|
Washer 1/2 split lock |
3 |
|
|
008 |
999-0687
|
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
3 |
|
|
009 |
175-0938
|
Lift bracket weldment |
1 |
|
|
010 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
3 |
|
|
011 |
175-1074
|
Squeegee pivot and axle mounting bracket |
2 |
|
|
012 |
999-0126
|
Washer 1/2 split lock |
4 |
|
|
013 |
999-0115
|
Bolt 1/2-13 x 1 hex head grade 5 |
6 |
|
|
014 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
015 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
016 |
175-2970
|
Extension spring |
2 |
|
|
017 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
018 |
999-0820
|
Screw 10-24 x 7/8 truss head phillips zinc plated |
2 |
|
|
019 |
999-0034
|
Washer 3/8 split lock plain finish |
2 |
|
|
020 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
021a |
175-6649
|
Wheel 8 x 1-1/2 inches |
2 |
|
|
021b |
991-9191
|
8"x1 5/8" RUBBER WHEEL W/3/4 BRGS |
2 |
(NON-OEM) |
|
022 |
175-1073
|
Axle |
1 |
|
|
023 |
999-1113
|
Bolt 1/2-13 x 2 1/2 hex cap stainless steel |
1 |
|
|
024 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
025 |
175-0944
|
Spring |
1 |
|
|
026 |
175-0939
|
Thrust washer |
2 |
|
|
027 |
175-0947
|
Motor mount bracket |
1 |
|
|
028 |
175-0037
|
Wire tie |
1 |
|
|
