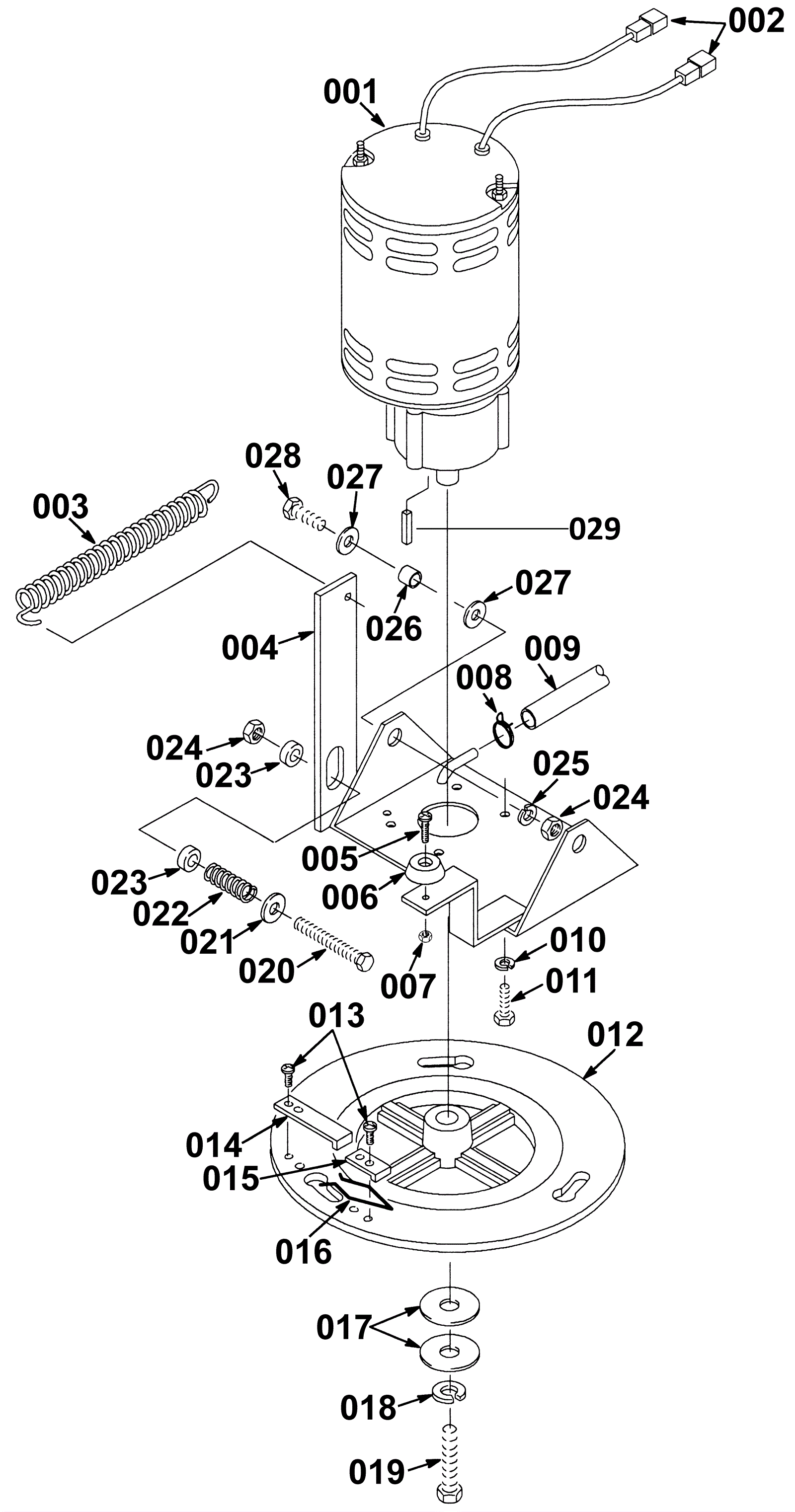

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-2599
|
24V brush motor with gearbox |
1 |
(OEM) |
|
001b |
175-2600
|
Carbon brush |
4 |
|
|
001c |
175-3028
|
Brush card assembly |
1 |
|
|
001d |
175-7927
|
Gearbox |
1 |
|
|
001e |
991-8524
|
36V 1.0HP brush motor assembly with gear box |
1 |
(NON-OEM) |
|
002 |
175-3032
|
Positive terminal ring |
2 |
|
|
003 |
175-0943
|
Extension spring |
1 |
|
|
004 |
175-0947
|
Motor mount bracket |
1 |
|
|
005 |
999-1029
|
Screw 10-24 x 5/8 truss head phillips stainless steel |
1 |
|
|
006 |
175-0946
|
Recessed bumper |
1 |
|
|
007 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
008 |
175-3671
|
Hose clamp |
1 |
|
|
009 |
175-6650
|
Hose 5/8 x 19 inches |
1 |
|
|
010 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
011 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
012 |
175-2609
|
Drive plate |
1 |
|
|
013 |
999-1114
|
Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc |
4 |
|
|
014 |
175-3034
|
Driver release stop |
1 |
|
|
015 |
175-2611
|
Brush plate clamp |
1 |
|
|
016 |
175-2612
|
Spring clip |
1 |
|
|
017 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
018 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
019 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
|
020 |
999-1113
|
Bolt 1/2-13 x 2 1/2 hex cap stainless steel |
1 |
|
|
021 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
022 |
175-0944
|
Spring |
1 |
|
|
023 |
175-0939
|
Thrust washer |
2 |
|
|
024 |
999-0050
|
Nut 1/2-13 hex jam plain finish |
3 |
|
|
025 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
026 |
175-2743
|
Sleeved bushing |
2 |
|
|
027 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
|
028 |
999-0561
|
Bolt 1/2-13 x 1 hex head stainless steel |
2 |
|
|
029 |
175-2601
|
Square keyway |
1 |
|
|
