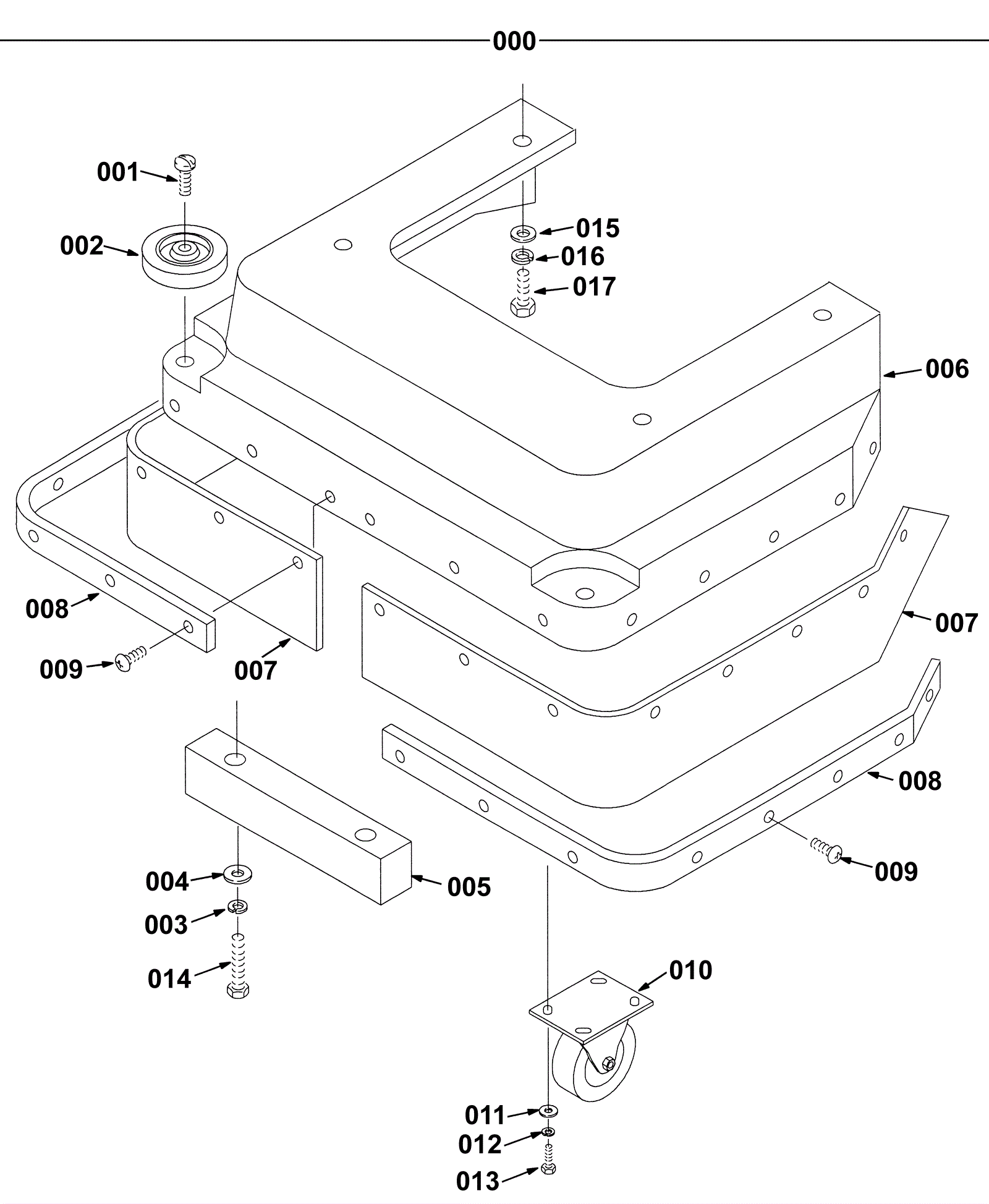

Skirt Assembly

#PartDescription ReqNotesAvailability
000 175-6651 20 inch (500mm) Teal skirt assembly 1 Assembly includes 001-014
001 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 2
002 175-0117 Guide wheel with bushing 2
003 999-0553 Washer 5/16 medium split lock stainless steel 4
004 999-0024 Washer 5/16 flat stainless steel 2
005 175-1041 Weight 1
006 175-6652 20 inch (500mm) Teal housing skirt 1
007 175-2974 Splash guard 2
008 175-1157 Splash guard strap 2 Strap
009 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 16
010 175-3496 Swivel caster 3 x 1-1/2 2
011 999-0016 Washer 1/4 flat plain finish 8
012 999-0632 Washer 1/4 split lock stainless steel 8
013 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
014 175-0955 Screw 5/16-18 x 2 1/2 2
015 999-0024 Washer 5/16 flat stainless steel 4 NOT included in 20 inch skirt assembly
016 999-0553 Washer 5/16 medium split lock stainless steel 4 NOT included in 20 inch skirt assembly
017 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4 NOT included in 20 inch skirt assembly
