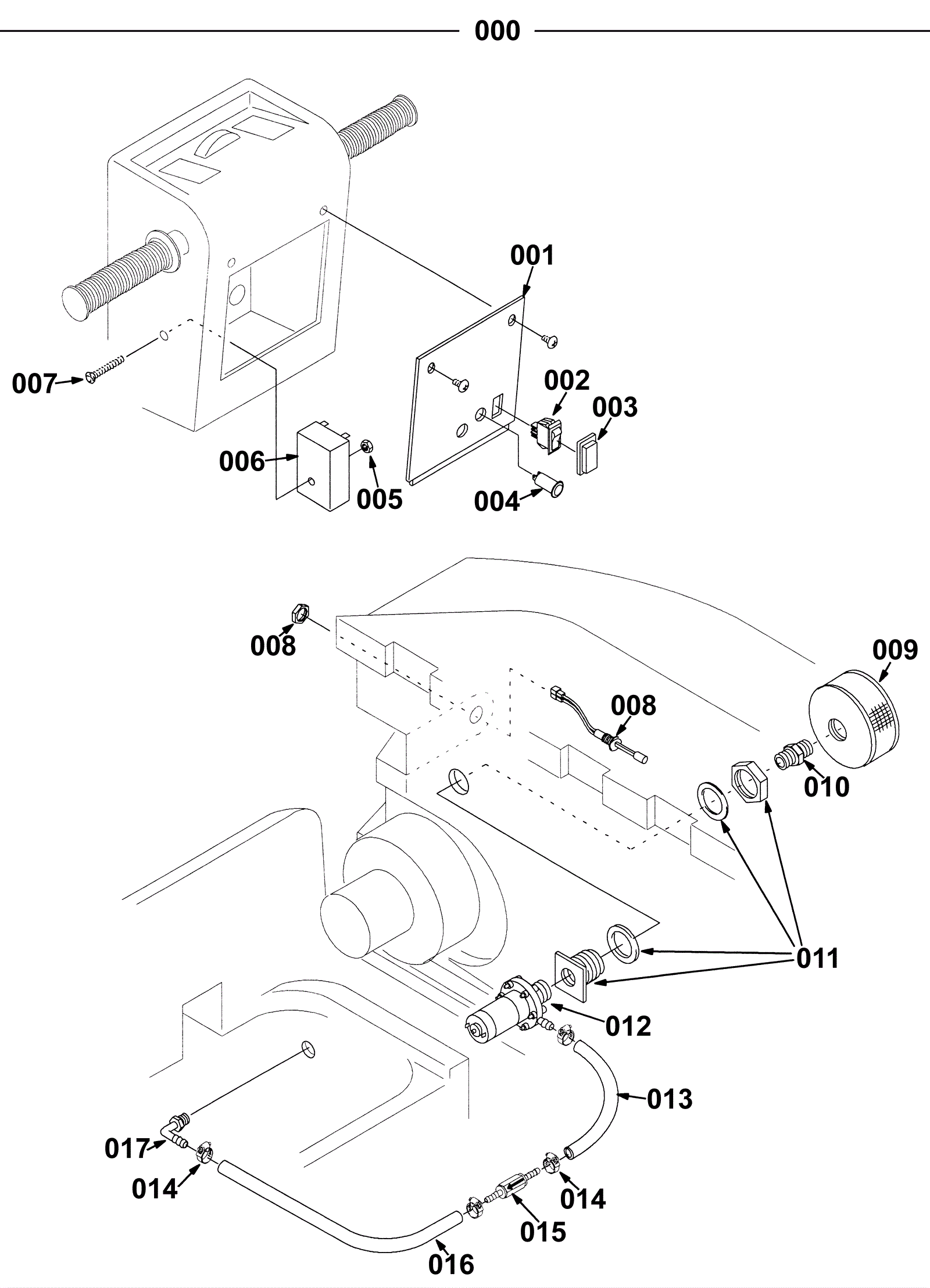

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-6663
|
Extended scrub (ES) recycle kit (OBSOLETE) |
1 |
Includes 001-017 and 175-3724 |
|
001 |
175-6664
|
Control panel cover (OBSOLETE) |
1 |
|
|
002 |
175-2847
|
Rocker switch |
1 |
|
|
003 |
175-2848
|
Rocker switch splash guard |
1 |
|
|
004 |
175-2849
|
Indicator light |
1 |
|
|
005 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
006 |
175-2845
|
Relay |
1 |
|
|
007 |
999-0449
|
Screw 10-24 x 1 1/2 flat head slotted zinc plated |
1 |
|
|
008 |
175-2835
|
Liquid level switch with nut |
1 |
|
|
009 |
175-2836
|
Screen filter (OBSOLETE) |
1 |
|
|
010 |
175-2837
|
3/4 inch nipple fitting (OBSOLETE) |
1 |
|
|
011 |
175-2838
|
Bulkhead fitting 3/4 inch (OBSOLETE) |
1 |
|
|
012 |
175-2840
|
24V solution pump |
1 |
|
|
013 |
175-4809
|
Wand pump hose |
1 |
|
|
014 |
175-6081
|
Hose clamp |
4 |
|
|
015 |
175-2842
|
Check valve |
1 |
|
|
016 |
175-5904
|
Hose 3/8 x 13 inch |
1 |
|
|
017 |
175-2844
|
90 degree elbow fitting |
1 |
|
|
N/S |
175-3724
|
Extended scrub wire harness (OBSOLETE) |
1 |
|
|
