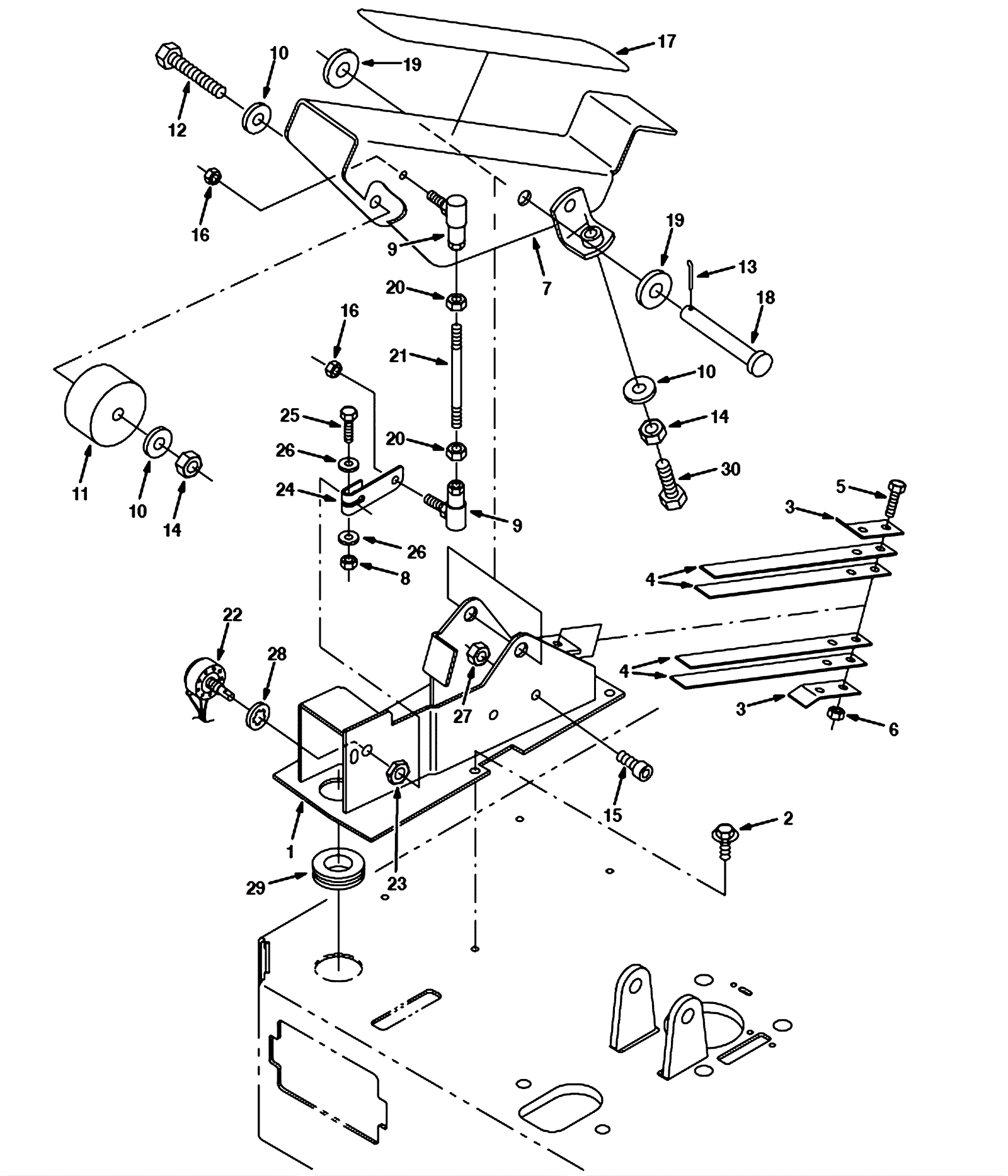

EZ RIDER Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3297 Control plate weldment (Tennant Industrial) $96.03 1 usually ships 5-16 days
2 175-3298 Bolt M6-1 x 12mm hex head $4.47 4 ships same day
3 175-3299 Spring retainer $16.83 2 usually ships 1-5 days
4 175-3300 Strip stainless $16.83 4 usually ships 1-5 days
5 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 ships same day
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
7 175-3301 Accelerator pedal weldment $73.15 1 usually ships 1-5 days
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
9 175-3302 Balljoint 1/4-28 $9.13 2 usually ships 5-16 days
10 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
11 175-3303 Spacer $7.26 1 usually ships 1-5 days
12 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 ships same day
13 175-3281 Cotter pin $2.42 1 usually ships 5-16 days
14 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
15 999-0802 Screw M8-1.25 x 16mm socket head $0.99 2 ships same day
16 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 2 ships same day
17 175-3307 Non-skid tread $5.83 1 usually ships 5-16 days
18 175-3280 Clevis pin $5.83 1 usually ships 5-16 days
19 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
20 999-0718 Nut 1/4-28 hex jam zinc plated $0.99 2 ships same day
21 175-3308 2 end threaded rod $28.71 1 usually ships 1-5 days
22 175-3309 Potentiometer $113.19 1 usually ships 5-16 days
23 175-2277 Nut hex head $3.30 1 usually ships 5-16 days
24 175-3310 Lever $18.59 1 usually ships 5-16 days
25 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
26 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
27 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
28 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
29 175-3311 Rubber grommet $4.95 1 usually ships 1-5 days
30 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 ships same day
