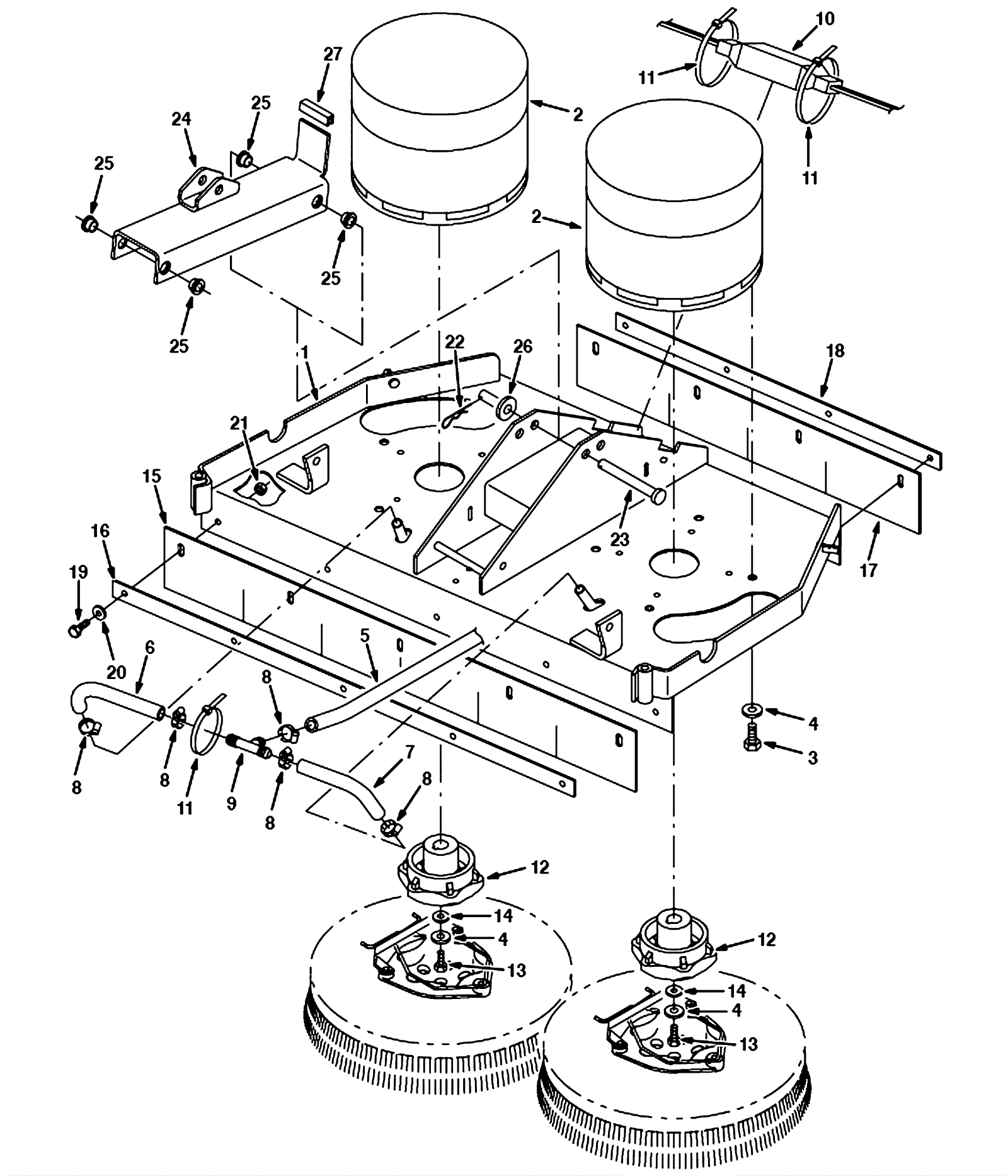

EZ RIDER Scrub Head Motor Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 275-5340 28 inch head kit (OBSOLETE) $690.80 1 usually ships 1-5 days
2 175-3325 Brush motor kit $1,404.26 2 usually ships 5-16 days
3 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 17 ships same day
5 175-3326 Vinyl hose $92.29 1 usually ships 1-5 days
6 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $29.23 1 usually ships 5-16 days
7 175-3328 Solution hose $70.84 1 usually ships 1-5 days
8 175-6081 Hose clamp $4.84 5 ships same day
9 175-3329 Plastic tee fitting $5.83 1 usually ships 5-16 days
10 275-2443 Wiring harness (OBSOLETE) $148.58 1 usually ships 5-16 days
11 175-2226 Nylon wire tie $3.30 3 ships same day
12 175-9525 Brush drive hub $372.32 2 ships same day
13 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
14 999-1407 Washer 5/16 belleville $3.04 2 ships same day
15 175-3330 Front skirt 28 inch $23.32 1 usually ships 5-16 days
16 175-3331 28 inch (700mm) front skirt retainer strap $34.87 1 usually ships 1-5 days
17 175-3332 Rear skirt 28 inch $14.08 1 usually ships 5-16 days
18 175-3333 28 inch (700mm) rear skirt retainer strap $31.57 1 usually ships 1-5 days
19 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
20 175-2236 Square keyway $3.30 2 usually ships 5-16 days
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 9 ships same day
22 175-2106 Cotter hair pin $3.30 1 ships same day
23 175-2116 Clevis pin $5.83 1 usually ships 5-16 days
24 175-3334 Lifting weldment $101.20 1 usually ships 1-5 days
25 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
26 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
27 175-3336 Rubber trim molding $17.49 1 usually ships 1-5 days
