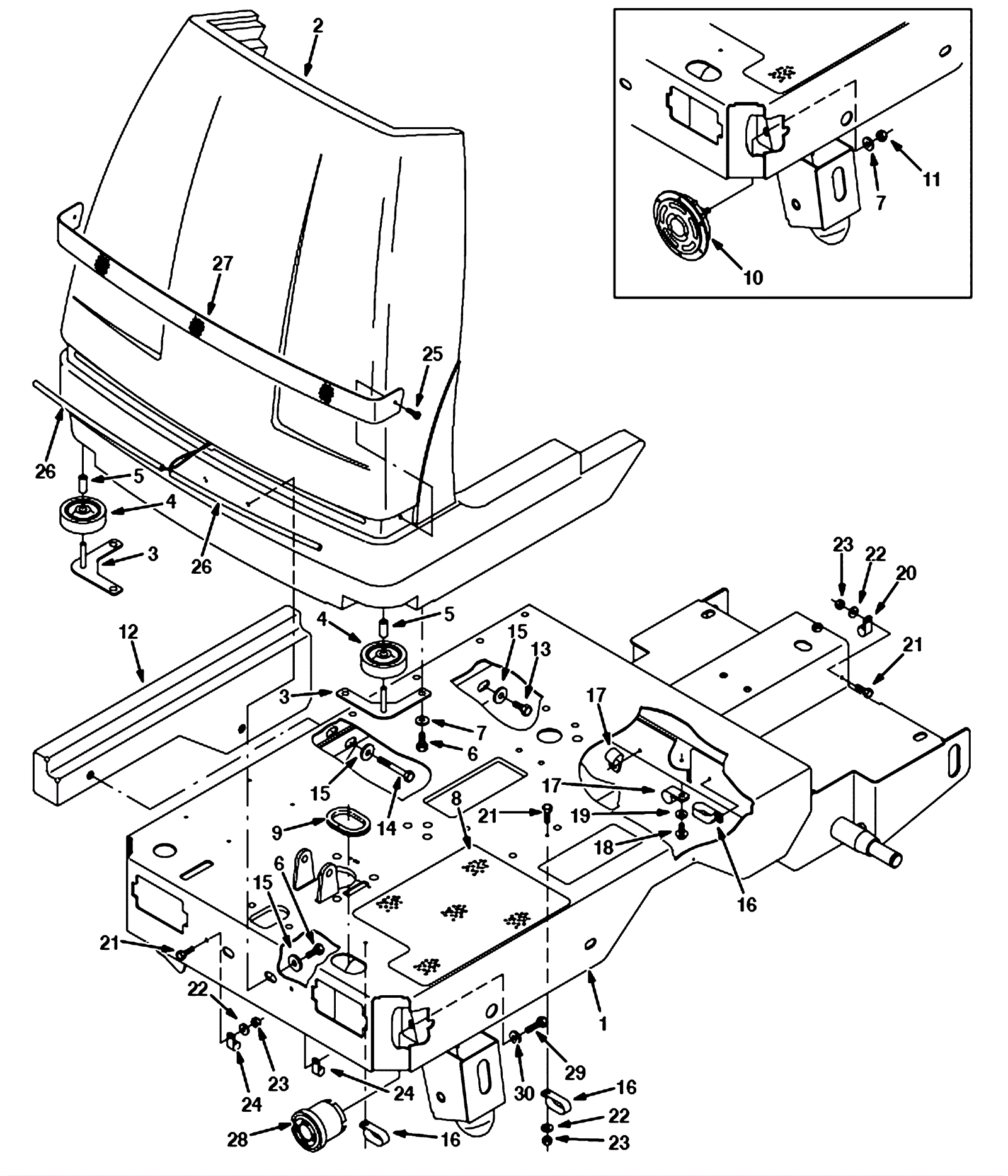

EZ RIDER Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-1963 Frame $1,705.55 1 usually ships 1-5 days
2 175-4910 Front shroud $803.88 1 usually ships 1-5 days
3 175-3155 Mounting wheel plate weldment $20.90 2 usually ships 5-16 days
4 175-3156 Bumper wheel $15.18 2 usually ships 5-16 days
5 175-4916 Sleeve $4.84 2 usually ships 5-16 days
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 8 ships same day
7 999-9097 Washer M8 flat stainless steel $0.99 5 ships same day
8 175-3158 Non-skid tread $24.97 1 usually ships 1-5 days
9 275-1964 Molding (OBSOLETE) $39.71 1 usually ships 1-5 days
10 175-3160 Horn $106.48 1 usually ships 5-16 days
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
12 175-4912 Plastic tank filler panel (OBSOLETE) Call for price 1 usually ships 1-5 days
13 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
14 175-3163 Screw M8-1.25 x 60mm hex head $3.30 1 usually ships 5-16 days
15 175-2367 Steel plated washer $2.97 2 usually ships 1-5 days
16 175-3171 Cable clamp $4.95 3 usually ships 1-5 days
17 175-2260 P clamp $3.96 2 usually ships 5-16 days
18 175-3166 Bolt M6-1 x 16mm hex head $3.96 3 usually ships 5-16 days
19 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
20 175-3168 P clamp $3.96 1 usually ships 5-16 days
21 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 5 ships same day
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
23 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 5 ships same day
24 175-3170 P clamp $3.08 2 usually ships 1-5 days
25 175-3223 Screw 12-16 x 1/2 pan head plastic $3.96 2 usually ships 1-5 days
26 275-2435 Light strip harness (OBSOLETE) $44.99 2 usually ships 1-5 days
27 275-2436 Screen (OBSOLETE) $61.93 1 usually ships 1-5 days
28 275-2437 Horn $160.38 1 usually ships 5-16 days
29 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 1 ships same day
30 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
