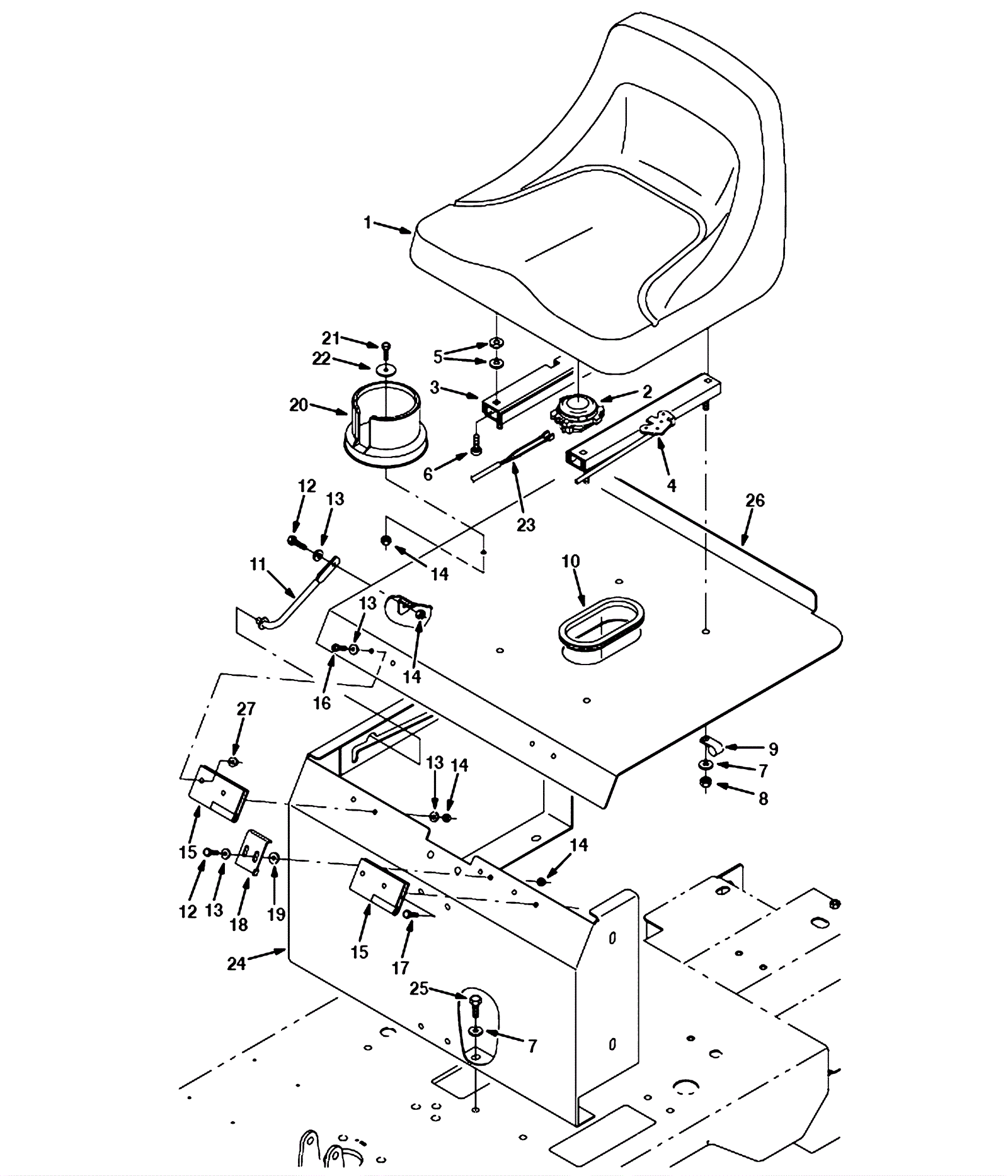

EZ RIDER Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9328 Seat kit (includes screw and spacer) $262.90 1 ships same day
2 175-3173 Seat switch $23.54 1 usually ships 1-5 days
3 175-3174 12 1/2 inch adjustable seat slide track $47.96 1 usually ships 1-5 days
4 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) $46.70 1 usually ships 5-16 days
5 175-3176 Washer 3/8 flat steel plated $2.42 8 ships same day
6 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
7 999-0024 Washer 5/16 flat stainless steel $1.34 12 ships same day
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
9 175-3179 P clamp $3.96 1 usually ships 5-16 days
10 275-4795 Molding trim $49.17 1 usually ships 1-5 days
11 175-3181 Safety support arm $53.90 1 usually ships 5-16 days
12 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 3 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 11 ships same day
14 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
15 175-3183 Hinge $53.35 2 usually ships 5-16 days
17 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
18 175-3186 Seat bracket lock (OBSOLETE) $18.37 1 usually ships 1-5 days
19 175-3187 Washer nylon $3.30 2 usually ships 5-16 days
20 175-3188 Cup holder $56.10 1 usually ships 5-16 days
21 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
22 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
23 175-3190 Seat harness $44.22 1 ships same day
24 275-2433 Support weldment (OBSOLETE) $432.08 1 usually ships 1-5 days
25 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
26 175-4917 Seat plate with labels $174.90 1 usually ships 1-5 days
27 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 4 ships same day
