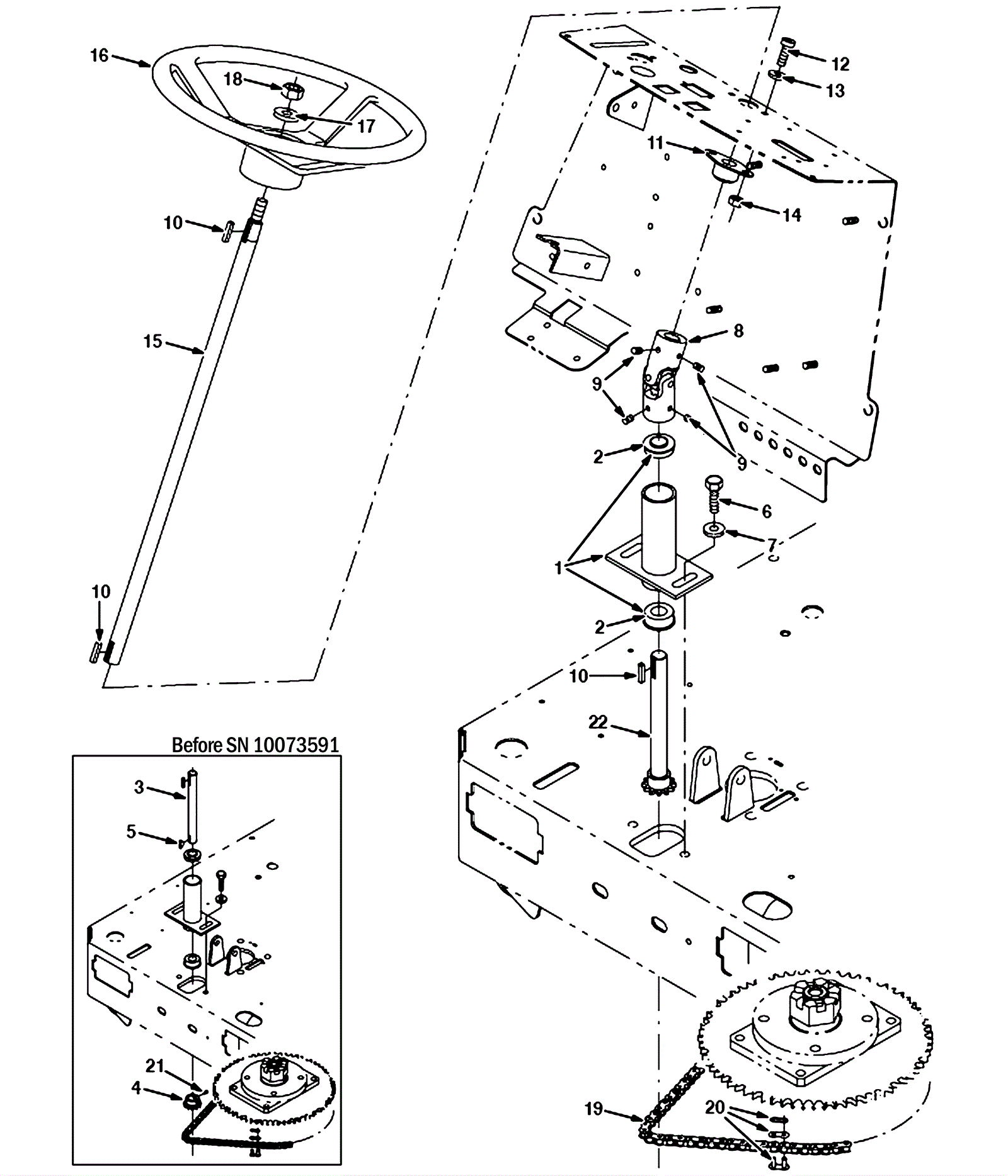

EZ RIDER Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4925 Steering housing assembly $195.14 1 usually ships 1-5 days
2 175-3195 Ball bearing $18.92 2 usually ships 5-16 days
3 175-3196 Steering shaft $129.47 1 (before SN 10073591) usually ships 5-16 days
4 175-3197 Sprocket $47.85 1 (before SN 10073591) usually ships 1-5 days
5 175-3198 Woodruff key $3.30 1 (before SN 10073591) usually ships 1-5 days
6 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 2 usually ships 1-5 days
7 175-2305 Washer $3.96 2 ships same day
8 275-5323 U joint $109.56 1 ships same day
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock $3.96 4 ships same day
10 175-3200 Square keyway $3.30 3 ships same day
11 175-3201 Flanged bearing $5.83 1 usually ships 5-16 days
12 175-3202 Screw M8-1.25 x 20mm $3.30 2 usually ships 5-16 days
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
15 175-3203 Upper steering shaft $211.75 1 usually ships 1-5 days
16 275-4653 Steering wheel $149.60 1 usually ships 5-16 days
17 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
18 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
19 175-3206 Roller chain $33.55 1 usually ships 5-16 days
20 175-3207 Master link $3.96 1 usually ships 5-16 days
21 175-9930 Screw 1/4-20 x 1/4 aluminum set $4.95 2 (before SN 10073591) usually ships 1-5 days
22 175-3196 Steering shaft $129.47 1 (after SN 10073591) usually ships 5-16 days
