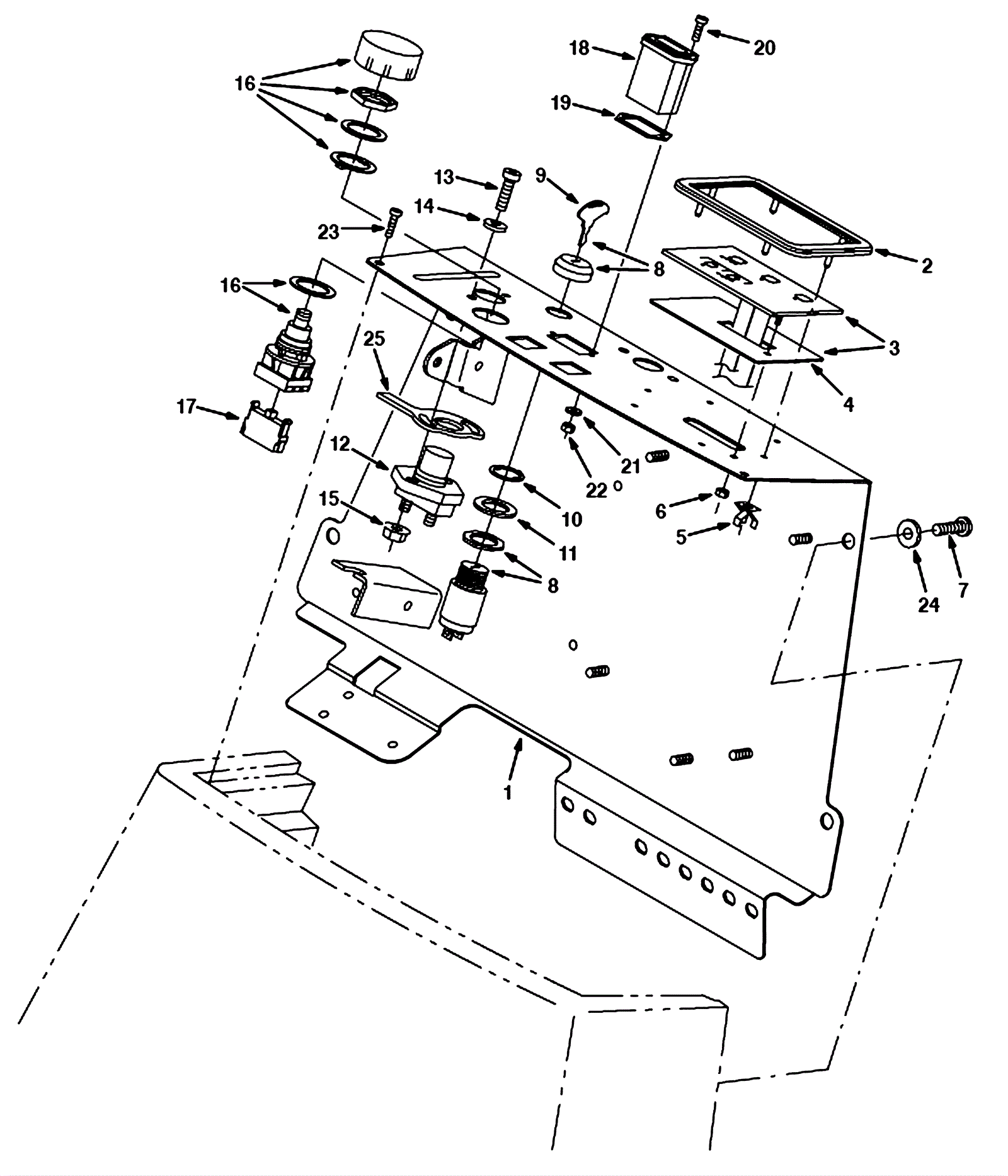

EZ RIDER Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1523 Panel weldment $213.18 1 usually ships 5-16 days
2 175-3210 Touch panel bezel $26.51 1 usually ships 5-16 days
3 275-2432 Touch panel assembly (OBSOLETE) $333.74 1 usually ships 1-5 days
4 N/A Not available Call for price 1 (Gasket) usually ships 3-26 days
5 175-6172 Receiver speed clip stud $3.19 6 usually ships 5-16 days
6 175-3224 Nut 6-32 hex lock $3.30 1 usually ships 5-16 days
7 175-3202 Screw M8-1.25 x 20mm $3.30 4 usually ships 5-16 days
8 175-3214 Key switch $85.36 1 usually ships 5-16 days
9 175-3215 Key (sold individually) $13.97 1 ships same day
10 175-3216 Washer $17.16 1 usually ships 1-5 days
11 175-3217 Washer .91b x 1.38d x .06 steel plated $3.96 1 usually ships 5-16 days
12 175-3218 Push switch SPST $24.09 1 usually ships 5-16 days
13 N/A Not available Call for price 2 Screw usually ships 3-26 days
14 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
15 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 2 ships same day
16 175-3220 Push switch $54.78 1 usually ships 5-16 days
17 175-3221 Switch contact $22.22 1 usually ships 5-16 days
18 175-2536 Hour meter $78.54 1 usually ships 5-16 days
19 175-2327 Gasket $4.29 1 usually ships 5-16 days
20 175-4933 Screw M3-.5 x 12mm pan head $2.42 2 usually ships 1-5 days
21 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
22 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
23 175-3223 Screw 12-16 x 1/2 pan head plastic $3.96 2 usually ships 1-5 days
24 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
25 N/A Not available Call for price 1 (Solution stop valve) usually ships 3-26 days
