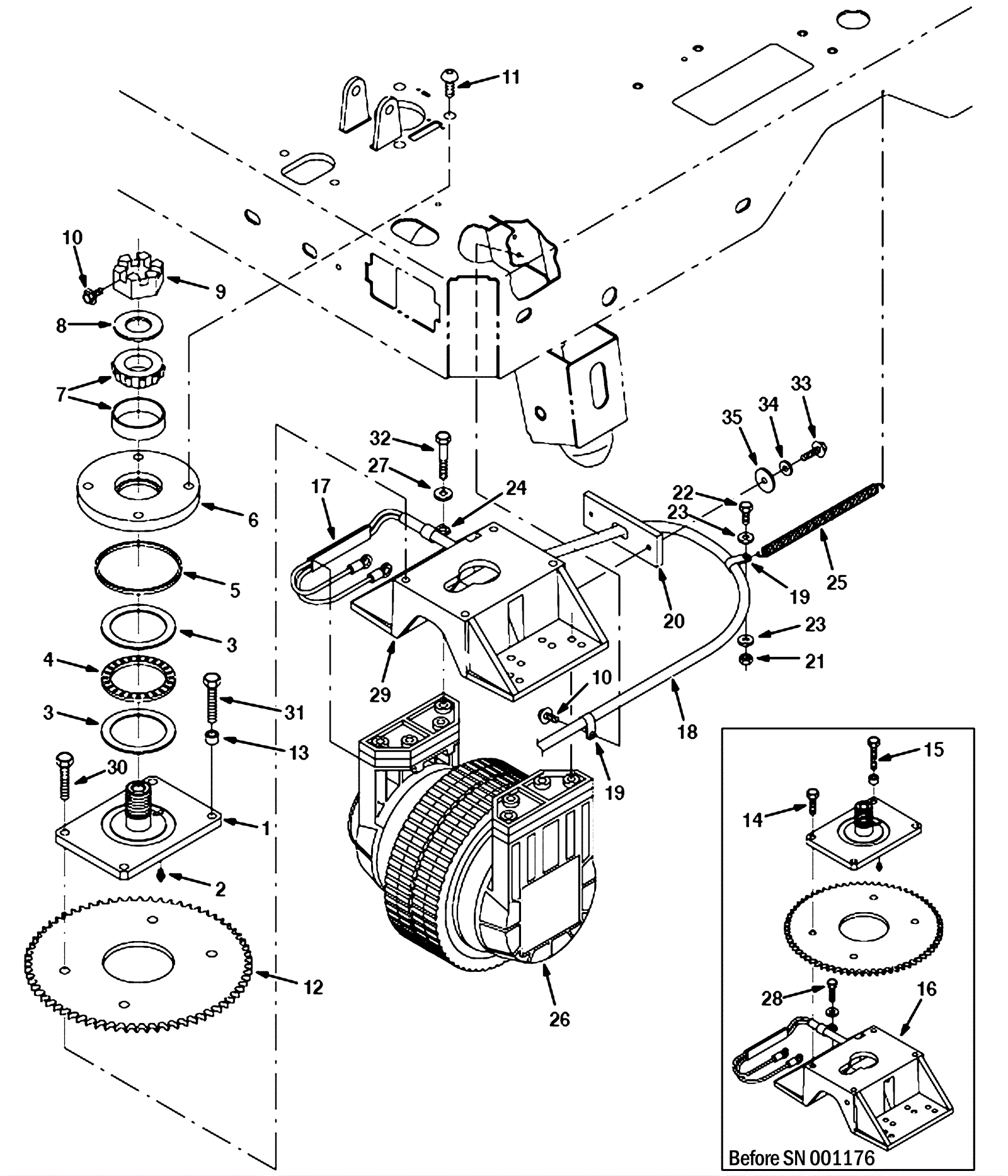

EZ RIDER Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3247 Swivel plate weldment $385.66 1 usually ships 1-5 days
2 275-2432 Touch panel assembly (OBSOLETE) $333.74 1 usually ships 1-5 days
3 175-3249 Washer thrust $6.60 2 usually ships 5-16 days
4 175-3250 Thrust bearing $21.45 1 usually ships 5-16 days
5 175-3251 Felt seal $7.92 1 usually ships 5-16 days
6 275-2433 Support weldment (OBSOLETE) $432.08 1 usually ships 1-5 days
7 175-3253 Bearing assembly cup/cone $97.35 1 usually ships 5-16 days
8 175-3254 Washer $6.60 1 usually ships 5-16 days
9 175-3255 Nut hexslot 1 1/4 x 12 $9.35 1 usually ships 1-5 days
10 175-3166 Bolt M6-1 x 16mm hex head $3.96 2 usually ships 5-16 days
11 175-3256 Screw M12-1.75 x 25mm button head $7.26 4 usually ships 1-5 days
12 175-3257 Drive sprocket $63.14 1 usually ships 1-5 days
13 175-2814 Spacer $5.83 1 usually ships 5-16 days
14 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 3 (before SN 001176) usually ships 1-5 days
15 175-3259 Screw M10-1.5 x 45mm hex head $3.96 1 (before SN 001176) usually ships 1-5 days
16 175-3260 Adapter plate repair kit (OBSOLETE) $217.80 1 (before SN 001176) usually ships 1-5 days
17 175-3261 PVC duct $23.65 1 usually ships 5-16 days
18 175-3262 Motor harness $94.05 1 usually ships 5-16 days
19 175-3170 P clamp $3.08 2 usually ships 1-5 days
20 175-4948 Strain relief flap $12.65 1 usually ships 5-16 days
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
23 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
24 175-3168 P clamp $3.96 1 usually ships 5-16 days
25 175-3263 Extension spring $21.89 1 usually ships 5-16 days
26 175-4950 Front wheel gearbox assembly $5,090.80 1 usually ships 5-16 days
27 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
28 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 8 (before SN 001176) ships same day
29 275-2748 Wheel adapter plate $208.56 1 (after SN 001177) usually ships 1-5 days
30 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 (after SN 001177) ships same day
31 175-3266 Bolt 10mm-1 1/2 x 50 hex head $3.08 1 (after SN 001177) usually ships 1-5 days
32 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 6 (after SN 001177) ships same day
33 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
34 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
35 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 2 ships same day
