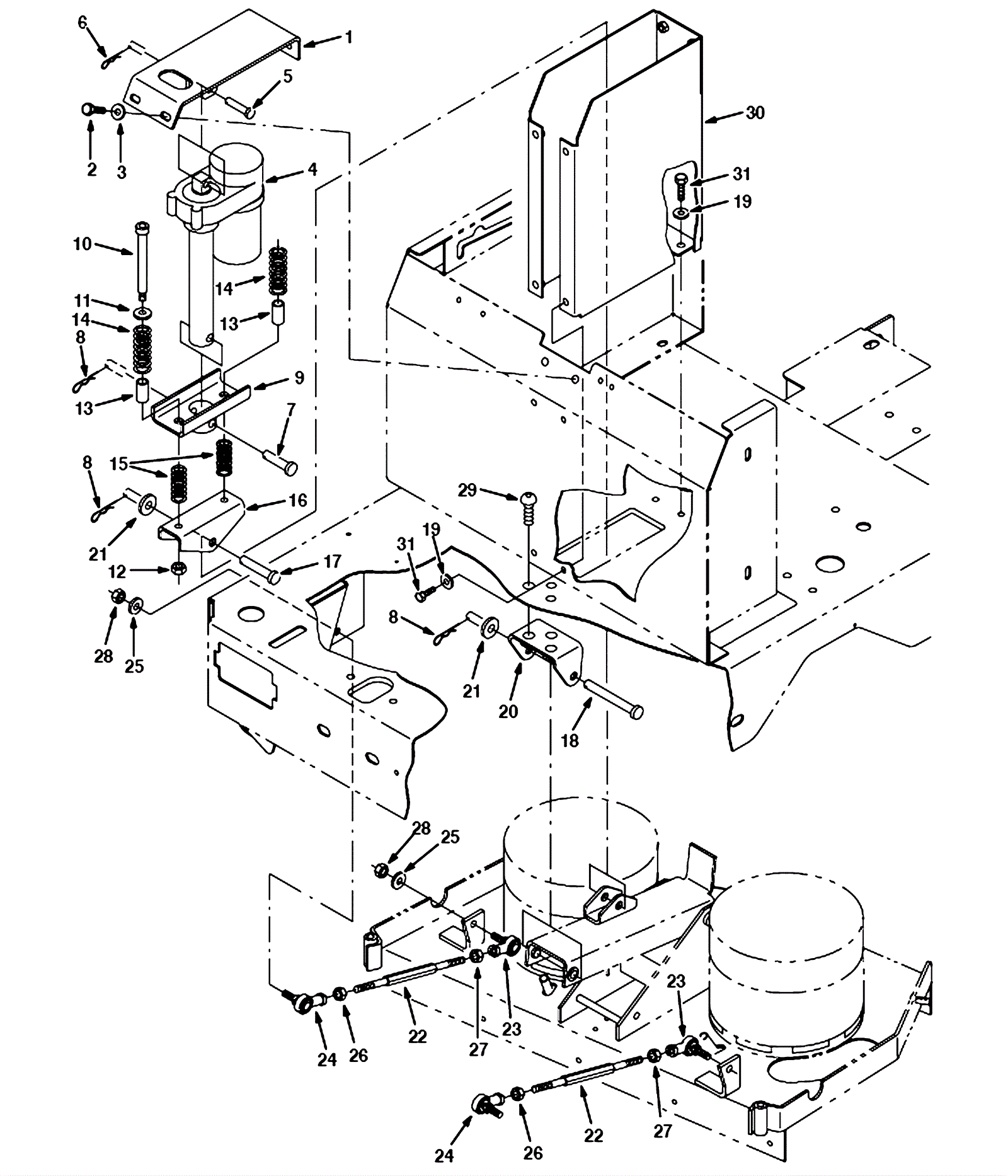

EZ RIDER Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3312 Mounting actuator plate weldment $209.33 1 usually ships 10-16 days
2 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 usually ships 12-18 days
4 175-3313 Actuator $489.39 1 usually ships 10-16 days
5 175-2592 Clevis Pin 0.37 D X 1.75 L $4.88 1 ships same day
6 175-2113 Cotter pin $3.04 1 ships same day
7 175-2382 Clevis pin $5.50 1 usually ships 10-16 days
8 175-2106 Cotter hair pin $3.42 3 ships same day
9 175-3314 Mounting actuator channel weldment $108.46 1 usually ships 1-5 days
10 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.45 2 usually ships 1-5 days
11 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
12 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
13 175-2442 Sleeve $7.37 2 usually ships 10-16 days
14 175-3315 Compression spring $8.25 2 usually ships 1-5 days
15 175-3316 Compression spring $5.83 2 usually ships 1-5 days
16 175-3317 Lift channel $49.83 1 usually ships 1-5 days
17 175-9603 Clevis pin $4.88 1 usually ships 10-16 days
18 175-2116 Clevis pin $6.05 1 usually ships 10-16 days
19 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
20 275-2431 Brush arm weldment (Tennant Industrial) $354.57 1 usually ships 1-5 days
21 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
22 175-3319 Threaded rod $62.59 2 ships same day
23 175-3320 Rod end left side $42.68 2 usually ships 10-16 days
24 175-3321 Rod end right side $42.68 2 usually ships 10-16 days
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
26 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
27 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 ships same day
28 175-3322 Nut 3/8-24 hex lock $5.50 4 usually ships 10-16 days
29 175-3256 Screw M12-1.75 x 25mm button head $7.48 3 usually ships 1-5 days
30 175-4972 Channel weldment support $105.27 1 usually ships 10-16 days
31 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
