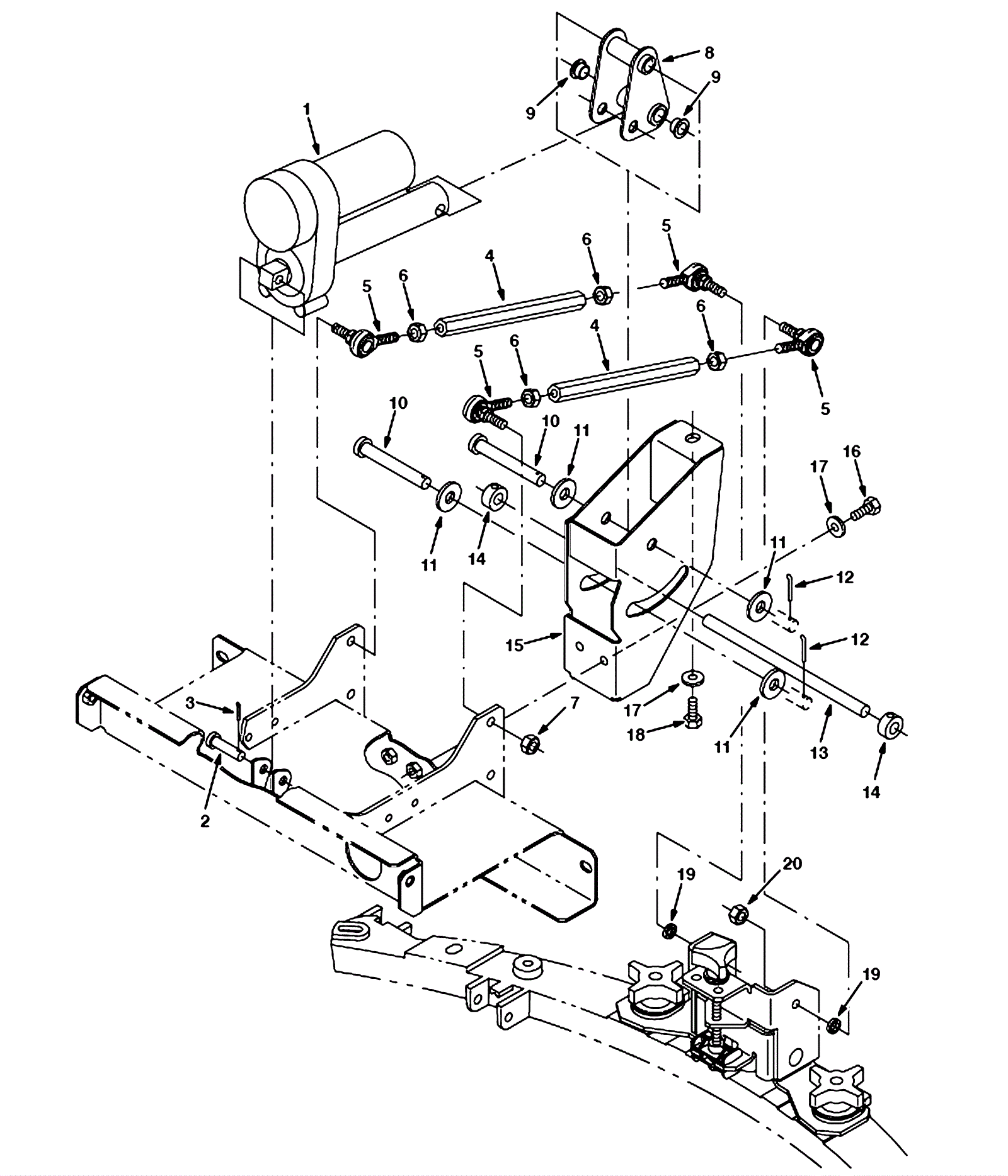

EZ RIDER Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7397 Actuator $456.17 1 usually ships 13-17 days
2 175-2111 Clevis pin $5.15 1 usually ships 13-17 days
3 175-6176 Cotter pin $3.30 1 ships same day
4 175-3448 Squeegee link upper tapped $409.86 2 usually ships 1-5 days
5 175-3449 Rod-end 3/8-24 $74.36 4 usually ships 13-17 days
6 999-0169 Nut 3/8-24 hex jam plain finish $0.99 4 ships same day
7 175-3322 Nut 3/8-24 hex lock $5.94 2 usually ships 13-17 days
8 175-3450 Actuator pivot weldment $124.74 1 usually ships 1-5 days
9 175-3335 Flanged bushing $16.94 2 usually ships 1-5 days
10 175-3280 Clevis pin $6.49 2 usually ships 13-17 days
11 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
12 175-3281 Cotter pin $3.30 2 usually ships 13-17 days
13 175-3451 Squeegee lift rod $22.77 1 usually ships 1-5 days
14 175-3452 Locking collar $12.43 2 usually ships 1-5 days
15 175-3453 Squeegee linkage guide weldment (OBSOLETE) $83.49 1 usually ships 1-5 days
16 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
17 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
18 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
19 175-3454 Spacer stainless steel $5.50 2 usually ships 13-17 days
20 175-3455 Nut 3/8-24 hex lock $4.88 2 usually ships 13-17 days
