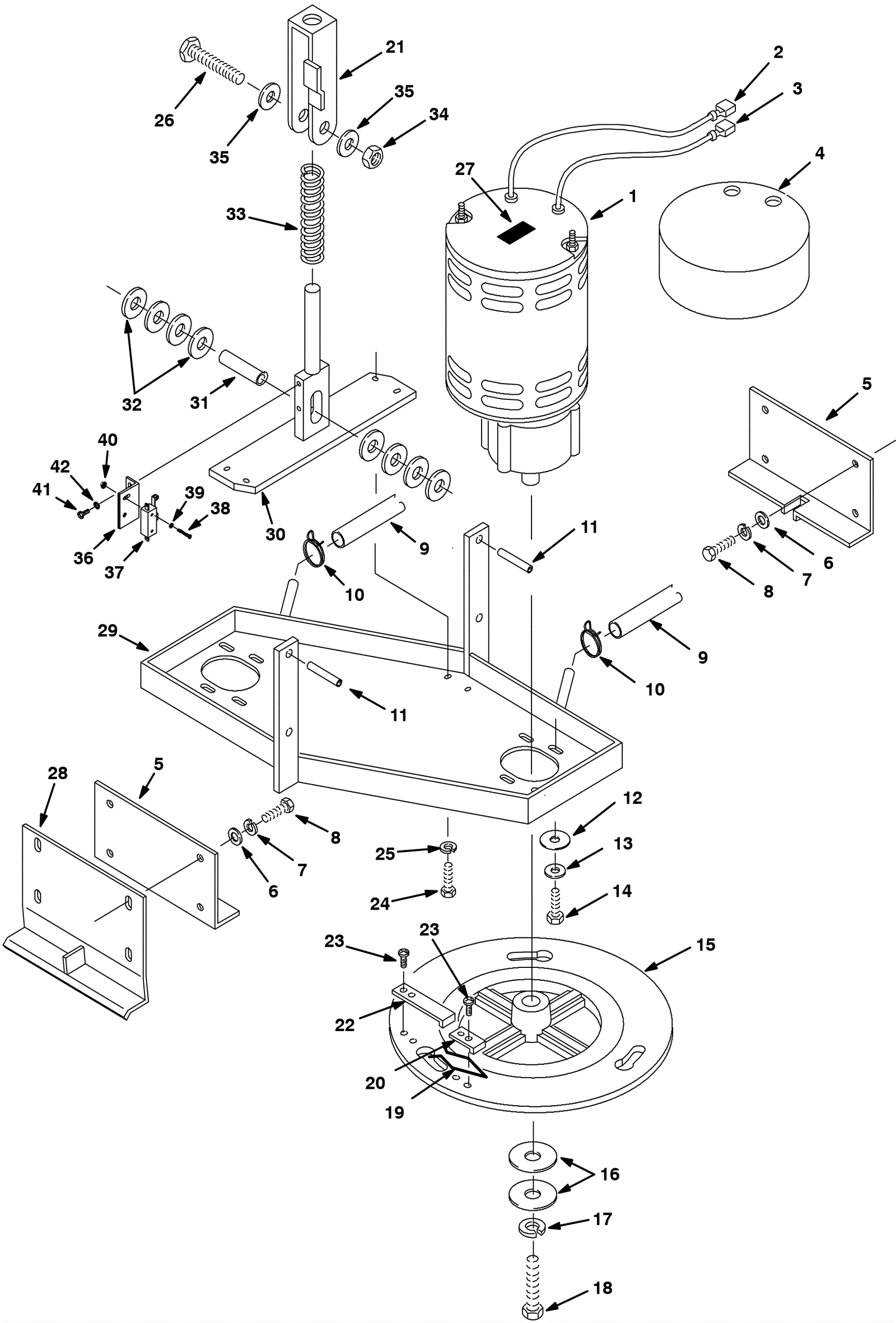

SPEEDSCRUB 2601 Brush Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-2599 24V brush motor with gearbox $1,682.01 2 (includes 1b-1e) (OEM) usually ships 5-16 days
1b 175-7927 Gearbox $975.15 1 usually ships 1-5 days
1c 175-3028 Brush card assembly $313.39 1 usually ships 5-16 days
1d 175-2600 Carbon brush $33.88 4 ships same day
1e 175-2601 Square keyway $3.96 1 usually ships 5-16 days
1f 991-8524 36V 1.0HP brush motor assembly with gear box $1,044.51 1 (NON-OEM) usually ships 5-16 days
2 175-3032 Positive terminal ring $6.27 1 usually ships 1-5 days
3 175-3032 Positive terminal ring $6.27 1 usually ships 1-5 days
4 175-2598 Brush motor cover $44.55 2 usually ships 5-16 days
5 175-3033 Guide plate $159.17 2 usually ships 1-5 days
6 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 8 ships same day
7 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
9 175-5592 Hose 3/8 x 5/8 x 9 inch $26.07 1 usually ships 5-16 days
10 175-3671 Hose clamp $3.96 2 ships same day
11 175-2606 Roll pin $4.07 4 usually ships 1-5 days
12 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
13 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
14 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
15 175-2609 Drive plate $66.00 2 ships same day
16 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
17 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
18 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
19 175-2612 Spring clip $3.96 2 usually ships 5-16 days
20 175-2611 Brush plate clamp $14.08 2 usually ships 5-16 days
21 175-7900 Spring bracket $68.31 1 usually ships 1-5 days
22 175-3034 Driver release stop $21.56 2 ships same day
23 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc $3.96 8 ships same day
24 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
25 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
26 175-3031 Screw 3/8-16x2 $4.29 1 usually ships 1-5 days
27 175-0287 Acrylic foam tape 1 inch x 1 foot $15.07 2 usually ships 5-16 days
28 175-3037 Front lip skirt (OBSOLETE) $39.66 1 usually ships 5-16 days
29 175-3038 Motor mount bracket (OBSOLETE) $254.98 1 usually ships 1-5 days
30 175-9499 Spring mount bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
31 175-3040 Bushing $4.84 1 usually ships 1-5 days
32 175-3041 Washer flat $2.38 8 usually ships 1-5 days
33 175-3042 Spring $3.83 1 usually ships 1-5 days
34 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
35 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
36 175-9692 Brush switch bracket (OBSOLETE) $5.94 1 usually ships 1-5 days
37 175-2049 25amp roller switch (OBSOLETE) $18.37 1 usually ships 5-16 days
38 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
39 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
40 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
41 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 2 ships same day
42 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
