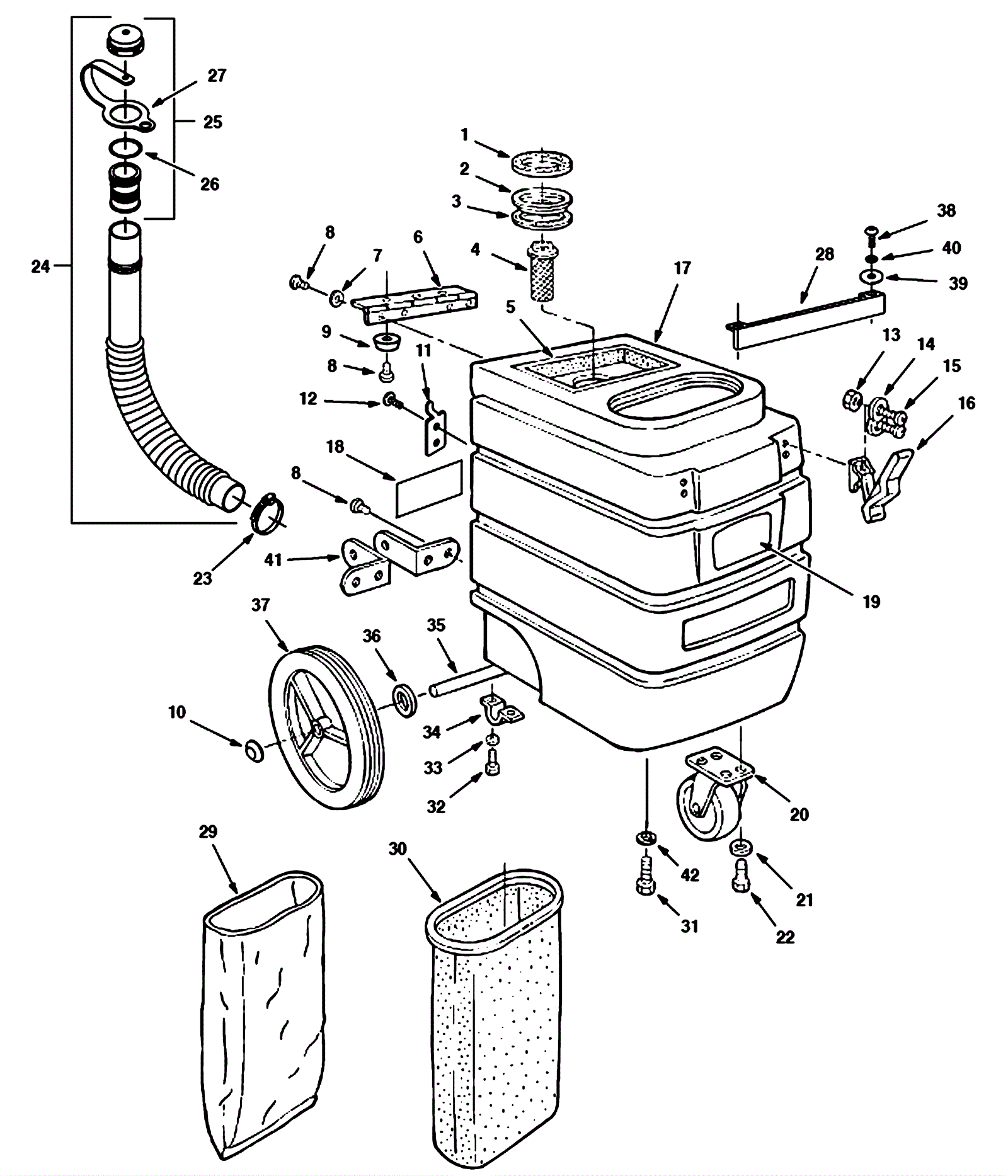

V-WD-15 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9013 Float gasket $18.04 1 ships same day
2 175-1548 Float plate $51.37 1 ships same day
3 175-9013 Float gasket $18.04 1 ships same day
4a 175-2642 Shut-off float $115.06 1 (OEM) usually ships 5-16 days
4b 991-5136 Shut-off float $33.33 1 (NON-OEM) ships same day
5 175-9015 Tank foam $28.71 1 ships same day
6 175-1550 Hinge $24.86 1 usually ships 5-16 days
7 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
8 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 11 ships same day
9 175-1555 Bumper $5.50 2 ships same day
10 175-6097 Hub cap $5.50 2 ships same day
11 175-5549 Drain hose hanger bracket $10.23 1 usually ships 5-16 days
12 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
13 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
14 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
15 175-5326 Screw 4 x 45/64 x 20 pan head stainless steel $3.96 4 usually ships 5-16 days
16a 375-7802 Latch $41.03 2 (OEM) usually ships 5-16 days
16b 991-8561 Rubber draw latch with keeper $27.63 2 (NON-OEM) ships same day
17 275-9941 Tank $831.71 1 (includes 18) usually ships 5-16 days
18 175-9495 Warning decal $10.34 1 usually ships 1-5 days
19a 275-9770 Dual logo decal (Tennant Industrial) $8.17 1 usually ships 1-5 days
19b 275-9771 TCO small decal $27.39 1 usually ships 1-5 days
20 175-0888 4 inch swivel caster wheel $63.36 1 ships same day
21 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
22 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
23 997-2000 Hose clamp $2.37 1 ships same day
24a 175-1535 Drain hose assembly $106.37 1 (OEM) (includes 25a, 26-27) ships same day
24b 991-1907 22 inch molded hose with drain cap $40.18 1 (NON-OEM) ships same day
25a 175-4214 Drain plug assembly $20.35 1 (OEM) (includes 26 and 27) ships same day
25b 991-3028 Drain plug assembly $13.43 1 (NON-OEM) ships same day
26 175-5804 O-ring $11.77 1 ships same day
27 175-4214 Drain plug assembly $20.35 1 ships same day
28 175-1556 Tank support bracket $54.45 1 usually ships 5-16 days
29 175-1531 Paper bag (pkg of 10) $29.37 1 ships same day
30 175-1532 Cloth filter bag $87.12 1 usually ships 5-16 days
31 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
32 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
33 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
34 175-6098 Axle bracket $18.15 2 usually ships 5-16 days
35 175-5547 Axle $20.79 1 usually ships 5-16 days
36 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
37 175-1621 10 inch wheel (gray) $55.88 2 ships same day
38 275-9944 Screw 1/4-20 x 1 1/4 truss head stainless steel $3.43 2 usually ships 1-5 days
39 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 2 ships same day
40 175-4544 Washer M6 locking $4.09 2 ships same day
41 175-1551 Bracket $25.96 2 usually ships 5-16 days
42 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
