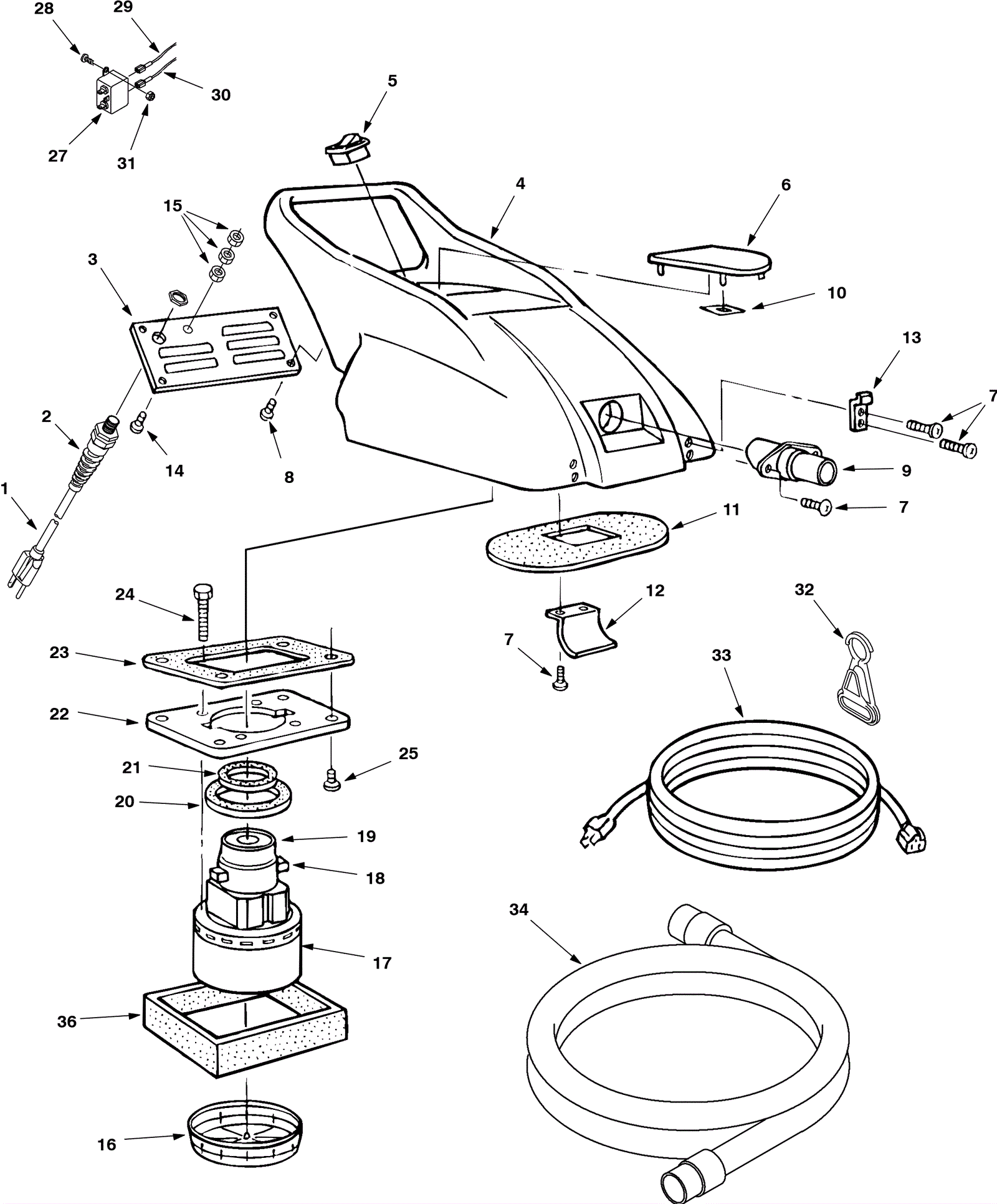

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-1522
|
16/3 pigtail cord 18 inch |
$48.18
|
1 |
|
usually ships 10-16 days |
2 |
175-0001
|
Strain relief |
$12.65
|
1 |
|
ships same day |
3 |
175-1524
|
Rear cover plate |
$32.12
|
1 |
|
usually ships 10-16 days |
4 |
475-2514
|
HANDLE, HSNG, RM-CPHG, AFMKT [WD-15] |
$414.15
|
1 |
|
usually ships 10-16 days |
5 |
175-1008
|
Rocker switch |
$30.91
|
1 |
|
ships same day |
6 |
175-1526
|
Air vent cover |
$11.44
|
1 |
|
usually ships 10-16 days |
7 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
$0.99
|
8 |
|
ships same day |
8 |
999-0999
|
Screw 10-24 x 3/8 truss head phillips stainless steel |
$1.43
|
4 |
|
ships same day |
9 |
175-0050
|
Hose adapter |
$10.89
|
1 |
|
ships same day |
10 |
175-1552
|
Push-on nut |
$5.28
|
4 |
|
usually ships 10-16 days |
11 |
175-0884
|
Cover gasket |
$23.54
|
1 |
|
ships same day |
12 |
175-1528
|
Air deflector bracket |
$40.04
|
1 |
|
usually ships 10-16 days |
13a |
375-7802
|
Latch |
$41.03
|
2 |
(OEM) |
usually ships 10-16 days |
13b |
991-8561
|
Rubber draw latch with keeper |
$27.63
|
2 |
(NON-OEM) |
usually ships 14-21 days |
14 |
999-1008
|
Screw 10-32 x 3/4 round head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
15 |
999-0356
|
Nut 10-24 lock stainless steel |
$0.99
|
3 |
|
ships same day |
16 |
991-5119
|
Vacuum motor filter |
$1.80
|
1 |
|
usually ships 12-13 days |
17a |
175-9018
|
120V 2 stage vacuum motor peripheral |
$364.10
|
1 |
(includes 18a, 19) |
ships same day |
17b |
175-1543
|
Vacuum motor 240V |
$360.14
|
1 |
(includes 18b, 19) |
usually ships 10-16 days |
18a |
175-0251
|
Carbon brush (pkg of 2) |
$39.05
|
1 |
(after SN 10603871 |
usually ships 10-16 days |
18b |
175-0052
|
Carbon brush set |
$44.55
|
1 |
|
ships same day |
19 |
991-1220
|
Plastic fan cover (for plastic covered brushes) |
$17.87
|
1 |
|
ships same day |
20 |
175-0053
|
Gasket |
$8.14
|
1 |
|
ships same day |
21 |
175-9012
|
Top gasket |
$17.05
|
1 |
|
ships same day |
22 |
175-1544
|
Mounting plate |
$32.01
|
1 |
|
usually ships 10-16 days |
23 |
175-9014
|
Mounting gasket |
$14.30
|
1 |
|
ships same day |
24 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
$0.99
|
4 |
|
ships same day |
25 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
$0.99
|
4 |
|
ships same day |
27a |
375-1652
|
Noise filter kit |
$69.08
|
1 |
(includes 27b-31) (after 10486027) (EMC model) |
usually ships 10-16 days |
27b |
175-3911
|
Samil filter |
$74.14
|
1 |
(after SN 10486027) (EMC model) |
usually ships 1-5 days |
28 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
$0.99
|
2 |
(after 10486027) (EMC model) |
ships same day |
29 |
475-0304
|
WIRE, 18GA 08.OL BLK .25QF /.25QF |
$4.49
|
1 |
(after 10486027) (EMC model) |
usually ships 10-16 days |
30 |
475-0274
|
WIRE, 18GA 08.0L WHITE .25QF /.25QF |
$4.22
|
1 |
(after 10486027) (EMC model) |
usually ships 10-16 days |
31 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
$1.76
|
2 |
(after 10486027) (EMC model) |
ships same day |
32 |
175-0236
|
Cord belt clip |
$10.23
|
1 |
|
ships same day |
33a |
175-6091
|
16/3 extension cord 50 foot (yellow) |
$70.68
|
1 |
(OEM) |
ships same day |
33b |
991-5002
|
16/3 extension cord 50 foot (yellow) |
$48.73
|
1 |
(NON-OEM) |
ships same day |
33c |
991-5006
|
16/3 replacement power cord 50 foot (yellow) |
$49.95
|
1 |
(NON-OEM) |
ships same day |
33d |
991-5007
|
18/3 replacement power cord 50 foot (black) |
$32.10
|
1 |
(NON-OEM) |
ships same day |
34 |
175-2635
|
Vacuum hose 1 1/2 x 10 foot |
$136.18
|
1 |
|
ships same day |
36 |
175-9016
|
Acoustic foam |
$15.73
|
1 |
|
ships same day |
