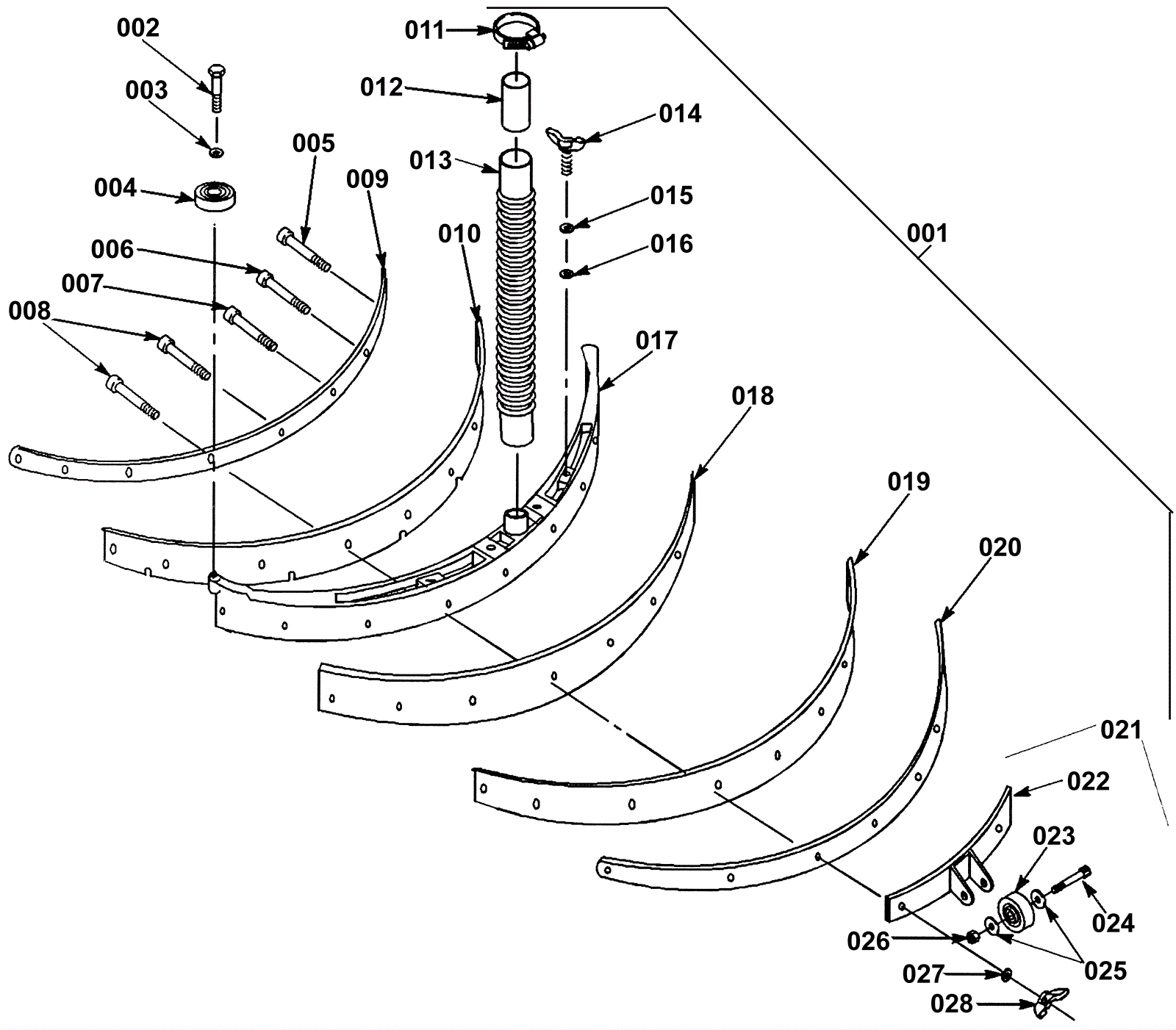

SM-16909 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5160 26 inch (600mm) squeegee assembly (OBSOLETE) $462.00 1 (includes 002-028) usually ships 1-5 days
002 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
003 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
004 175-0117 Guide wheel with bushing $9.90 2 ships same day
005 999-0604 Screw 1/4-20 x 1 1/2 carriage head stainless steel $0.99 2 ships same day
006 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 2 ships same day
007 999-0606 Screw 1/4-20 x 2 1/2 carriage head stainless steel $1.65 2 ships same day
008 999-0607 Screw 1/4-20 x 3 carriage head stainless steel $3.30 2 ships same day
009 175-5153 Front retainer strip (OBSOLETE) $43.56 1 usually ships 1-5 days
010 175-6669 Squeegee blade 37 inch gum rubber front $35.64 1 usually ships 10-16 days
011 175-2057 Hose clamp $5.83 1 usually ships 1-5 days
012 175-6667 Squeegee hose sleeve (OBSOLETE) $11.33 1 usually ships 1-5 days
013 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch $52.47 1 ships same day
014 999-1676 Screw 1/2-13 x 1 wing $35.79 2 usually ships 1-5 days
015 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
016 175-5149 Nylon washer $3.43 2 usually ships 1-5 days
017 175-5148 Squeegee weldment $1,461.90 1 usually ships 1-5 days
018 175-6670 Squeegee blade 40 inch gum rubber rear (tan) $83.71 1 usually ships 10-16 days
019 175-6671 Squeegee back-up blade neoprene $48.84 1 ships same day
020 175-5152 Squeegee band (OBSOLETE) $58.96 1 usually ships 1-5 days
021 175-6674 Squeegee wheel kit (OBSOLETE) $31.57 1 (includes 022-028) usually ships 1-5 days
022 175-6675 Squeegee wheel bracket (OBSOLETE) $30.47 1 usually ships 1-5 days
023 991-2013 Wheel $8.70 1 ships same day
024 175-3719 Screw 3/8 x 1 1/4 shoulder $6.05 1 ships same day
025 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
026 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
027 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
028 999-0603 Nut 1/4-20 wing stainless steel $7.33 8 ships same day
N/S 175-5161 26 inch squeegee blade kit $88.22 1 (includes 010, 018, and 019) ships same day
