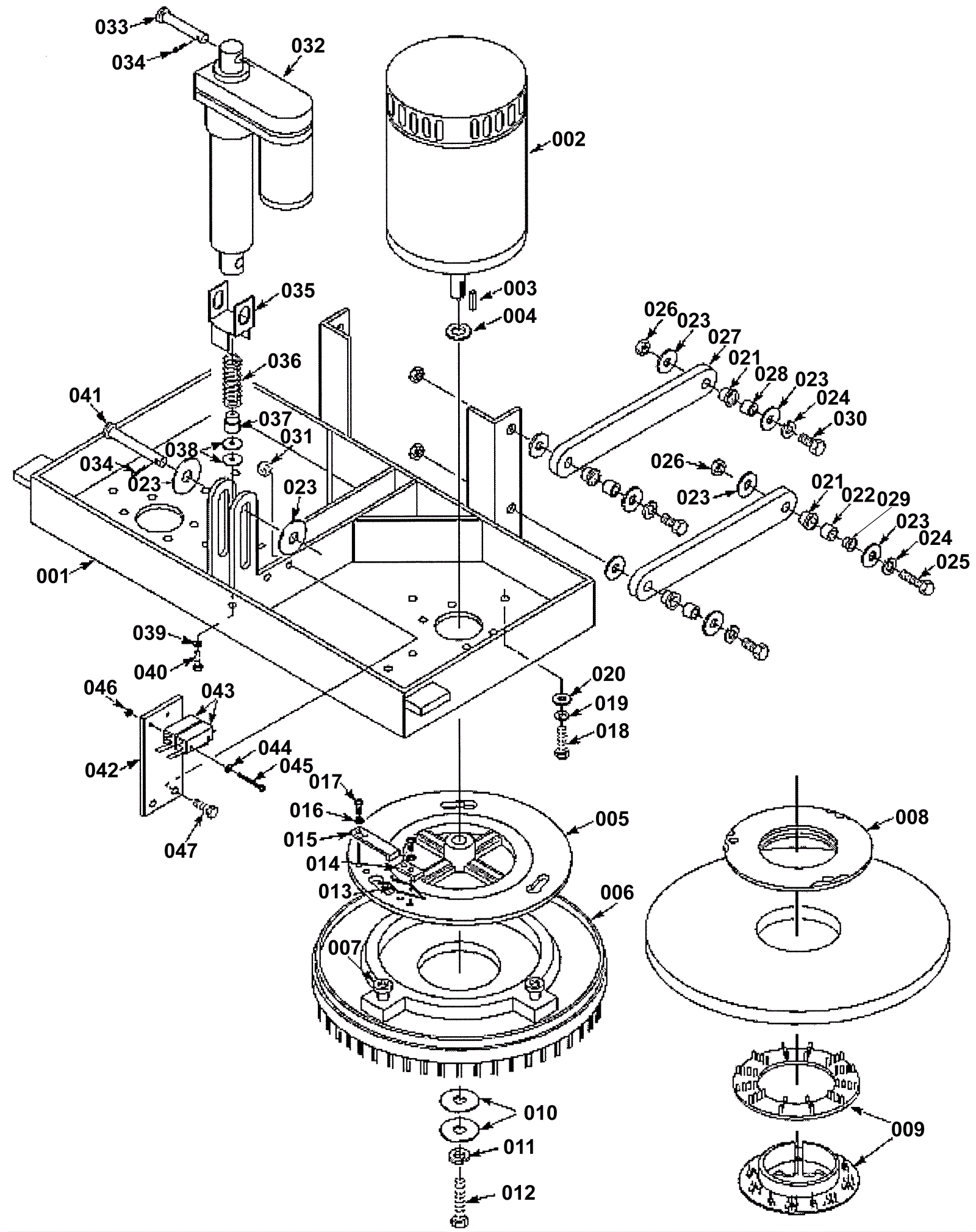

TUFFSCRUB 3300 Brush Motor/Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Brush motor mount bracket usually ships 3-26 days
002a N/A Not available Call for price 2 36V motor usually ships 3-26 days
002b 175-2600 Carbon brush $30.80 4 ships same day
002c 175-0369 Brush board assembly (OBSOLETE) $85.30 1 usually ships 1-5 days
003 175-2601 Square keyway $3.60 2 usually ships 5-16 days
004 175-1437 Spacer $8.60 2 ships same day
005 175-2609 Drive plate $60.00 2 ships same day
006a 175-5693 17 inch rider pad driver (OBSOLETE) $259.00 1 includes 006b-d usually ships 1-5 days
006b 175-2627 Lugs with scews (set of 3) $24.57 2 usually ships 5-16 days
006c 175-2630 Pad holder base plate $30.26 2 usually ships 5-16 days
006d 991-2209 Split retainer - pad holder ring (OBSOLETE) $19.98 2 usually ships 5-16 days
010 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
011 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
012 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
013 175-2612 Spring clip $3.60 2 usually ships 5-16 days
014 175-2611 Brush plate clamp $12.80 2 usually ships 5-16 days
015 175-3034 Driver release stop $19.60 2 ships same day
016 999-0053 Washer #10 split lock plain finish $0.99 8 ships same day
017 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 8 ships same day
018 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
019 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
020 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
021 N/A Not available Call for price 8 Flange bearing usually ships 3-26 days
022 175-5695 Bushing (OBSOLETE) $9.70 2 usually ships 1-5 days
023 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 18 ships same day
024 999-0126 Washer 1/2 split lock $1.28 8 ships same day
025 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel $3.74 2 ships same day
026 999-0050 Nut 1/2-13 hex jam plain finish $0.99 8 ships same day
027 175-5696 Pivot arm head (OBSOLETE) $49.40 4 usually ships 1-5 days
028 175-2785 Bushing $2.88 6 usually ships 1-5 days
029 175-5697 Bronze bearing (OBSOLETE) $2.16 2 usually ships 1-5 days
031 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
032 175-5074 Linear actuator (OBSOLETE) $689.00 1 usually ships 1-5 days
033 175-5083 Clevis pin $5.00 1 usually ships 1-5 days
034 175-5080 Cotter pin $3.00 2 ships same day
035 175-5698 Pressure spring brush bracket (OBSOLETE) $18.90 1 usually ships 1-5 days
036 175-5699 Compression spring $12.90 1 usually ships 1-5 days
037 175-5700 Brush pressure spring retainer (OBSOLETE) $18.70 1 usually ships 1-5 days
038 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
039 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
040 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
041 175-5790 Clevis pin (OBSOLETE) $4.30 1 usually ships 1-5 days
042 175-5701 Limit switch mount plate (OBSOLETE) $28.40 1 usually ships 1-5 days
043 175-6532 Snap switch $13.10 2 usually ships 5-16 days
044 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
045 N/A Not available Call for price 2 Screw 6-32 x 2-1/4 phillips pan head zinc usually ships 3-26 days
046 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
047 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
N/S 996-1049 Polypropelene scrubbing brush $250.00 2 optional usually ships 1-5 days
N/S 996-1051 Extra heavy grit stripping brush - 46 grit (set of 2) $615.20 1 optional usually ships 5-16 days
N/S 996-1052 Extra heavy grit stripping brush - 46 grit (set of 2) $609.00 1 optional usually ships 1-5 days
