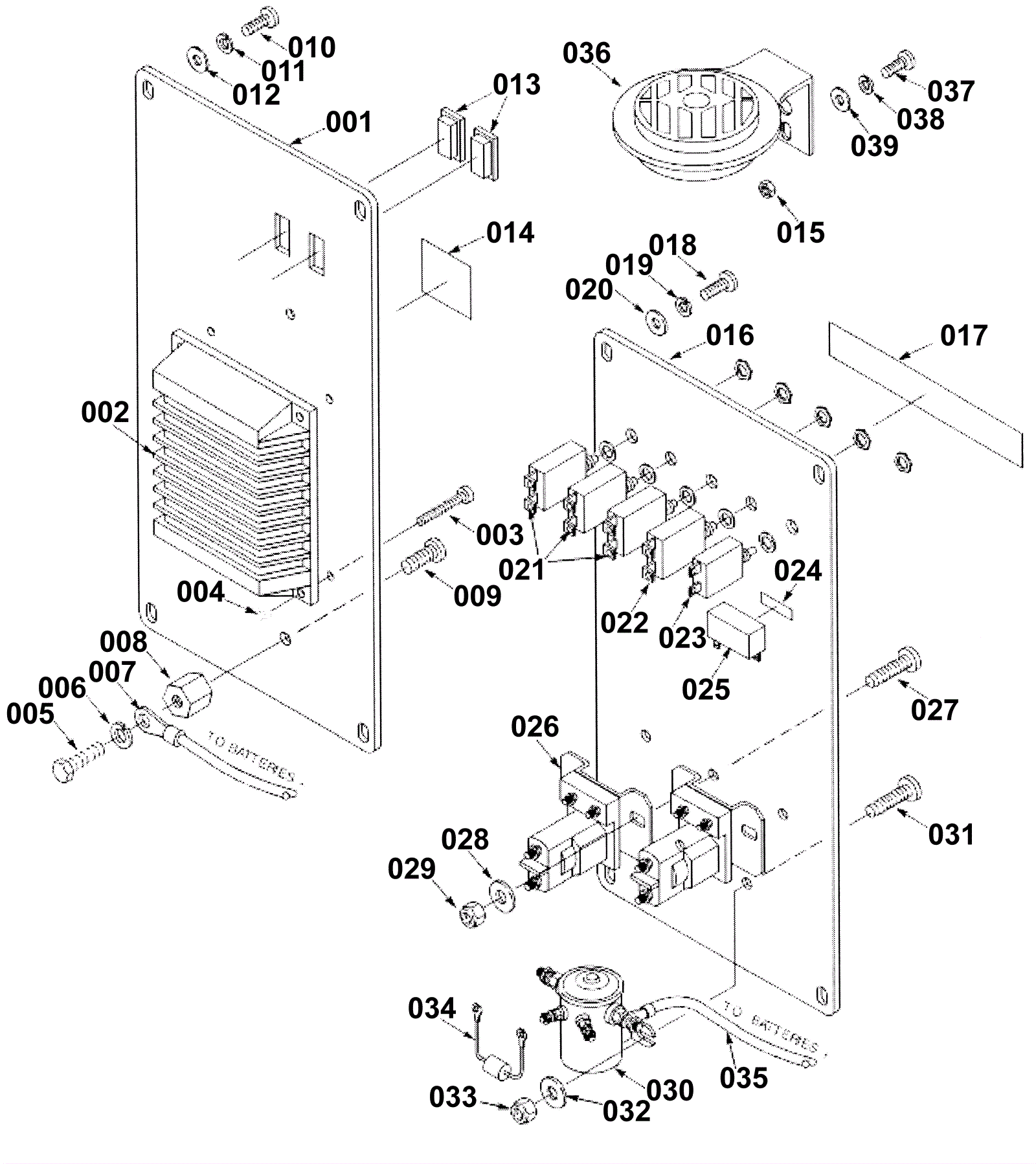

TUFFSCRUB 3300 Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5702 Right side electrical panel (OBSOLETE) $96.25 1 usually ships 1-5 days
002 175-5690 36v Control board (OBSOLETE) $1,160.50 1 usually ships 1-5 days
003 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 4 ships same day
004 999-0195 Nut 6-32 hex plain $0.99 4 ships same day
005 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
006 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
007 175-5659 Black cable #4 70 inch 3/8 x 1/4 (OBSOLETE) $41.03 1 usually ships 1-5 days
008 175-3226 Insulated stand off $9.57 1 ships same day
009 175-1504 11 inch crevice tool $51.81 1 ships same day
010 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 4 ships same day
011 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
012 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
013 175-2698 Switch plug $6.05 2 ships same day
014 175-2649 Do not spray decal $5.28 1 usually ships 10-16 days
015 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
016a 175-2703 Handle grip $5.02 1 ships same day
016b 991-8571 Handle grip $3.77 1 (NON-OEM) ships same day
017 175-5704 Circuit breaker rider label (OBSOLETE) $8.69 1 usually ships 1-5 days
018 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 4 ships same day
019 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
020 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
021 175-5705 30amp circuit breaker $19.25 3 ships same day
022 175-3133 35amp circuit breaker (OBSOLETE) $55.44 1 usually ships 10-16 days
023a 175-3132 10amp brush circuit breaker (OBSOLETE) $28.49 1 usually ships 10-16 days
023b 991-8538 10amp circuit breaker $8.03 1 (NON-OEM) ships same day
024 175-0287 Acrylic foam tape 1 inch x 1 foot $15.40 1 ft Cut to .08 feet usually ships 10-16 days
025 175-1205 36V flasher $214.83 1 usually ships 1-5 days
026 175-5017 36V contactor $78.87 2 usually ships 10-16 days
027 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 3 ships same day
028 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
029 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 ships same day
030 175-1183 36V solenoid $119.79 1 usually ships 10-16 days
031 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
032 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
033 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
034 175-2757 Diode with ring terminals (small) $11.44 3 usually ships 10-16 days
035 175-5660 Red cable 65 inch 3/8 x 1/4 (OBSOLETE) $38.06 1 usually ships 10-16 days
036 175-3160 Horn $108.68 1 usually ships 10-16 days
037 175-3679 Screw M8 x 1 1/4 x 20 $5.50 2 usually ships 10-16 days
038 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
039 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
N/S 175-5706 Main rider harness assembly (OBSOLETE) $679.36 1 Assembly usually ships 1-5 days
N/S 175-5707 Front controlboard connector (OBSOLETE) Call for price 1 included in assembly usually ships 1-5 days
