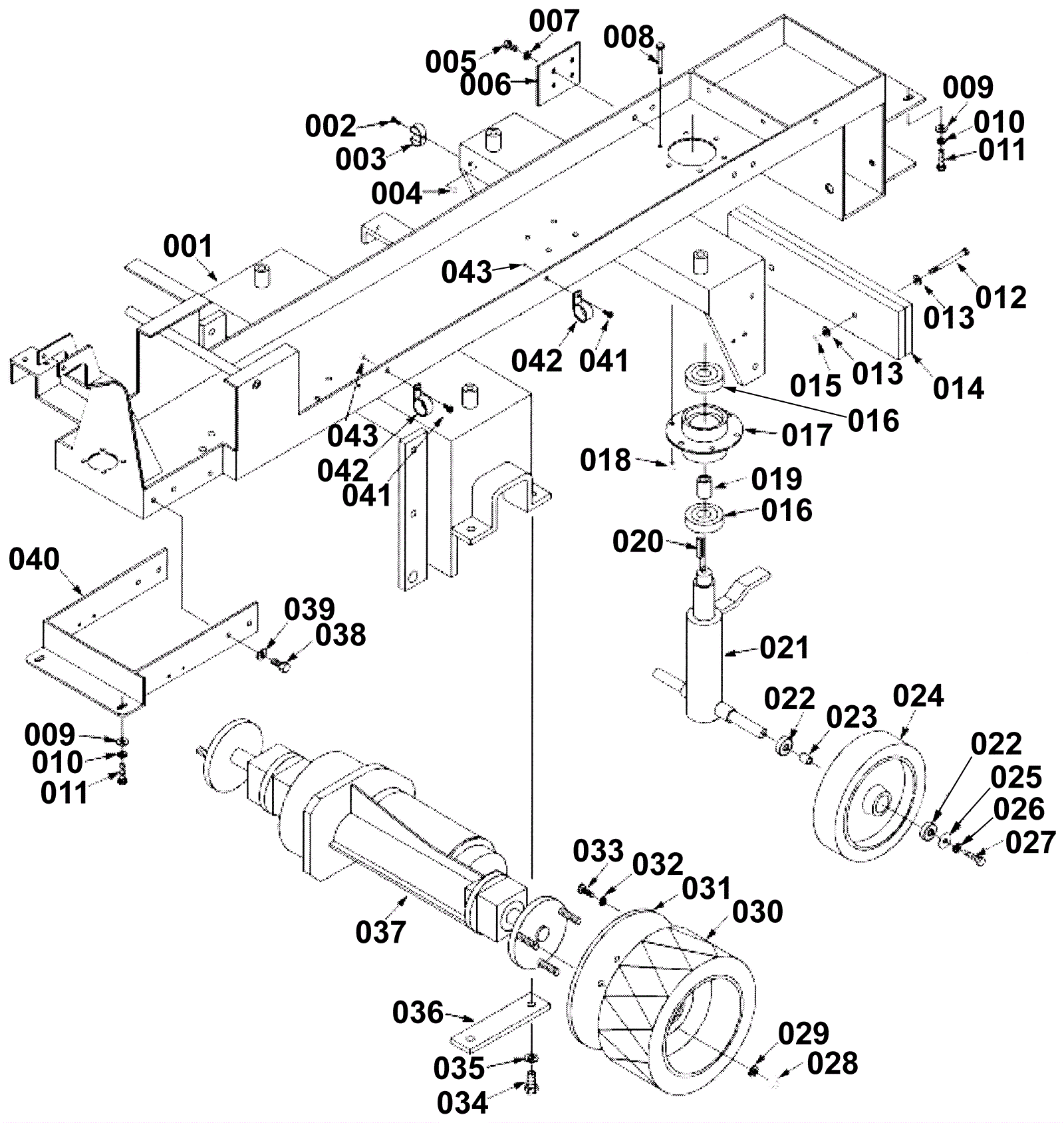

TUFFSCRUB 3300 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5633 Chassis weldment (OBSOLETE) $2,155.50 1 usually ships 1-5 days
002 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
003 175-4526 Spring clip $4.50 1 usually ships 5-16 days
004 999-0356 Nut 10-24 lock stainless steel $0.99 1 ships same day
005 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 4 ships same day
006 175-5708 Steering stop plate (OBSOLETE) $26.10 2 usually ships 1-5 days
007 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
008 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 6 ships same day
009 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
010 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
011 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
013 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
014 175-5710 Weight (OBSOLETE) $136.30 2 usually ships 1-5 days
015 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
016 175-5711 Bearing 1 3/16 x 2 7/16 x 5/8 (OBSOLETE) $9.20 2 usually ships 1-5 days
017 175-5712 Housing wheel spindle bearing (OBSOLETE) $176.90 1 usually ships 1-5 days
018 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 6 usually ships 1-5 days
019 N/A Not available Call for price 1 Spring bearing (product is obsolete) usually ships 3-26 days
020 175-2601 Square keyway $3.60 1 usually ships 5-16 days
021 175-5713 Spindle wheel weldment (OBSOLETE) $215.30 1 usually ships 1-5 days
022 175-5714 Bearing 3/4 x 1 3/4 x 1/2 (OBSOLETE) $9.10 4 usually ships 1-5 days
023 175-5715 Spacer (OBSOLETE) $83.70 2 usually ships 1-5 days
024 175-5716 10 inch rear wheel (steering) (OBSOLETE) $428.40 2 usually ships 1-5 days
025 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
026 999-1081 Washer M10 split lock stainless steel $0.99 2 ships same day
027 175-4947 Cup bearing $9.00 2 usually ships 1-5 days
028 999-0182 Nut 1/2-20 hex plain finish $0.99 6 ships same day
029 999-0126 Washer 1/2 split lock $1.28 6 ships same day
030 175-5717 12 inch drive wheel (OBSOLETE) $838.20 2 usually ships 1-5 days
031 175-5718 Brake plate (OBSOLETE) $53.50 2 usually ships 5-16 days
032 999-0553 Washer 5/16 medium split lock stainless steel $0.99 12 ships same day
033 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 12 ships same day
034 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 4 ships same day
035 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
036 175-5719 Transaxle retainer plate (OBSOLETE) $22.10 2 usually ships 1-5 days
037 N/A Not available Call for price 1 Transaxle (product is obsolete) usually ships 3-26 days
038 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 4 ships same day
039 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
040 N/A Not available Call for price 1 Front support bracket (product is obsolete) usually ships 3-26 days
041 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
042 175-0988 P clamp $2.80 3 usually ships 5-16 days
043 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
