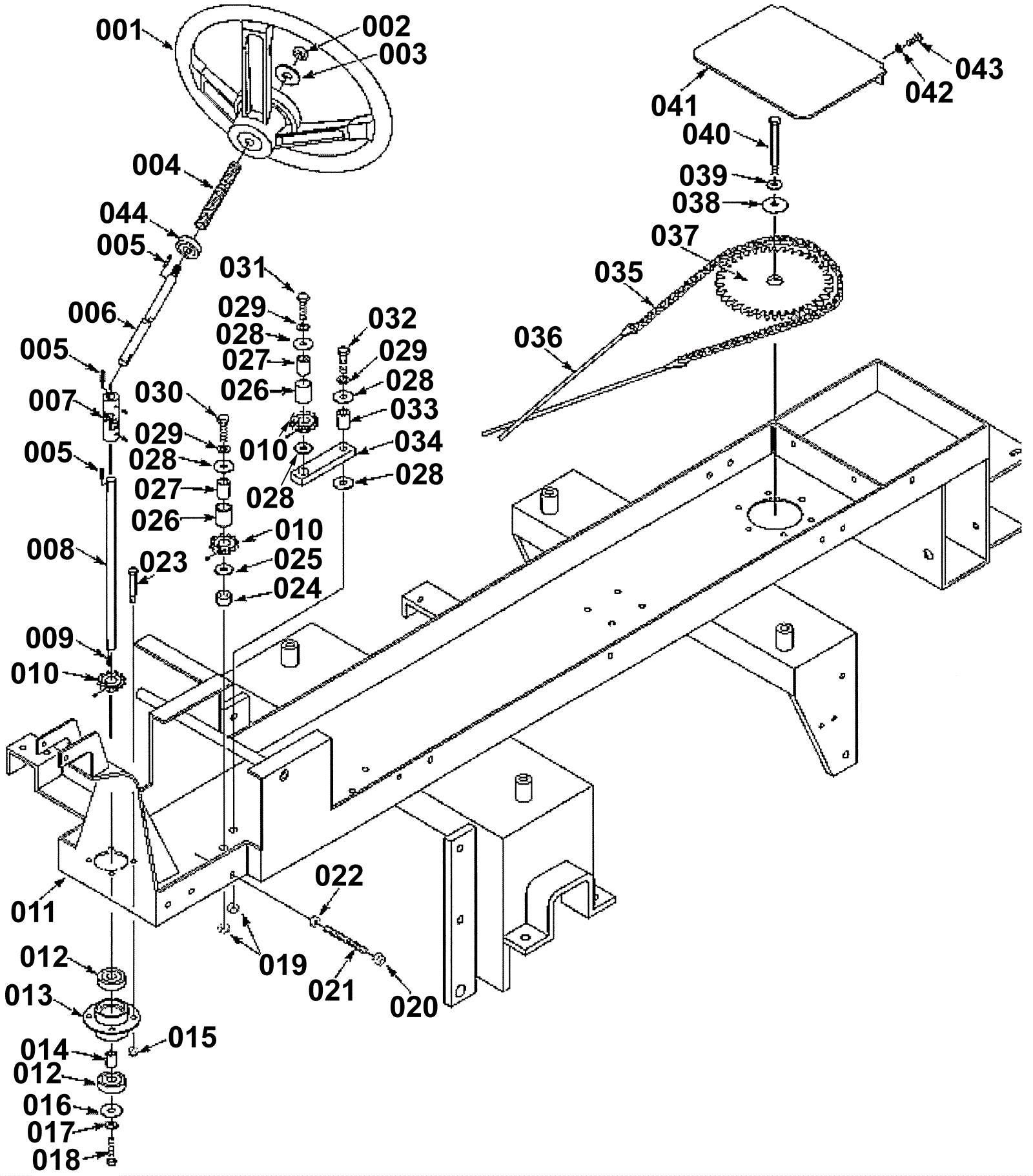

TUFFSCRUB 3300 Steering Unit Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-4653 Steering wheel $149.60 1 usually ships 5-16 days
002 275-0035 Nut M12-1.75 hex standard $3.19 1 usually ships 5-16 days
003 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 1 ships same day
004 175-5646 Record loom $3.19 1 ft usually ships 1-5 days
005 175-1087 Square keyway $34.76 3 ships same day
006 175-3203 Upper steering shaft $211.75 1 usually ships 1-5 days
007 275-5323 U joint $109.56 1 ships same day
008 175-5647 Lower steering shaft (OBSOLETE) $115.28 1 usually ships 1-5 days
009 175-2601 Square keyway $3.96 1 usually ships 5-16 days
010 175-2769 Sprocket (OBSOLETE) $125.40 3 usually ships 5-16 days
011 175-5633 Chassis weldment (OBSOLETE) $2,371.05 1 usually ships 1-5 days
012 175-0957 Brush bearing $12.98 2 usually ships 5-16 days
013 175-5653 Steering housing bearing (OBSOLETE) $138.93 1 usually ships 1-5 days
014 175-5648 Spacer bearing (OBSOLETE) $21.45 1 usually ships 1-5 days
015 999-1550 Nut M10-1.5 nylon insert lock $0.99 4 usually ships 1-5 days
016 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
017 999-1081 Washer M10 split lock stainless steel $0.99 1 ships same day
018 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel $3.96 1 ships same day
019 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
020 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
021 175-5649 Stud 3/8-16 x 4 zinc $7.81 1 usually ships 1-5 days
022 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
023 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
025 175-5651 Washer bearing (OBSOLETE) $3.43 2 usually ships 1-5 days
026 175-5652 Bearing sleeve (OBSOLETE) $3.17 2 usually ships 1-5 days
027 N/A Not available Call for price 2 Bushing usually ships 3-26 days
028 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
029 999-0126 Washer 1/2 split lock $1.28 3 ships same day
030 999-1113 Bolt 1/2-13 x 2 1/2 hex cap stainless steel $3.67 1 ships same day
031 175-2956 Screw 1/2 - 13 x 1 - 3/4 (OBSOLETE) $3.83 1 usually ships 1-5 days
033 175-2785 Bushing $3.17 1 usually ships 1-5 days
034 175-5654 Idler arm sprocket (OBSOLETE) $57.20 1 usually ships 1-5 days
035 991-0001 BX46 belt $45.55 2 ships same day
036 N/A Not available Call for price 2 Cable steering linkage usually ships 3-26 days
037 175-5656 Rear steering sprocket (OBSOLETE) $66.77 1 usually ships 1-5 days
038 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 1 ships same day
039 999-1081 Washer M10 split lock stainless steel $0.99 1 ships same day
040 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 1 ships same day
041 175-5657 Rear sprocket cover (OBSOLETE) $45.76 1 usually ships 1-5 days
042 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
044 175-3201 Flanged bearing $5.83 1 usually ships 5-16 days
N/S 175-2770 24V drive motor (OBSOLETE) $1,371.70 4 usually ships 1-5 days
N/S 175-5655 Connect link #40 chain $13.75 2 usually ships 1-5 days
