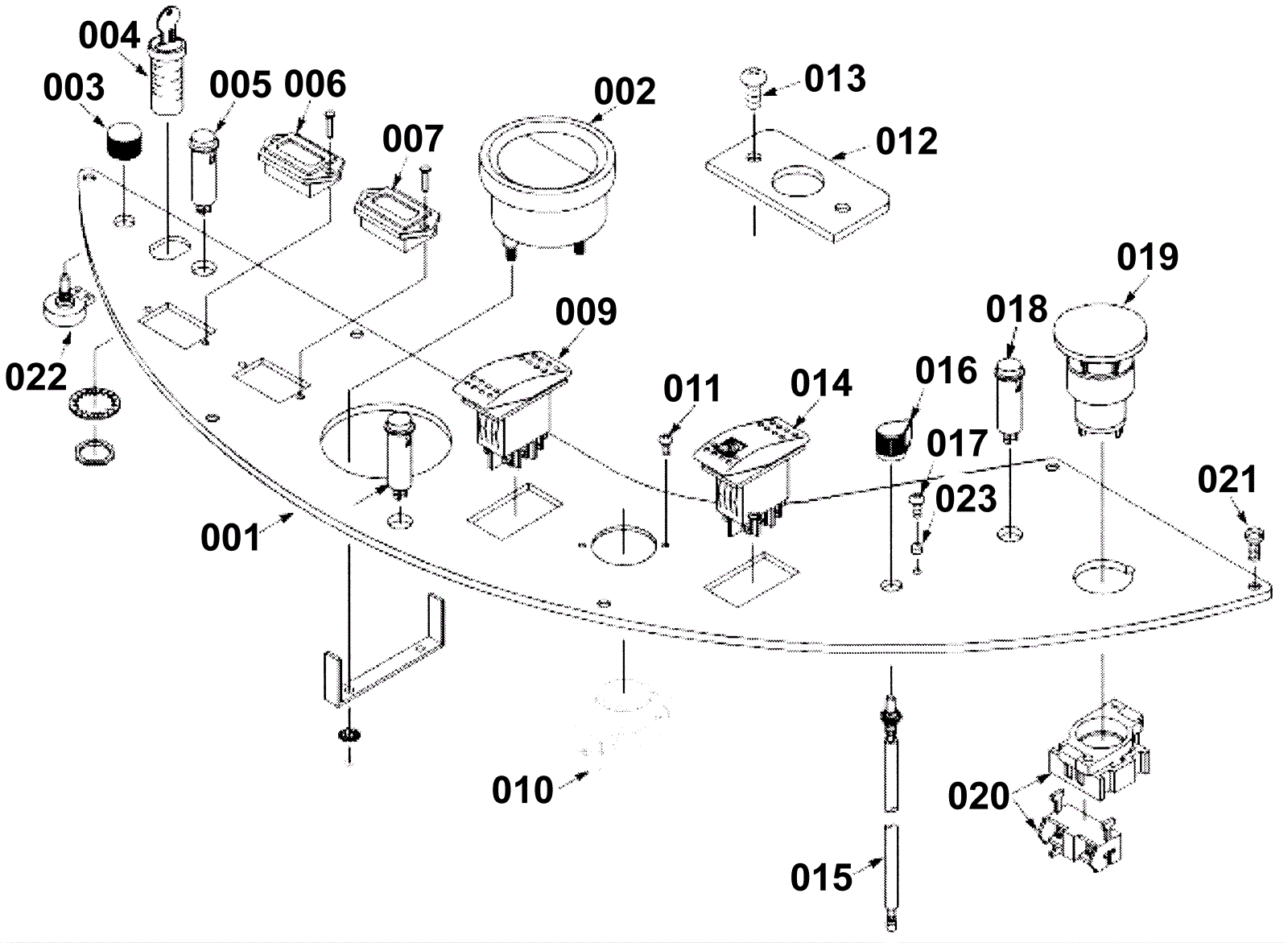

TUFFSCRUB 3300 Console Control Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Dash panel (product is obsolete) usually ships 3-26 days
002 N/A Not available Call for price 1 Pressure gauge usually ships 3-26 days
003 175-1163 Speed control knob $34.80 1 ships same day
004 175-3727 Key switch $176.90 1 usually ships 5-16 days
005 175-0393 Pilot light (green) $11.80 1 usually ships 1-5 days
006 175-5721 36V battery gauge $235.20 1 usually ships 1-5 days
007 175-1213 Hour meter $116.10 1 usually ships 1-5 days
008 175-0393 Pilot light (green) $11.80 1 usually ships 1-5 days
009 175-3097 Momentary rocker switch $40.80 1 usually ships 5-16 days
011 999-1018 Screw 6-32 x 1/4 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
012 175-5723 Steering flange bearing cover (OBSOLETE) $15.60 1 usually ships 1-5 days
013 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 2 ships same day
014 175-5724 Rocker switch 24v $38.50 1 usually ships 1-5 days
015 175-5640 Cable solution control (OBSOLETE) $47.20 1 usually ships 5-16 days
016 175-9027 Solution control knob $14.70 1 usually ships 5-16 days
017 175-5725 Screw #6-32 x 7/16 pan head phillips $2.70 1 usually ships 1-5 days
018 175-1413 Pilot light (amber) $9.47 1 usually ships 1-5 days
019 275-1416 Safety shut-off switch $36.37 1 ships same day
020 275-1416 Safety shut-off switch $36.37 1 ships same day
021 999-1145 Screw 6-32 x 1/4 truss head phillips zinc plated $0.99 7 ships same day
022a 175-5706 Main rider harness assembly (OBSOLETE) $617.60 1 Assembly usually ships 1-5 days
022b 175-5726 Potentiometer assembly (OBSOLETE) $94.30 1 Available in Main Rider Harness Assembly usually ships 1-5 days
023 175-4732 Nylon spacer $3.00 1 usually ships 1-5 days
