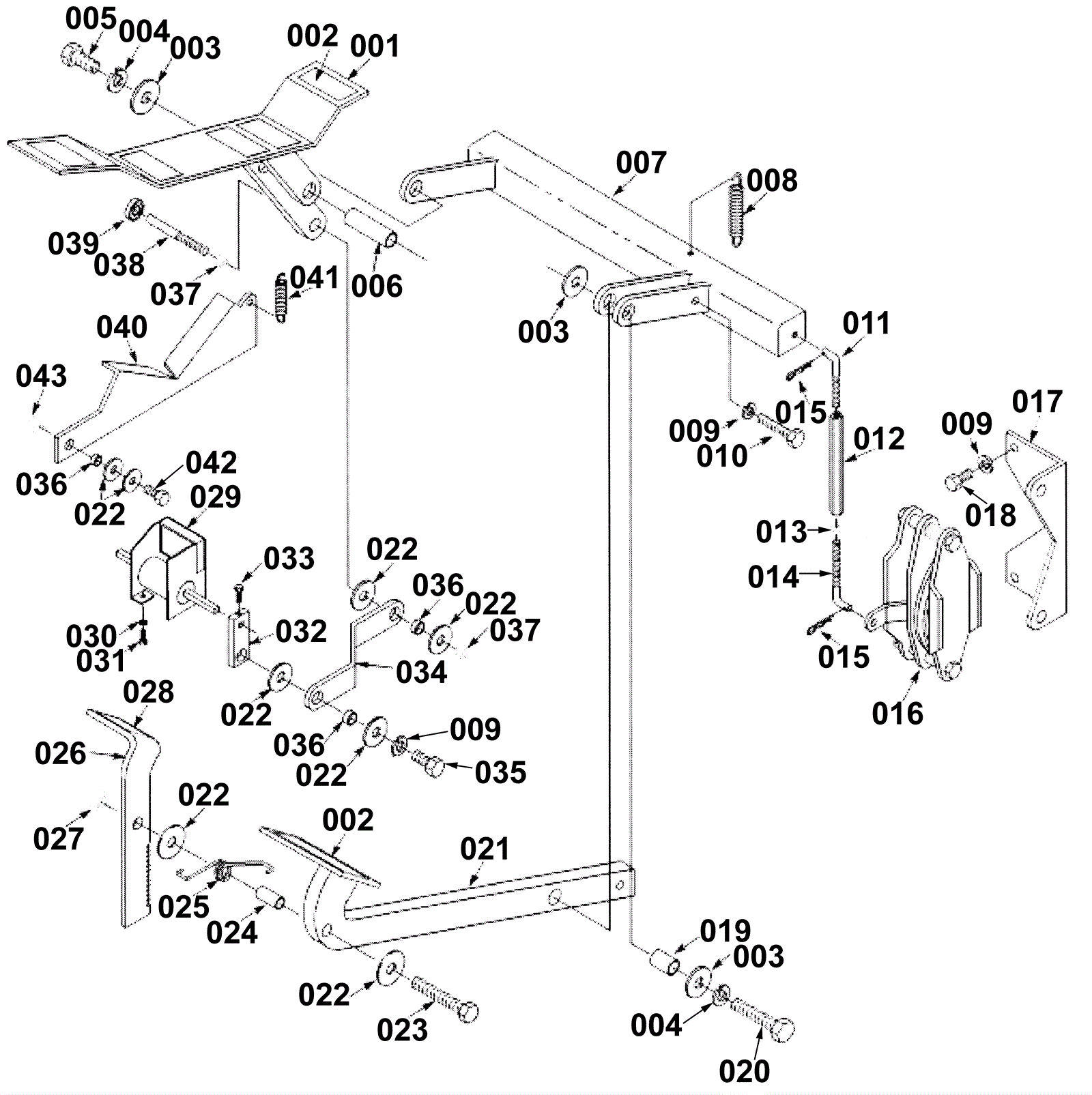

TUFFSCRUB 3300 Speed Control Unit Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5661 Speed pedal control (OBSOLETE) $176.55 1 usually ships 1-5 days
002 175-5662 Adhesive non slip black pad (OBSOLETE) $1.58 6 usually ships 1-5 days
003 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 3 ships same day
004 999-0126 Washer 1/2 split lock $1.28 2 ships same day
005 175-5663 Screw 1/2-13 x 3 stainless steel hex (OBSOLETE) $4.09 1 usually ships 1-5 days
006 175-5664 Bushing (OBSOLETE) $66.33 1 usually ships 5-16 days
007 175-5665 Brake lift weldment (OBSOLETE) $289.08 1 usually ships 1-5 days
008 175-1002 Spring (OBSOLETE) $3.70 1 usually ships 1-5 days
009 999-1081 Washer M10 split lock stainless steel $0.99 6 ships same day
010 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
011 175-5667 Left thread brake rod link (OBSOLETE) $54.45 2 usually ships 1-5 days
012 175-5668 Brake link adjuster (OBSOLETE) $89.10 2 usually ships 1-5 days
013 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
014 175-5669 Right brake rod link (OBSOLETE) $34.54 2 usually ships 1-5 days
015 175-5080 Cotter pin $3.30 4 ships same day
016 175-5670 Brake assembly (OBSOLETE) $189.09 2 usually ships 1-5 days
017 175-5671 Brake mount bracket (OBSOLETE) $44.77 2 usually ships 1-5 days
018 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel $3.96 4 ships same day
019 175-5672 Bushing (OBSOLETE) $45.76 1 usually ships 1-5 days
020 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel $3.74 1 ships same day
021 175-5673 Brake pedal (OBSOLETE) $220.77 1 usually ships 1-5 days
022 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
023 175-5674 Screw m10 1 1/2 x 55 zinc hex head (OBSOLETE) $1.32 1 usually ships 1-5 days
024 175-5675 Plastic spacer (OBSOLETE) $1.72 1 usually ships 1-5 days
025 175-5676 Torsion spring #10 (OBSOLETE) $10.23 1 usually ships 1-5 days
026 175-5677 Parking brake pedal (OBSOLETE) $41.80 1 usually ships 1-5 days
027 999-1428 Nut M10-1.5 hex zinc finish $0.99 1 ships same day
028 175-4724 Non slip surfacing pad (OBSOLETE) $3.83 1 usually ships 1-5 days
029 N/A Not available Call for price 1 (Speed control) usually ships 3-26 days
030 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
031 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 ships same day
032 175-5678 Throttle arm control (OBSOLETE) $121.33 1 usually ships 1-5 days
033 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
034 175-5679 Pedal control link (OBSOLETE) $52.14 1 usually ships 1-5 days
035a 175-2267 Front tank gasket $48.35 1 ships same day
035b 991-3026 Front tank gasket $13.74 1 (NON-OEM) ships same day
036 175-5680 Bushing (OBSOLETE) $32.78 3 usually ships 1-5 days
037 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
038 175-5681 Centering throttle shaft (OBSOLETE) $71.61 1 usually ships 1-5 days
039a 175-0069 Brush bearing $18.26 1 (OEM) ships same day
039b 991-5125 Brush bearing $2.20 1 (NON-OEM) usually ships 5-16 days
040 175-5682 Centering throttle plate (OBSOLETE) $30.58 1 usually ships 1-5 days
041 175-5683 Extension spring $4.62 1 usually ships 1-5 days
042 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
043 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
