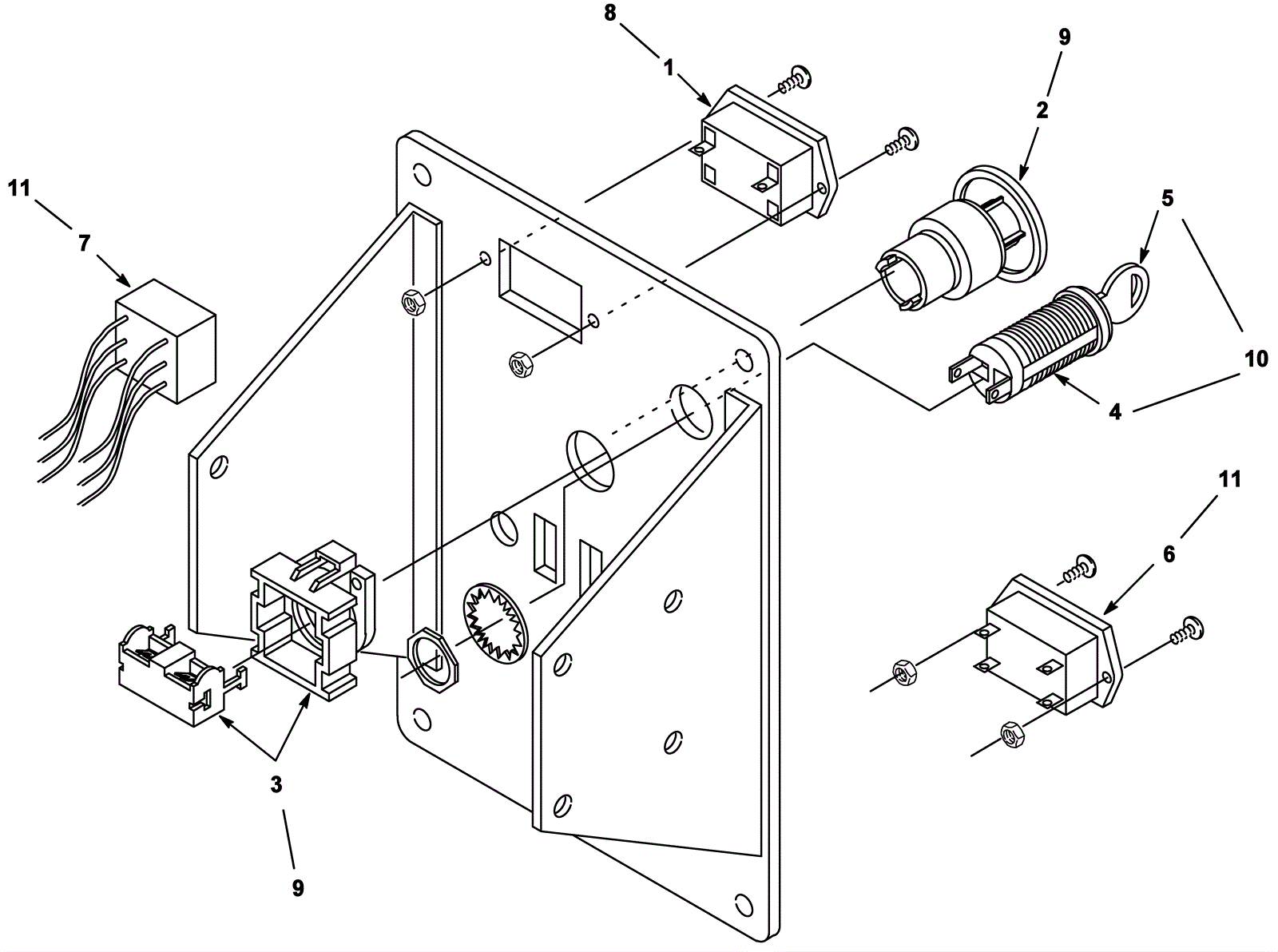

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-1213
|
Hour meter |
1 |
|
|
2 |
275-1416
|
Safety shut-off switch |
1 |
|
|
3 |
275-1416
|
Safety shut-off switch |
1 |
|
|
4 |
175-3727
|
Key switch (OBSOLETE) |
1 |
(includes 5) |
|
5 |
175-0185
|
Double sided key (steel) |
1 |
|
|
6 |
175-3728
|
24V battery gauge with screw |
1 |
|
|
7 |
175-3149
|
Low voltage cutoff kit (OBSOLETE) |
1 |
|
|
8 |
175-3148
|
Hour meter kit |
1 |
(includes 1 and N/S: 175-3725 & 175-3726) |
|
9 |
175-3150
|
Emergency stop kit |
1 |
(includes 2-3 and N/S: 175-1220 & 175-1221) |
|
10 |
175-3145
|
Key switch kit |
1 |
(includes 4) |
|
11 |
175-3149
|
Low voltage cutoff kit (OBSOLETE) |
1 |
(includes 6-7 and N/S: 175-3730, 175-1216, 175-1214, & 175-0037) |
|
N/S |
175-3725
|
Wire #18 x 5 inchblue ASM |
1 |
|
|
N/S |
175-3726
|
Wire #18 x 5 inchblack ASM |
1 |
|
|
N/S |
175-1220
|
5 inch wire assembly (red) |
1 |
|
|
N/S |
175-1221
|
5 inch wire assembly (red) |
1 |
|
|
N/S |
175-3730
|
9 inch wire assembly (green) |
1 |
|
|
N/S |
175-1216
|
8 inch wire assembly with terminal ring (black) |
1 |
|
|
N/S |
175-1214
|
12 inch wire assembly (red) |
1 |
|
|
N/S |
175-0037
|
Wire tie |
1 |
|
|
