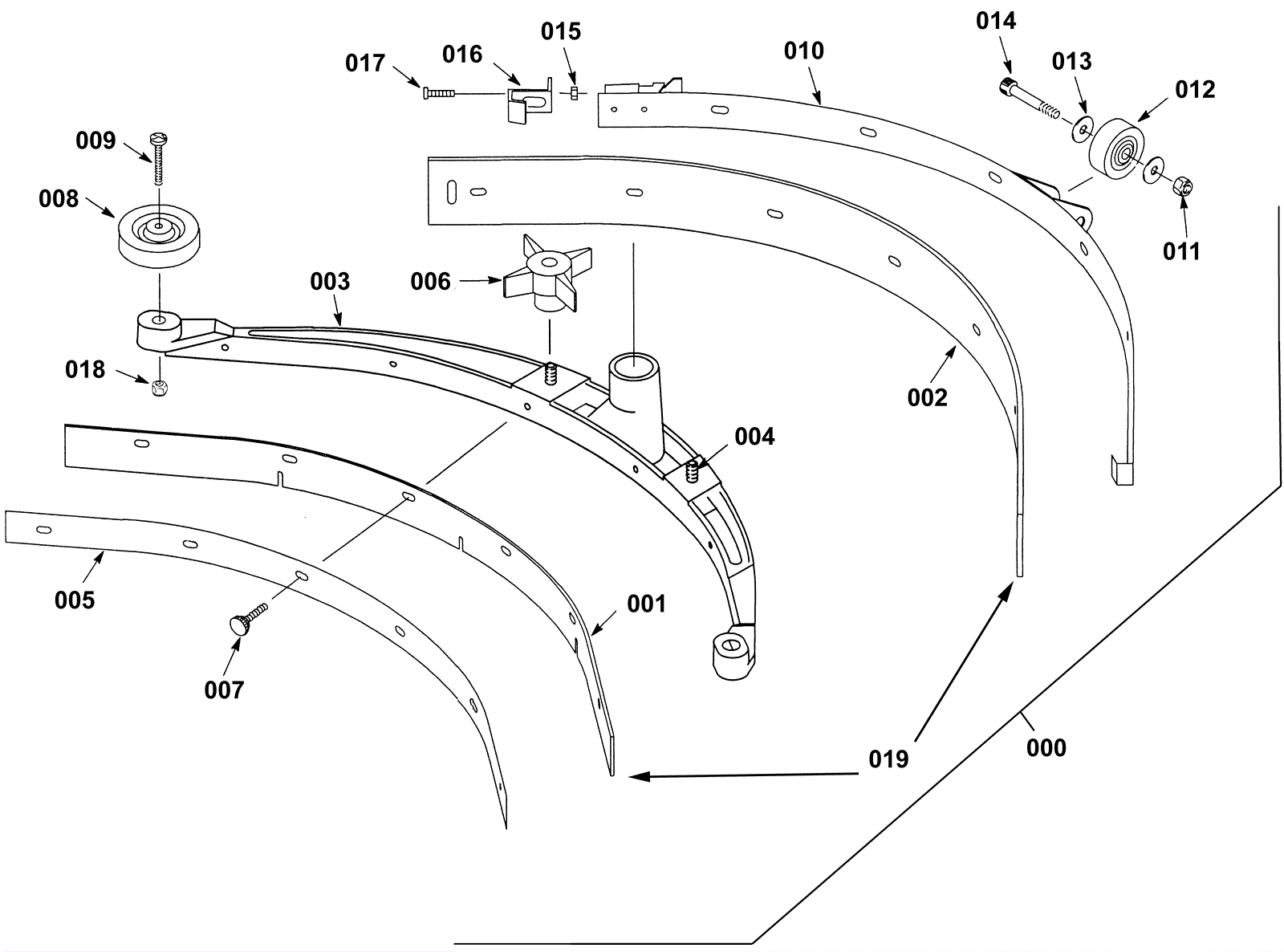

Squeegee Assembly

#PartDescription ReqNotesAvailability
000a 175-3706 Squeegee assembly linatex 28 inch (700mm) (OBSOLETE) 1 (includes 3-18 and 19a)
000b 175-3710 Sgueegee assembly gum rubber (OBSOLETE) 1 (includes 3-18 and 19b)
001a 175-2850 Squeegee blade 33 inch linatex curved front (red) 1
001b 175-3708 Squeegee blade front urethane white 33 inch 1
001c 175-3712 Squeegee blade 33 inch gum rubber front (tan) 1
002a 175-2851 Squeegee blade 33 inch linatex curved rear (red) 1
002b 175-3709 Squeegee blade rear urethane 33 inch (OBSOLETE) 1
002c 175-3713 Squeegee blade 33 inch gum rubber rear (tan) 1
003a 175-8748 Squeegee casting 1 (after 12.2001)
003b 175-8748 Squeegee casting 1 (after 08.2001 and before 01.2002)
004 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 2
005 175-3715 Front strip retainer 1
006 175-2208 Plastic star knob 2
007 175-3718 Knob 6
008 175-0117 Guide wheel with bushing 2
009 175-3716 Screw 5/16-18 x 1 3/4 2
010 175-3717 Squeegee rear ASM band 1
011 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 1
012 991-2013 Wheel 1
013 999-0617 Washer 3/8 x 1 flat stainless steel 2
014 175-3719 Screw 3/8 x 1 1/4 shoulder 1
015 999-0495 Nut M5-.8 nylon insert lock zinc plated 1
016 175-3720 Squeegee band clip 1
017 175-3721 Screw M5-.8 x 45mm 1
018 999-0593 Nut 5/16-18 hex stainless steel 2
019a 175-3707 Squeegee blades kit linatex 33 inch 1 (includes 1a and 2a)
019b 175-3711 Squeegee blade kit curved gum rubber 33 inch (OBSOLETE) 1 (includes 1c and 2c)
