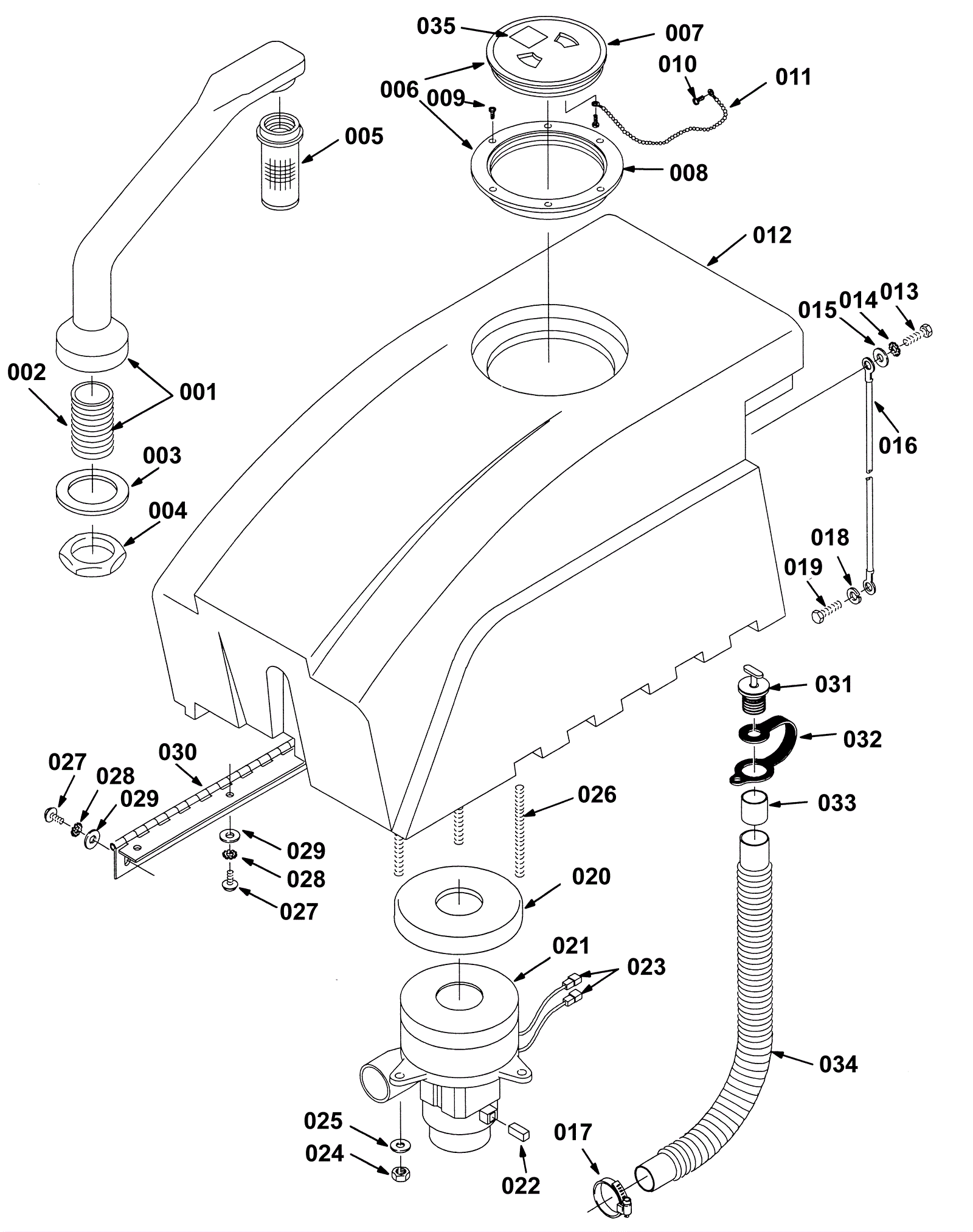

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
001 175-2998 Standpipe with nipple assembly 1 (includes item 2)
002 175-2639 1 1/2 inch nipple fitting 1
003 175-2640 Gasket 1
004 175-2907 Nut 1 1/2 flanged hex 1
005a 675-9887 Shut-off float 1
005b 991-5136 Shut-off float 1 (NON-OEM)
006 164-0202 Tank lid assembly 1 (includes 7 and 8)
007a 164-0044 Tank lid (clear) 1
007b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
008 164-0205 Tank lid ring (clear) 1
009 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 6
010 999-0434 Screw 6 x 3/8 pan head phillips 2
011 164-0204 Recovery tank lid chain 1
012 175-4879 Recovery tank teal 1
013 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 1
014 999-1024 Washer 1/4 external tooth lock stainless steel 1
015 999-0016 Washer 1/4 flat plain finish 1
016 175-2651 Support cable 1
017 175-2057 Hose clamp 1
018 999-0553 Washer 5/16 medium split lock stainless steel 1
019 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
020 675-9893 Vacuum motor gasket 1
021 275-5736 24V 3 stage vacuum motor 1 (includes 22)
022 175-2658 Carbon brush (pkg of 2) 2
023 175-0923 Male terminal 2
024 999-0497 Nut M6-1 nylon insert lock stainless steel 3
025 999-0016 Washer 1/4 flat plain finish 3
026 175-3641 Stud 3
027 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 11
028 999-1024 Washer 1/4 external tooth lock stainless steel 11
029 999-0016 Washer 1/4 flat plain finish 11
030 175-3001 Recovery tank hinge 1
031 175-2653 1 1/2 inch expansion plug 1
032 175-2654 Drain hose strap 1
033 175-2655 Drain hose sleeve 1
034 175-2656 Drain hose 1
035 175-2649 Do not spray decal 1
