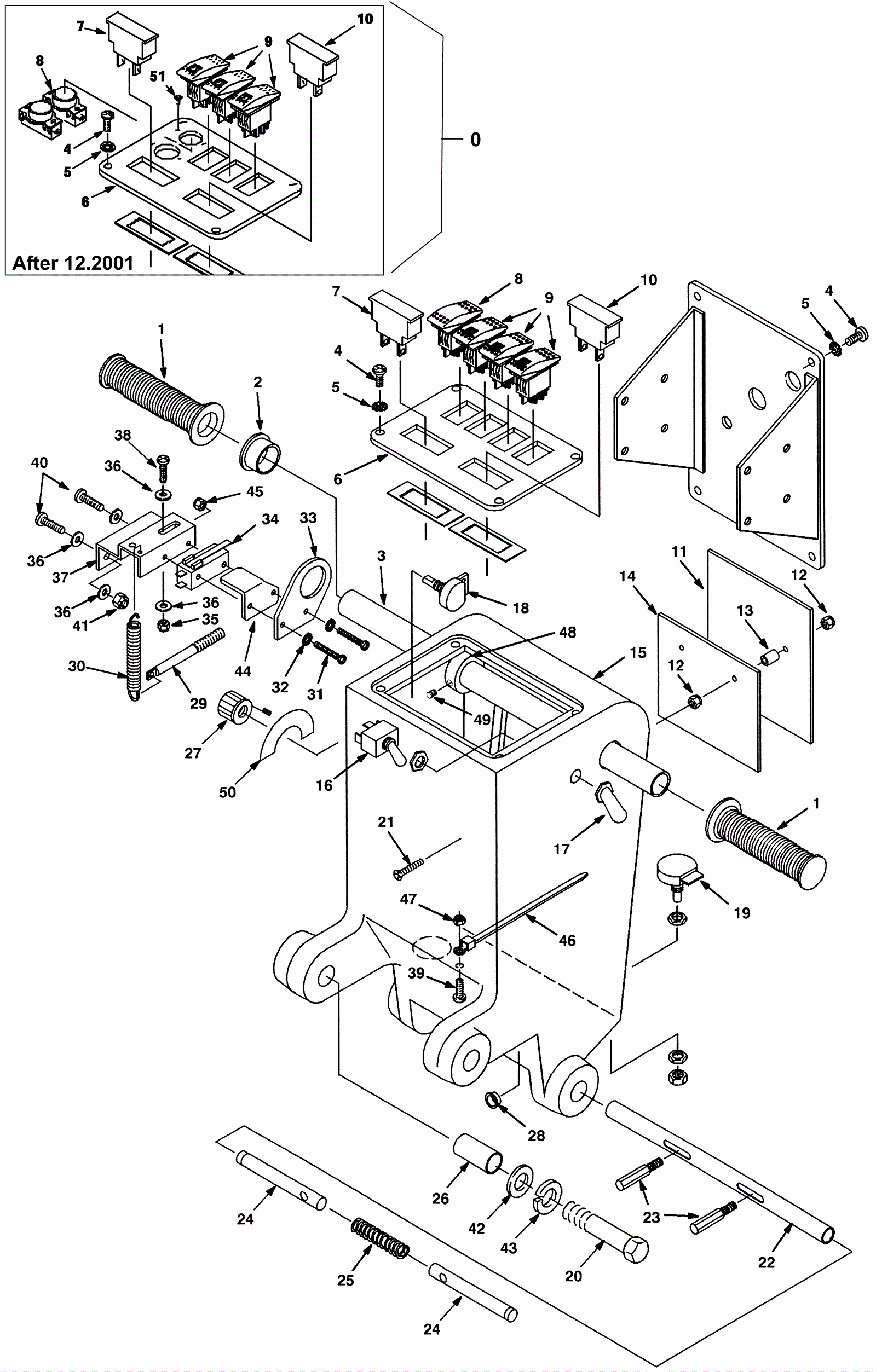

5500 Console Assembly

#PartDescriptionPriceReqNotesAvailability
0a 175-0247 Switch panel assembly $1,050.50 1 (after 12.2001) (includes 6a, 7, 8a, 9, 10, and 51) usually ships 5-16 days
0b 175-0247 Switch panel assembly $1,050.50 1 (after 08.2001 and before 01.2002) (includes 6b, 7, 8b, 9, and 10) usually ships 5-16 days
1a 175-2703 Handle grip $3.70 2 usually ships 5-16 days
1b 991-8571 Handle grip $2.33 2 ships same day
2 175-3093 Flanged bushing $3.60 1 usually ships 5-16 days
3 175-3094 Handle tube $74.00 1 usually ships 5-16 days
4 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 8 ships same day
5 999-1026 Washer #10 internal lock stainless steel $0.99 8 ships same day
6a 175-0256 Switch panel $43.10 1 (after 12.2001) usually ships 5-16 days
6b 175-3096 Switch panel (OBSOLETE) $150.10 1 (after 08.2001 and before 01.2002) usually ships 5-16 days
7 175-3643 Brush pressure gauge $53.60 1 usually ships 5-16 days
8b 175-3097 Momentary rocker switch $40.80 1 (after 08.2001 and before 01.2002) usually ships 5-16 days
9 175-3098 Lighted on/off rocker switch $29.90 3 ships same day
10 175-2691 Battery voltage meter $75.90 1 usually ships 5-16 days
11 175-3124 55amp speed control board $636.00 1 usually ships 5-16 days
13 175-3100 Spacer $3.90 2 usually ships 1-5 days
14 175-3101 Heat sink $14.70 1 usually ships 1-5 days
15 175-4825 Control housing (teal) $222.00 1 usually ships 1-5 days
16 175-3103 Toggle switch $55.20 1 ships same day
17 175-3104 Switch boot $18.10 1 ships same day
18 175-3105 Potentiometer $97.30 1 usually ships 5-16 days
19 175-3106 Lockable potentiometer $37.00 1 usually ships 5-16 days
20 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel $0.99 2 ships same day
21 175-3107 Screw M4-.7 x 35mm flat head phillips $2.80 2 usually ships 5-16 days
22 175-3108 Handle adjustment tube $61.00 1 usually ships 1-5 days
23 175-2710 Handle adjustment pin $15.10 2 usually ships 1-5 days
24 175-3109 Handle locking pin $18.90 2 usually ships 1-5 days
25 175-2712 Spring $4.40 1 usually ships 1-5 days
26 175-2714 Bushing $6.90 2 usually ships 1-5 days
27 175-1163 Speed control knob $34.80 1 ships same day
28 175-3111 Snap bushing $2.60 1 usually ships 1-5 days
29 175-3112 Spring return pin $14.30 1 usually ships 5-16 days
30 175-3113 Extension spring $2.70 1 usually ships 5-16 days
31 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
32 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
33 175-3115 Switch bracket $6.60 1 usually ships 1-5 days
34a 175-3116 Snap switch $12.50 1 usually ships 5-16 days
34b 991-5121 Charger interlock switch $12.50 1 (NON-OEM) ships same day
35 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
36 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
37 175-3117 Switch mount $21.10 1 usually ships 1-5 days
38 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 1 ships same day
39 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
40 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
41 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
42 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
43 999-0126 Washer 1/2 split lock $1.28 2 ships same day
44 175-3122 Switch plate $12.80 1 usually ships 1-5 days
45 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
46 175-3645 P clamp $2.90 1 usually ships 1-5 days
47 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
48 175-1168 Handle collar $5.30 2 usually ships 5-16 days
49 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
50 175-1169 Speed control decal $3.90 1 usually ships 5-16 days
51 999-1145 Screw 6-32 x 1/4 truss head phillips zinc plated $0.99 4 (after 12.2001) ships same day
N/S 175-3120 Console harness with potentiometer $195.30 1 usually ships 5-16 days
N/S 175-0247 Switch panel assembly $1,050.50 1 (after 12.2001) usually ships 5-16 days
N/S 175-0247 Switch panel assembly $1,050.50 1 (after 08.2001 and before 01.2002) usually ships 5-16 days
