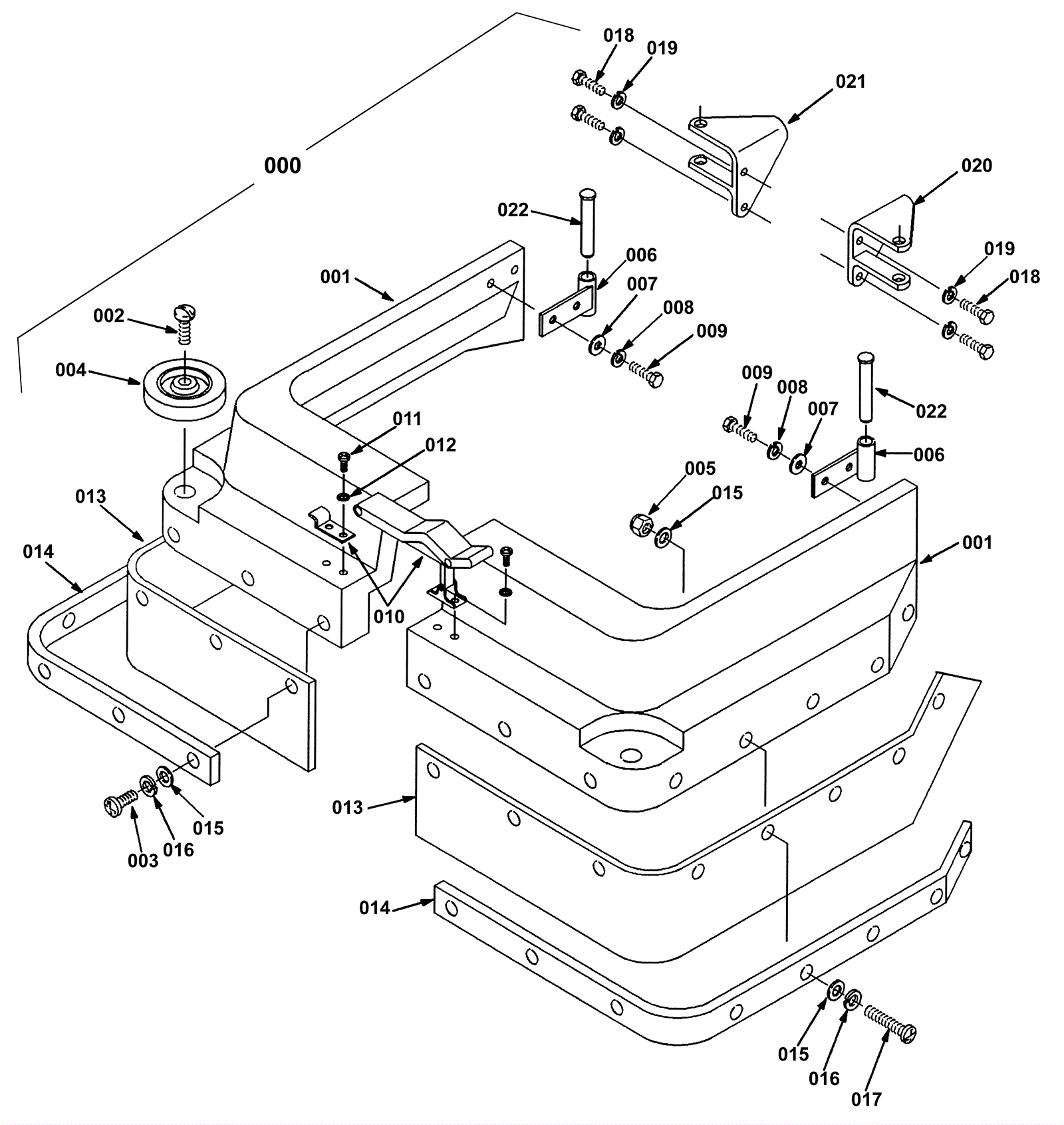

Brush Skirt Assembly

#PartDescription ReqNotesAvailability
000a 175-5769 Skirt operator left assembly (OBSOLETE) 1 (5500) (includes 1-17)
000b 175-5768 Skirt operator left assembly 1 (5520)
000c 175-5766 Skirt operator right assembly (OBSOLETE) 1 (5500)
000d 175-5767 Skirt operator left teal assembly 1 (5520)
001a 175-5772 Left operator skirt (OBSOLETE) 1 (5500)
001b 175-5773 Right operator skirt 1 (5520)
001c 175-5774 Right operator skirt (OBSOLETE) 1 (5500)
001d 175-5775 Right operator skirt 1 (5520)
002 999-0742 Screw M8-1.25 x 40mm pan head phillips zinc 2
003 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 10
004 175-0117 Guide wheel with bushing 2
005 999-0495 Nut M5-.8 nylon insert lock zinc plated 6
006 175-3049 Skirt mount bracket 2
007 999-0024 Washer 5/16 flat stainless steel 4
008 999-0553 Washer 5/16 medium split lock stainless steel 4
009 999-0900 Screw M8-1.25 x 18mm hex head stainless steel 4
010a 175-3369 Hood latch 1
010b 991-8561 Rubber draw latch with keeper 1
011 999-0530 Screw M4-.7 x 8mm pan head slotted zinc 4
012 999-1083 Washer #8 internal star lock stainless steel 4
013a 175-3052 Splash guard 2401 (OBSOLETE) 2 (5500)
013b 175-3053 Splash guard 2601 2 (5520)
014a 175-3054 Splash guard strap 2401 2 (5500)
014b 175-3055 Splash guard strap 2601 2 (5520)
015 999-0393 Washer 3/16 flat aluminum 22
016 999-1026 Washer #10 internal lock stainless steel 16
017 999-0797 Screw M5-.8 x 30mm pan head phillips stainless steel 6
018 175-3679 Screw M8 x 1 1/4 x 20 4
019 999-0553 Washer 5/16 medium split lock stainless steel 4
020 175-3050 Skirt mount bracket lefthand 1
021 175-3051 Skirt mount bracket righthand 1
022 175-2795 Skirt pin (OBSOLETE) 2
