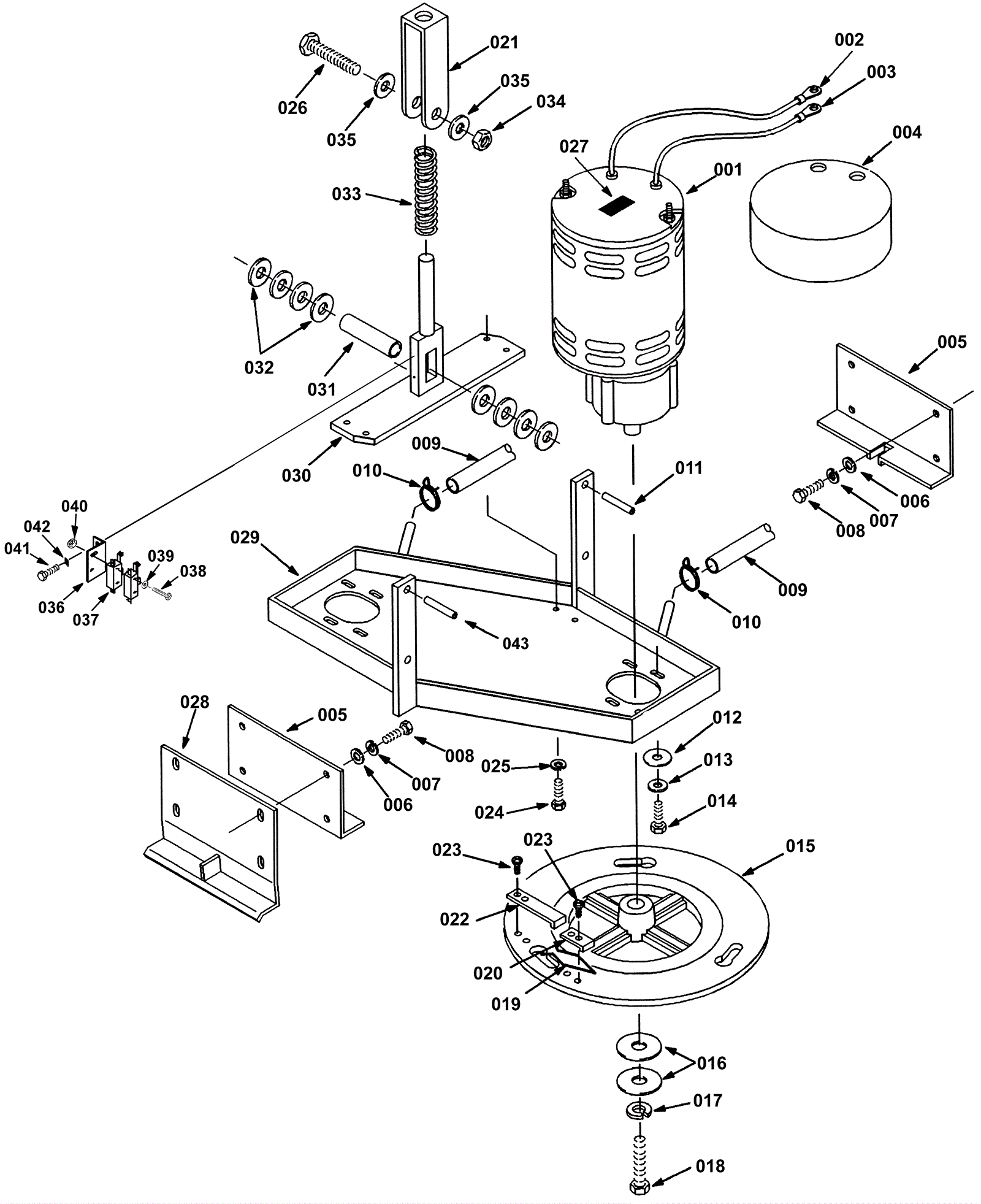

Brush Drive Assembly

#PartDescription ReqNotesAvailability
001a 175-2599 24V brush motor with gearbox 2
001b 175-7927 Gearbox 1
001c 175-3028 Brush card assembly 1
001d 175-2600 Carbon brush 4
001e 175-2601 Square keyway 1
001f 991-8524 36V 1.0HP brush motor assembly with gear box 1 (NON-OEM)
002a 175-3032 Positive terminal ring 1 (after 12.2001)
002b 175-3029 Terminal ring 1/4 inch 2 (after 08.2001 and before 01.2002)
003a 175-3032 Positive terminal ring 1 (after 12.2001)
003b 175-3030 Terminal ring (positive) left motor 1 (after 08.2001 and before 01.2002)
003c 175-3032 Positive terminal ring 1 (after 08.2001 and before 01.2002)
004 175-2598 Brush motor cover 2
005 175-3033 Guide plate 2
006 999-1119 Washer 1/4 x 1 fender zinc plated 8
007 999-0632 Washer 1/4 split lock stainless steel 8
008 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
009 175-5592 Hose 3/8 x 5/8 x 9 inch 2
010 175-3671 Hose clamp 2
011 175-2606 Roll pin 4
012 999-0617 Washer 3/8 x 1 flat stainless steel 8
013 999-0034 Washer 3/8 split lock plain finish 8
014 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 8
015 175-2609 Drive plate 2
016 999-0617 Washer 3/8 x 1 flat stainless steel 4
017 999-0553 Washer 5/16 medium split lock stainless steel 2
018 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
019 175-2612 Spring clip 2
020 175-2611 Brush plate clamp 2
021a 175-7900 Spring bracket 1 (after 12.2001)
021b 175-3044 Spring bracket (OBSOLETE) 1 (after 08.2001 and before 01.2002)
022 175-3034 Driver release stop 2
023 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc 8
024 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
025 999-0553 Washer 5/16 medium split lock stainless steel 4
026 175-3031 Screw 3/8-16x2 1
027 175-0287 Acrylic foam tape 1 inch x 1 foot 2
028 175-3037 Front lip skirt (OBSOLETE) 1
029 175-3038 Motor mount bracket (OBSOLETE) 1
030a 175-9499 Spring mount bracket (OBSOLETE) 1 (after 12.2001)
030b 175-3039 Spring mount bracket (OBSOLETE) 1 (after 08.2001 and before 01.2002)
031 175-3040 Bushing (OBSOLETE) 1
032 175-3041 Washer flat 8
033 175-3042 Spring 1
034 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
035 999-0617 Washer 3/8 x 1 flat stainless steel 2
036 175-9692 Brush switch bracket (OBSOLETE) 1 (after 12.2001)
037 175-2049 25amp roller switch (OBSOLETE) 2 (after 12.2001)
038 N/A Not available 2 (after 12.2001)
039 999-1158 Washer #6 flat stainless steel 2 (after 12.2001)
040 999-0144 Nut 6-32 k-lock zinc plated 2 (after 12.2001)
041 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 2 (after 12.2001)
042 999-1026 Washer #10 internal lock stainless steel 2 (after 12.2001)
043a 175-2606 Roll pin 1 (after 12.2001)
043b 175-5592 Hose 3/8 x 5/8 x 9 inch 1 (after 08.2001 and before 01.2002)
