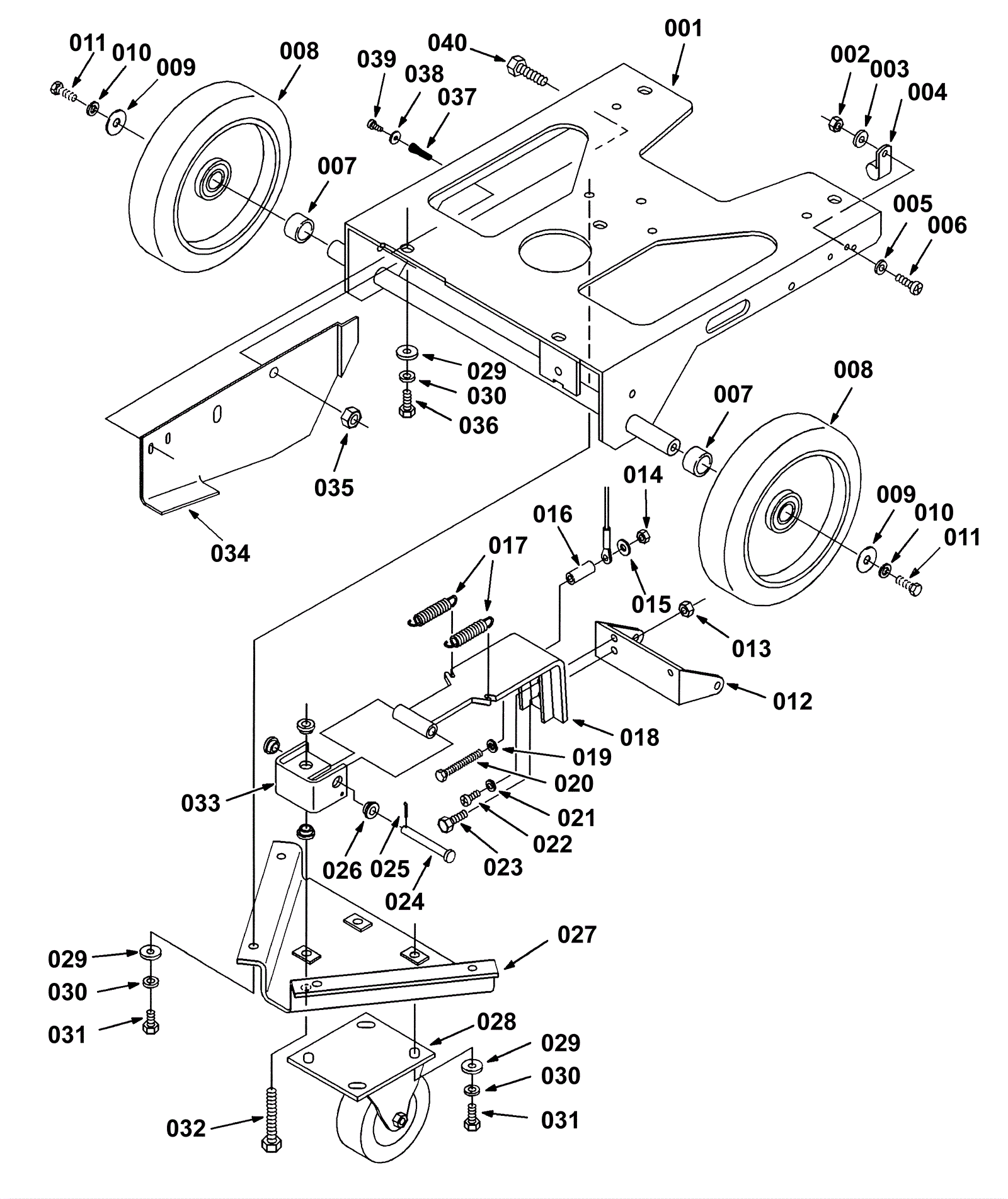

5280 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4628 Frame (OBSOLETE) $92.95 1 usually ships 1-5 days
002 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
003 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
004 175-4629 P clamp $3.96 1 usually ships 5-16 days
005 999-1117 Washer M6 split lock stainless steel $0.99 1 ships same day
006 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 1 ships same day
007 175-4630 Bushing (OBSOLETE) $4.62 2 usually ships 1-5 days
009 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
010 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
011 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
012 175-4632 Tip adjustment bracket $75.90 1 usually ships 5-16 days
014 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
015 175-1895 Carbon brush set for 802 watt motor $59.95 1 usually ships 1-5 days
016 175-4633 Spacer (OBSOLETE) $8.25 1 usually ships 1-5 days
017 175-4634 Extension spring (OBSOLETE) $2.51 2 usually ships 1-5 days
018 175-4635 Squeegee arm (OBSOLETE) $81.73 1 usually ships 1-5 days
019 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
020 999-0993 Screw 1/4-20 x 1 5/8 hex head stainless steel $1.07 1 ships same day
021 999-1117 Washer M6 split lock stainless steel $0.99 1 ships same day
022 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 1 ships same day
023 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
025 175-6176 Cotter pin $3.04 1 ships same day
026 175-5163 Flanged bearing $12.10 4 usually ships 5-16 days
027 175-4638 Caster wheel mounting frame (OBSOLETE) $156.75 1 usually ships 1-5 days
028a 175-2991 4 inch caster wheel $63.27 1 ships same day
028b 991-2016 4 inch caster wheel $58.28 1 ships same day
029 999-0024 Washer 5/16 flat stainless steel $1.34 17 ships same day
030 999-1053 Washer 5/16 internal star lock stainless steel $0.99 17 ships same day
031 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 12 ships same day
032 175-4639 Bolt 3/8 x 2 shoulder $22.33 1 usually ships 1-5 days
033 175-4640 Squeegee lift bracket (OBSOLETE) $46.09 1 usually ships 1-5 days
034 175-4641 Safety bracket (OBSOLETE) $22.22 1 usually ships 1-5 days
035 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
036 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 5 ships same day
037 175-4642 Screw #6 anchor $2.38 2 usually ships 1-5 days
038 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
039 999-0434 Screw 6 x 3/8 pan head phillips $0.99 2 ships same day
040 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 1 ships same day
