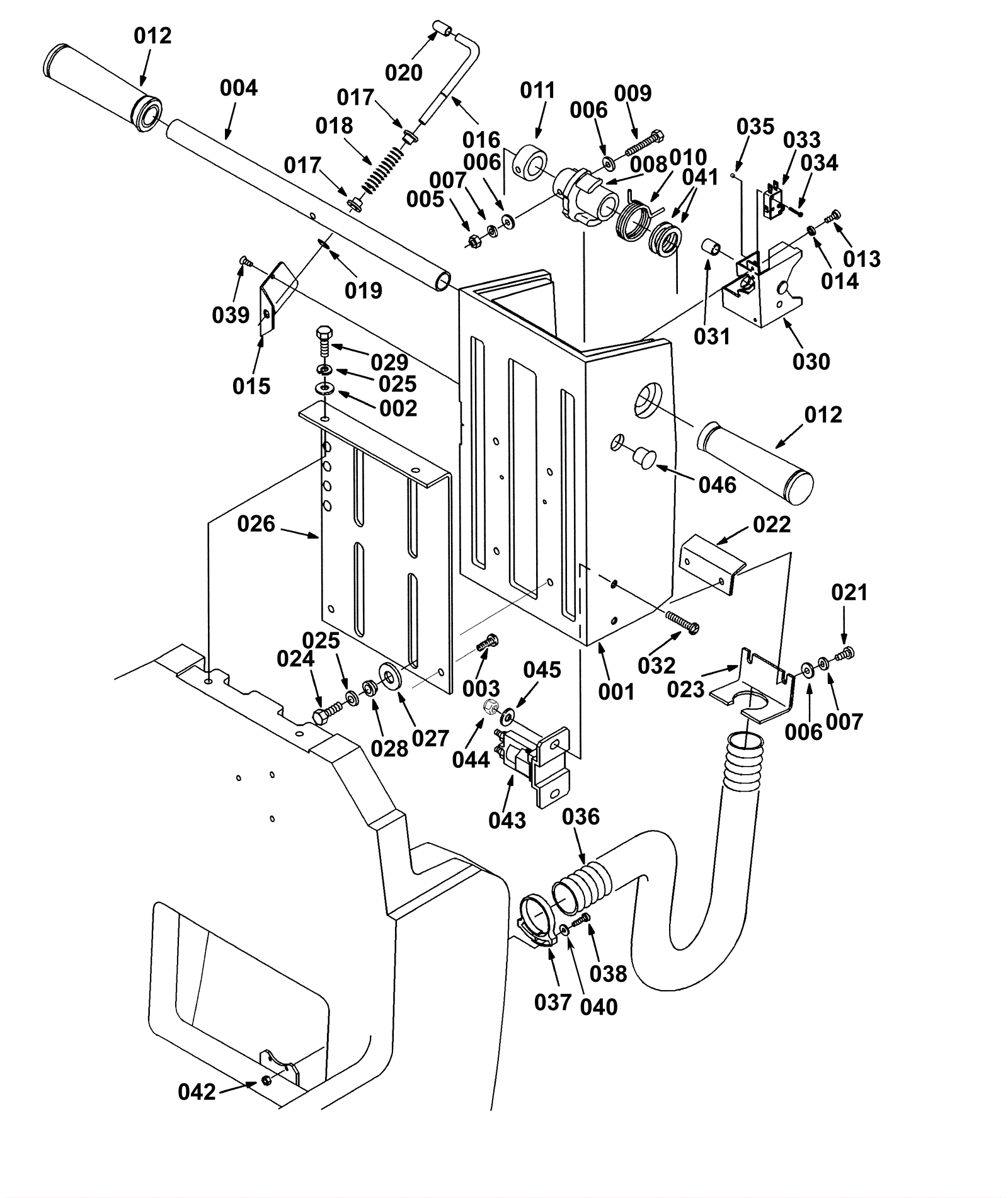

5280 Console Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4572 Control housing (Tennant industrial) (OBSOLETE) $187.38 1 usually ships 1-5 days
002 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
003 175-4573 Screw M8 x 16mm (OBSOLETE) $2.11 2 usually ships 1-5 days
004 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
005 175-4253 Handle bar $31.35 1 usually ships 5-16 days
006 999-1261 Washer M6 flat stainless steel $0.99 3 ships same day
007 999-1117 Washer M6 split lock stainless steel $0.99 3 ships same day
008 175-4259 Potentiometer console bracket $426.80 1 (Hub gear assembly) usually ships 5-16 days
009 999-1147 Bolt M6-1 x 40mm hex head stainless steel $0.99 1 ships same day
010 175-4260 Torsion spring $6.82 1 ships same day
011 175-4574 Collar $14.30 1 usually ships 1-5 days
012a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
012b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
013 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 2 ships same day
014 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
015 175-4250 Retainer plate $10.34 1 usually ships 5-16 days
016 175-4254 Adjustment lever $14.08 1 usually ships 5-16 days
017 175-4255 Flanged bushing $4.88 2 usually ships 5-16 days
018 175-4256 Compression spring $4.88 1 usually ships 5-16 days
019 175-4252 Retaining ring $4.88 1 usually ships 5-16 days
020 175-4278 Cap $4.09 1 usually ships 5-16 days
021 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 1 ships same day
022 175-4264 Bracket $10.01 2 usually ships 1-5 days
023 175-4581 Conduit mounting bracket (OBSOLETE) $5.94 1 usually ships 1-5 days
024 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
025 999-1053 Washer 5/16 internal star lock stainless steel $0.99 6 ships same day
026 175-4575 Console slide plate (OBSOLETE) $63.36 1 usually ships 1-5 days
027 999-1156 Washer M12-.7 nylon $4.88 4 ships same day
028 175-5163 Flanged bearing $12.10 4 usually ships 5-16 days
029 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
030 173-4576 Control panel (OBSOLETE) $67.95 1 usually ships 1-5 days
031 175-4577 Nylon spacer 6 1/2 x 7 3/64 x 15 15/64 (OBSOLETE) $2.11 1 usually ships 1-5 days
032 999-1549 Screw 10-24 x 3/4 flat head phillips stainless steel $0.99 1 usually ships 1-5 days
033 175-4578 Switch kit $37.29 2 usually ships 5-16 days
034 175-1333 Screw M3-.5 x 20mm hex head $4.88 1 usually ships 5-16 days
035 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
036 175-4579 Convoluted conduit (black) (OBSOLETE) $5.17 2 usually ships 1-5 days
037 175-4580 Vacuum hose clamp $6.71 1 usually ships 5-16 days
038 999-1040 Screw M3-.5 x 20mm pan head $0.99 1 ships same day
039 999-1519 Screw M4-.7 x 8mm flat head phillips zinc plated $0.99 2 ships same day
040 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
041 175-0385 Nylon washer $5.28 2 usually ships 1-5 days
042 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
043 175-4293 24V relay $60.39 1 usually ships 5-16 days
044 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
045 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
046 175-1410 Dome plug $3.96 1 usually ships 5-16 days
