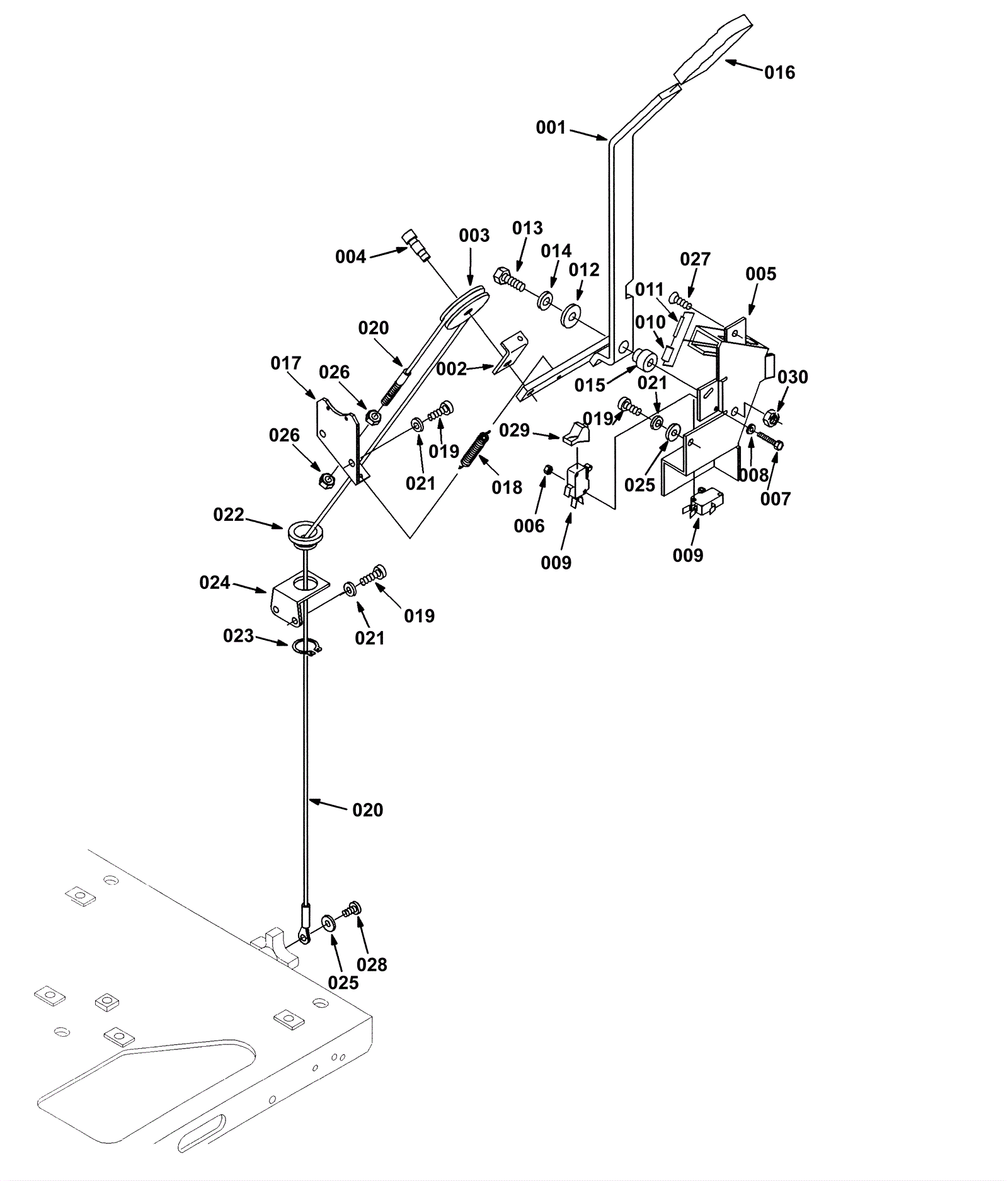

5300 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4795 Squeegee lifting arm (OBSOLETE) $111.10 1 usually ships 5-16 days
002 175-4796 Bracket (OBSOLETE) $5.15 1 usually ships 5-16 days
003 175-4797 Cable pulley (OBSOLETE) $17.27 1 usually ships 1-5 days
004 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder $4.84 1 ships same day
005 175-4798 Squeegee lifting arm bracket (OBSOLETE) $98.34 1 usually ships 5-16 days
006 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 4 ships same day
007 175-1333 Screw M3-.5 x 20mm hex head $3.96 4 usually ships 5-16 days
008 999-1553 Washer M3.5 flat zinc plated $0.99 8 ships same day
009 175-4578 Switch kit $36.52 2 usually ships 5-16 days
010 175-4799 Squeegee lift bracket bushing (OBSOLETE) $8.14 1 usually ships 1-5 days
011 175-4800 Roll pin $20.13 1 usually ships 1-5 days
012 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
013 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
014 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
015 175-4801 Bushing $6.93 1 usually ships 5-16 days
016 N/A Not available Call for price 1 Squeegee lift grip usually ships 3-26 days
017 175-4803 Squeegee cable bracket (OBSOLETE) $10.78 1 usually ships 1-5 days
018 N/A Not available Call for price 1 Extension spring usually ships 3-26 days
019 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 5 ships same day
020 175-3068 Squeegee lift cable $32.78 1 ships same day
021 999-1117 Washer M6 split lock stainless steel $0.99 5 ships same day
022 175-8735 Cable bushing $5.83 1 ships same day
023 175-3008 Retaining ring $3.30 1 ships same day
024 175-3007 Cable guide bracket $4.36 1 usually ships 1-5 days
025 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
026 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
027 999-1422 Screw M6-1 x 16mm flat head zinc plated $2.26 1 ships same day
028 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 1 ships same day
029 175-4723 Switch boot $15.07 1 usually ships 5-16 days
030 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
