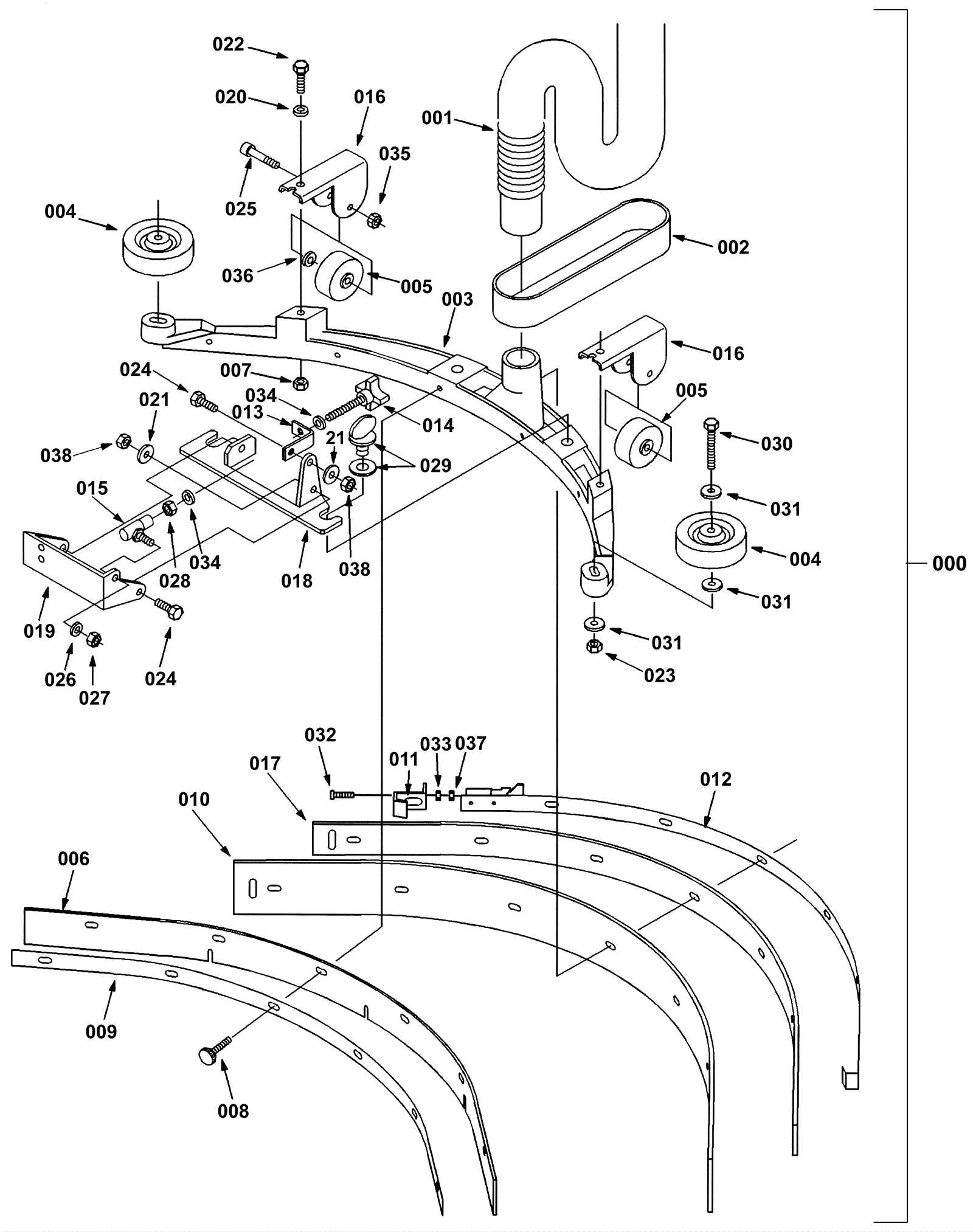

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-5480
|
20 inch (500mm) squeegee assembly |
1 |
(includes 003-012, 016, 017, 020, 022, 023, 025, 029-033 and 035-037) |
|
001 |
175-5481
|
Squeegee hose assembly (OBSOLETE) |
1 |
|
|
002 |
175-4772
|
Hose bracket |
1 |
|
|
003 |
175-4773
|
20 inch (500mm) squeegee weldment |
1 |
|
|
004 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
005 |
175-4710
|
Rubber wheel |
2 |
|
|
006a |
175-2976
|
Squeegee blade 30 inch gum rubber front (tan) (OBSOLETE) |
1 |
|
|
006b |
175-4778
|
Squeegee blade 30 inch (760mm) urethane front (OBSOLETE) |
1 |
|
|
006c |
175-4777
|
Squeegee blade 30 inch (760mm) linatex front (red) (OBSOELTE |
1 |
|
|
007 |
999-0069
|
Nut 5/16-18 hex |
2 |
|
|
008 |
175-3718
|
Knob |
6 |
|
|
009 |
175-5482
|
Squeegee front strap |
1 |
|
|
010a |
175-2975
|
Squeegee blade 32 inch gum rubber rear (tan) (OBSOLETE) |
1 |
|
|
010b |
175-5484
|
Squeegee blade 32 inch urethane rear (black) |
1 |
|
|
010c |
175-4780
|
Squeegee blade 32 inch linatex rear (red) |
1 |
|
|
011 |
175-4782
|
Squeegee band clip |
1 |
|
|
012 |
175-4783
|
20 inch (500mm) squeegee strap assembly |
1 |
|
|
013 |
175-4784
|
Pivot bracket (OBSOLETE) |
1 |
|
|
014 |
175-4785
|
Squeegee tip adjustment knob |
1 |
|
|
015 |
175-4786
|
Ball joint |
1 |
|
|
016 |
175-4787
|
Back-up wheel bracket |
2 |
|
|
017 |
175-5483
|
Semi-curve back up strip (OBSOLETE) |
1 |
|
|
018 |
175-4788
|
Squeegee attachment bracket |
1 |
|
|
019 |
175-4632
|
Tip adjustment bracket |
1 |
|
|
020 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
021 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
022 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
023 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
024 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
3 |
|
|
025 |
175-4789
|
Screw 5/16 x 1 1/4 shoulder |
2 |
|
|
026 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
027 |
999-1238
|
Nut 5/16-24 hex stainless steel |
1 |
|
|
028 |
999-0296
|
Nut 5/16-24 nylon insert lock stainless steel |
1 |
|
|
029 |
175-4792
|
Thumb screw and washer |
2 |
|
|
030 |
175-4793
|
Screw M8-1.25 x 70mm |
2 |
|
|
032 |
175-3721
|
Screw M5-.8 x 45mm |
1 |
|
|
033 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
1 |
|
|
034 |
999-1530
|
Washer 3/8 flat nylon |
2 |
|
|
035 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
036 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
037 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
038 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
