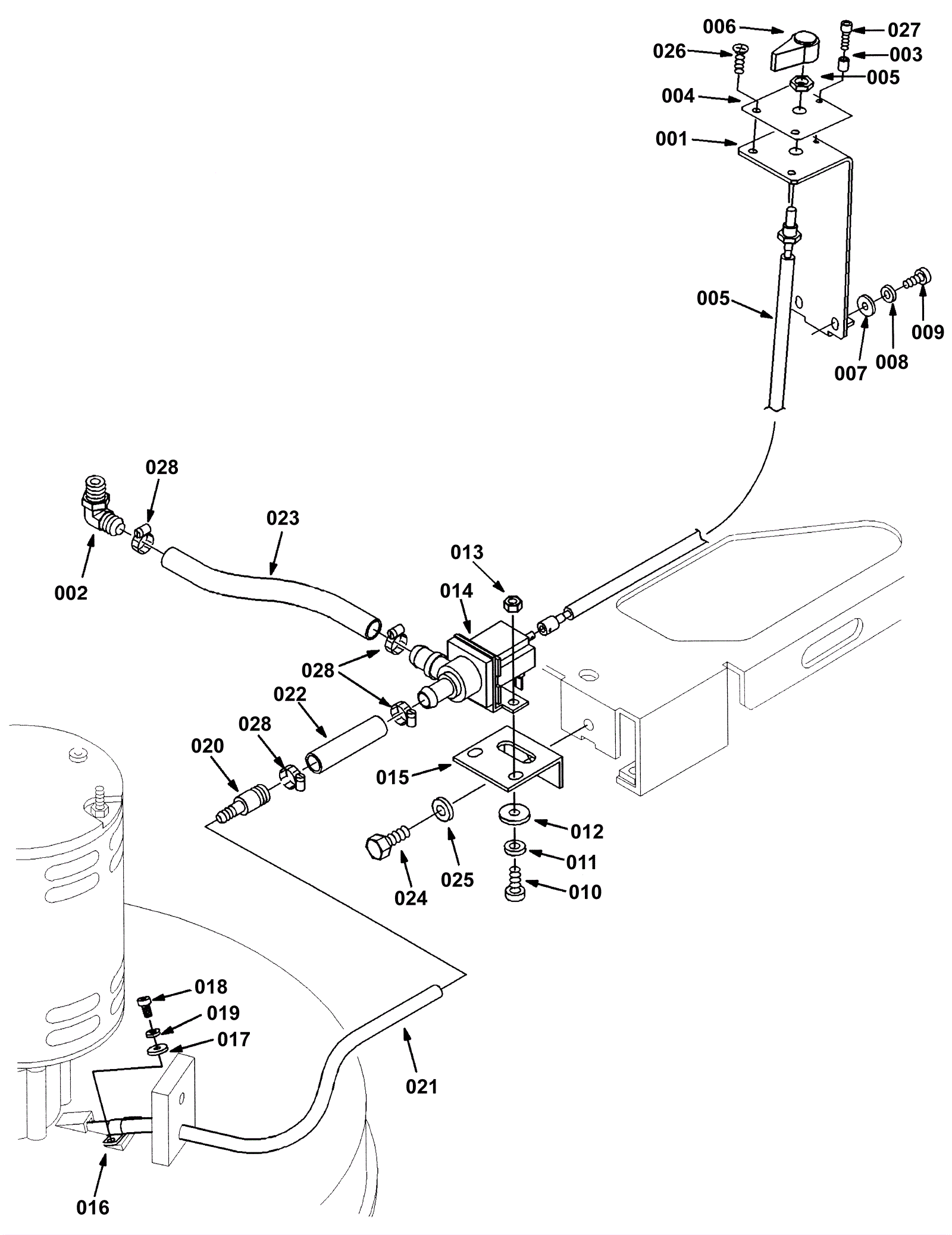

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-4731
|
Bracket (OBSOLETE) |
1 |
|
|
002 |
175-7834
|
Plastic fitting |
1 |
|
|
003 |
175-4732
|
Nylon spacer |
1 |
|
|
004 |
175-4733
|
Flow control decal (OBSOLETE) |
1 |
|
|
005 |
175-4734
|
Water flow control cable (OBSOLETE) |
1 |
|
|
006 |
175-4735
|
Valve adjustment knob |
1 |
|
|
007 |
999-0803
|
Washer M5 flat plain finish |
2 |
|
|
008 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
009 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
|
|
010 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
011 |
999-1117
|
Washer M6 split lock stainless steel |
2 |
|
|
012 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
013 |
999-0439
|
Nut M6-1 hex coarse thread |
2 |
|
|
014 |
175-9030
|
Solenoid valve |
1 |
|
|
015 |
175-4736
|
Valve bracket (OBSOLETE) |
1 |
|
|
016 |
175-0339
|
P clamp |
1 |
|
|
017 |
999-9089
|
Washer M4 flat stainless steel |
1 |
|
|
018 |
999-1042
|
Screw M4-1 x 12mm pan head phillips zinc |
1 |
|
|
019 |
999-1083
|
Washer #8 internal star lock stainless steel |
1 |
|
|
020 |
175-4738
|
Fitting |
1 |
|
|
021 |
175-4739
|
Hose |
1 |
|
|
022 |
175-4740
|
Hose |
1 |
(from solenoid to reducer) |
|
023 |
175-9026
|
Hose |
1 |
(from tank to solenoid) |
|
024 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
025 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
1 |
|
|
026 |
175-2897
|
Screw M5 x 16mm |
2 |
|
|
027 |
175-4741
|
Screw M4 x 12mm |
1 |
|
|
028 |
175-6081
|
Hose clamp |
4 |
|
|
