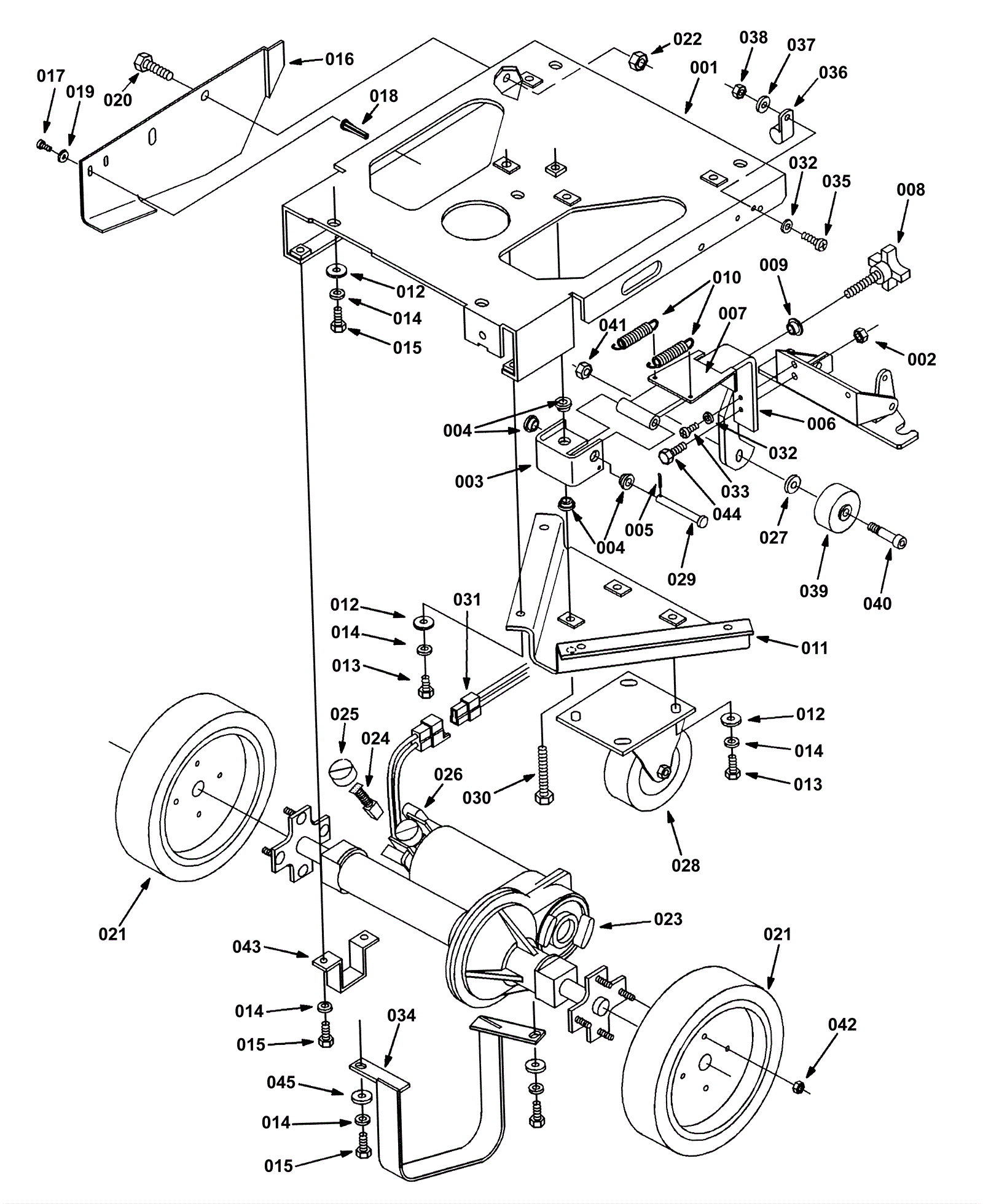

5300 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5467 Chassis (OBSOLETE) $284.30 1 usually ships 1-5 days
002 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
003 175-4640 Squeegee lift bracket (OBSOLETE) $41.90 1 usually ships 1-5 days
004 175-5363 Seal (OBSOLETE) Call for price 4 usually ships 1-5 days
005 175-6176 Cotter pin $2.20 1 ships same day
006 175-5458 Squeegee pivot arm $123.00 1 usually ships 5-16 days
007 N/A Not available Call for price 1 (spring slide bracket) usually ships 3-26 days
008 175-5460 Knob (OBSOLETE) $16.30 1 usually ships 5-16 days
009 175-5461 Bearing $31.20 1 usually ships 5-16 days
010 175-5462 Extension spring $16.30 2 usually ships 1-5 days
011 175-4638 Caster wheel mounting frame (OBSOLETE) $142.50 1 usually ships 1-5 days
012 999-0024 Washer 5/16 flat stainless steel $1.34 17 ships same day
013 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 12 ships same day
014 999-1053 Washer 5/16 internal star lock stainless steel $0.99 19 ships same day
015 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 11 ships same day
016 175-4641 Safety bracket (OBSOLETE) $20.20 1 usually ships 1-5 days
017 999-0434 Screw 6 x 3/8 pan head phillips $0.99 2 ships same day
018 175-4642 Screw #6 anchor $2.16 2 usually ships 1-5 days
019 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
020 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 1 ships same day
021a 175-3017 Neoprene solid wheel $235.40 2 usually ships 5-16 days
021b 175-4209 Air filled (pneumatic) tire $44.70 2 usually ships 5-16 days
021c 175-3652 Foam filled wheel $171.90 2 ships same day
021d 175-4210 Neoprene solid wheel kit (pkg of 2) $487.60 1 usually ships 5-16 days
021e 175-3146 Air filled (pneumatic) tire kit (pkg of 2) (OBSOLETE) $105.60 1 usually ships 5-16 days
021f 175-3147 Foam filled tire kit (pkg of 2) (OBSOLETE) $205.50 1 usually ships 5-16 days
022 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
023a 175-3013 24V transaxle kit $1,633.20 1 ships same day
023b 175-5451 24V brush motor assembly $1,681.40 1 ships same day
024 175-3015 Carbon brush (sold individually) $60.60 2 usually ships 5-16 days
025 175-3014 Cap $22.40 2 usually ships 5-16 days
026 N/A Not available Call for price 1 (Transaxle motor end bell) usually ships 3-26 days
027 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
028a 175-2991 4 inch caster wheel $50.62 1 (OEM) ships same day
028b 991-2016 4 inch caster wheel $46.62 1 (NON-OEM) ships same day
029 175-4637 Clevis pin $5.00 1 usually ships 1-5 days
030 175-4639 Bolt 3/8 x 2 shoulder $20.30 1 usually ships 1-5 days
031 175-5463 Main wiring harness (OBSOLETE) $119.90 2 usually ships 1-5 days
032 999-1117 Washer M6 split lock stainless steel $0.99 1 ships same day
033 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 1 ships same day
034 175-5464 Motor cap guard (OBSOLETE) $30.20 1 usually ships 1-5 days
035 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 1 ships same day
036 175-4629 P clamp $2.90 1 usually ships 5-16 days
037 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
038 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
039 991-2013 Wheel $6.80 1 ships same day
040 175-5465 Screw 3/8 x 1 $27.10 1 usually ships 5-16 days
041 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
042 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
043 175-5466 Transaxle mounting bracket $191.40 2 usually ships 1-5 days
044 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
045 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
