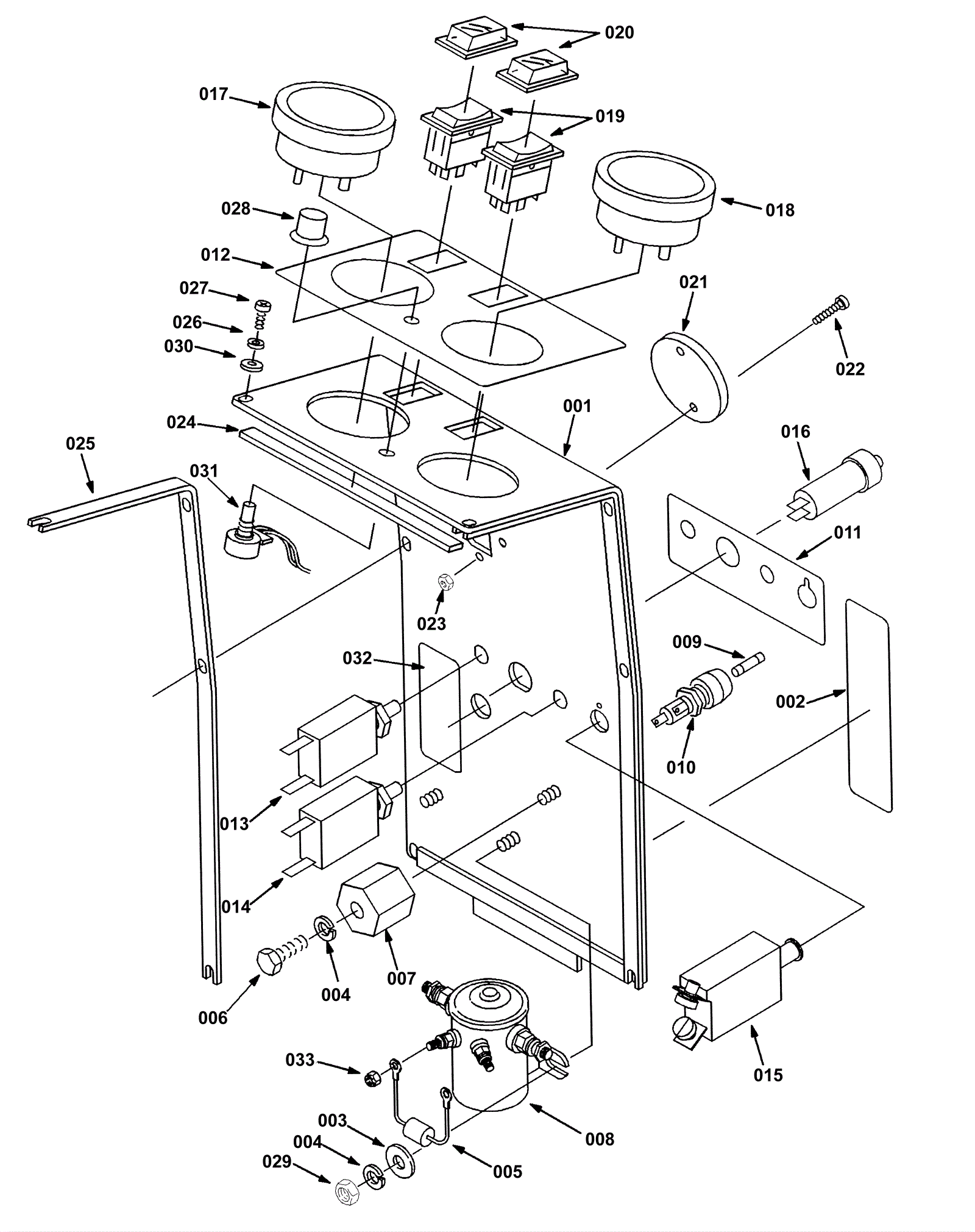

5300 Console Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4613 Switch plate (OBSOLETE) $67.76 1 usually ships 1-5 days
002 175-4614 Battery charger decal $26.07 1 usually ships 5-16 days
003 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
004 999-1117 Washer M6 split lock stainless steel $0.99 3 ships same day
005 175-2757 Diode with ring terminals (small) $11.11 1 usually ships 5-16 days
006 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
007 175-3226 Insulated stand off $9.35 1 ships same day
008 175-2023 24V solenoid contactor $62.15 1 ships same day
009 175-5447 2amp fast blow fuse $8.25 1 usually ships 5-16 days
010 175-5010 Fuse holder $10.12 1 usually ships 5-16 days
011 175-5448 Circuit breaker decal (OBSOLETE) $8.03 1 usually ships 1-5 days
012 175-5449 Gauge and switch panel decal (OBSOLETE) $19.58 1 usually ships 1-5 days
013a 175-1186 15amp circuit breaker $17.93 1 (machine propel) ships same day
013b 991-8539 15amp circuit breaker $7.74 1 ships same day
014 175-1482 17amp circuit breaker $43.67 1 (vacuum fan) usually ships 5-16 days
015 175-2762 35amp circuit breaker $136.51 1 (scrub brush) usually ships 5-16 days
016 175-4618 7amp circuit breaker $141.79 1 (main power) usually ships 5-16 days
017 175-4619 Brush pressure gauge $63.25 1 usually ships 5-16 days
018 175-4282 Battery meter $67.76 1 usually ships 5-16 days
019 175-2847 Rocker switch $11.99 2 (main power and solution) usually ships 5-16 days
020 175-2848 Rocker switch splash guard $19.36 2 usually ships 5-16 days
021 175-4620 Cover plate (OBSOLETE) $13.86 1 usually ships 1-5 days
022 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 2 ships same day
023 999-0955 Nut M4-.7 hex nylon lock $1.52 2 ships same day
024 175-4292 Console gasket $17.71 2 ships same day
025 175-4291 Console gasket $3.30 2 usually ships 5-16 days
026 999-1083 Washer #8 internal star lock stainless steel $0.99 8 ships same day
027 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 8 ships same day
028 175-4281 Potentiometer knob $13.75 1 usually ships 5-16 days
029 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
030 999-9089 Washer M4 flat stainless steel $0.99 8 ships same day
031 175-5450 Speed control resistor $54.23 1 usually ships 5-16 days
032 175-4902 Fuse decal (OBSOLETE) $9.02 1 usually ships 1-5 days
033 999-0460 Nut 10-32 hex $0.99 2 ships same day
N/S 175-4621 Main waterproof harness (OBSOLETE) $233.53 1 usually ships 1-5 days
