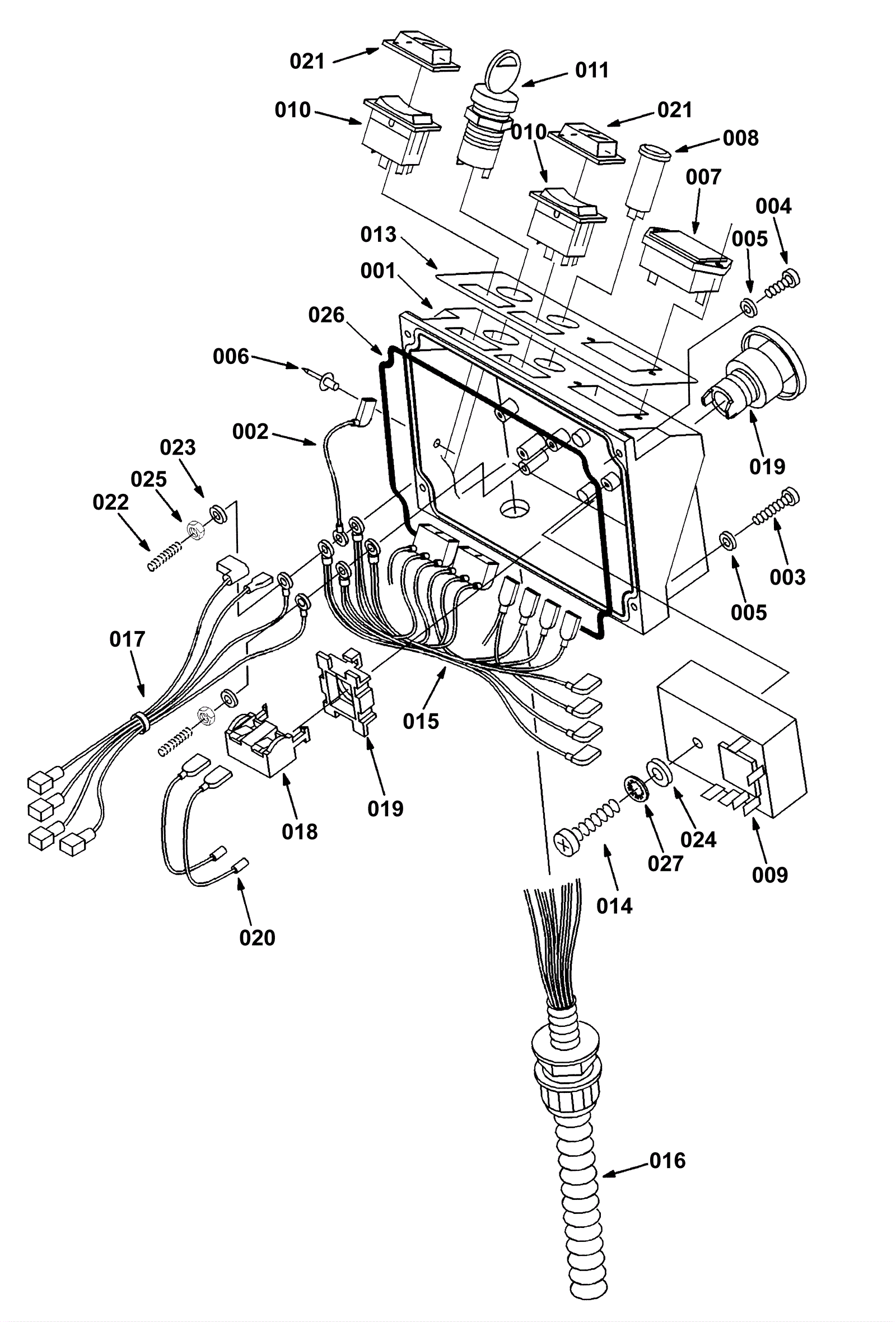

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
175-4597
|
Console |
$87.50
|
1 |
|
usually ships 1-5 days |
002 |
175-4598
|
Key switch wiring assembly (OBSOLETE) |
$1.44
|
1 |
|
usually ships 1-5 days |
003 |
999-1518
|
Screw M4-.7 x 30mm pan head phillips zinc plated |
$0.99
|
2 |
|
ships same day |
004 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
005 |
999-1083
|
Washer #8 internal star lock stainless steel |
$0.99
|
4 |
|
ships same day |
006 |
175-4600
|
Snap rivet |
$3.80
|
1 |
|
usually ships 1-5 days |
007 |
175-1213
|
Hour meter |
$116.10
|
1 |
|
usually ships 1-5 days |
008 |
175-4601
|
24V pilot light (blue) |
$5.50
|
1 |
|
usually ships 1-5 days |
009 |
175-2845
|
Relay |
$77.61
|
1 |
|
ships same day |
010 |
175-2847
|
Rocker switch |
$10.90
|
2 |
(extended scrub and power wand) |
usually ships 5-16 days |
011a |
175-3727
|
Key switch |
$176.90
|
1 |
|
usually ships 5-16 days |
011b |
175-0185
|
Double sided key (steel) |
$14.00
|
2 |
|
ships same day |
013a |
175-4604
|
Extended scrub decal (key, hour meter, light, wand, pump) |
$12.80
|
1 |
|
usually ships 1-5 days |
013b |
175-4603
|
Extended scrub decal (key, hour meter, light) |
$8.70
|
1 |
|
usually ships 1-5 days |
013c |
175-4605
|
Wand pump decal (OBSOLETE) |
$7.60
|
1 |
|
usually ships 1-5 days |
013d |
175-4606
|
Decal (key, hour meter, wand pump) (OBSOLETE) |
$19.90
|
1 |
|
usually ships 1-5 days |
013e |
175-4602
|
Decal (key and hour meter) (OBSOLETE) |
$7.80
|
1 |
|
usually ships 1-5 days |
014 |
175-4607
|
Screw #6 self-tapping (OBSOLETE) |
$1.44
|
1 |
|
usually ships 1-5 days |
015 |
175-4608
|
Extended scrub wiring connections (OBSOLETE) |
$63.20
|
1 |
|
usually ships 1-5 days |
016 |
175-7344
|
Extended scrub main wiring harness (OBSOLETE) |
$134.70
|
1 |
|
usually ships 1-5 days |
017 |
175-4610
|
Accessory harness (OBSOLETE) |
$9.50
|
1 |
|
usually ships 1-5 days |
018 |
275-1416
|
Safety shut-off switch |
$36.37
|
1 |
|
ships same day |
019 |
275-1416
|
Safety shut-off switch |
$36.37
|
1 |
|
ships same day |
020 |
175-4897
|
Wire assembly (OBSOLETE) |
$11.60
|
1 |
|
usually ships 1-5 days |
021 |
175-2848
|
Rocker switch splash guard |
$17.60
|
2 |
|
usually ships 5-16 days |
022 |
175-4611
|
Stud (OBSOLETE) |
$2.16
|
2 |
|
usually ships 1-5 days |
023 |
999-1083
|
Washer #8 internal star lock stainless steel |
$0.99
|
2 |
|
ships same day |
024 |
999-0377
|
Washer 6 SAE flat plain finish |
$0.99
|
1 |
|
ships same day |
025 |
999-0869
|
Nut M4-.7 hex coarse thread plain finish |
$0.99
|
2 |
|
ships same day |
026 |
175-8765
|
O-ring seal |
$14.60
|
1 |
|
usually ships 1-5 days |
027 |
999-0053
|
Washer #10 split lock plain finish |
$0.99
|
1 |
|
ships same day |
KIT |
175-4593
|
Extended scrub key switch and hour meter kit (OBSOLETE) |
$819.80
|
1 |
|
usually ships 1-5 days |
KIT |
175-4594
|
Key switch, hour meter and wand pump kit (OBSOLETE) |
$2,036.40
|
1 |
|
usually ships 1-5 days |
KIT |
175-4595
|
Wand pump kit (OBSOLETE) |
$490.40
|
1 |
|
usually ships 1-5 days |
KIT |
175-4596
|
Key switch, hour meter and wand pump kit (OBSOLETE) |
$618.60
|
1 |
|
usually ships 1-5 days |
KIT |
175-4893
|
Key switch, hour meter and auto-stop button kit (OBSOLETE) |
$352.30
|
1 |
|
usually ships 1-5 days |
KIT |
175-4894
|
key switch, hour meter & auto-stop button kit (OBSOLETE) |
$894.80
|
1 |
|
usually ships 1-5 days |
KIT |
175-4895
|
Pump, key switch, hr meter & button kit (OBSOLETE) |
$1,460.80
|
1 |
|
usually ships 1-5 days |
KIT |
175-4896
|
Pump, key switch, hour meter and auto-stop button kit (OBS) |
$730.80
|
1 |
|
usually ships 1-5 days |
