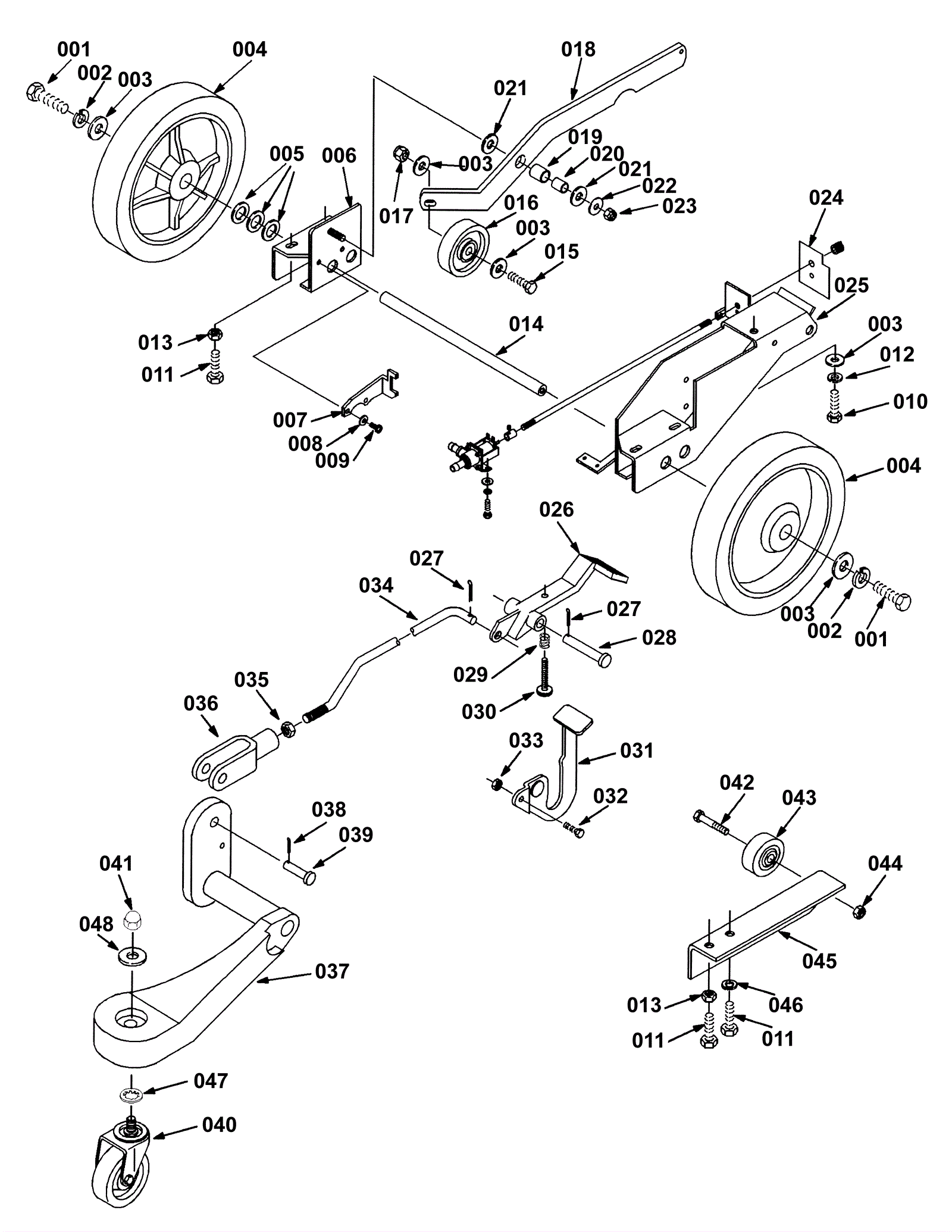

5100 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
002 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
003 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 5 ships same day
004 175-1072 8 inch wheel $142.78 2 ships same day
005 999-0187 Washer 1/2 flat plain finish $0.99 3 ships same day
006 175-5882 Axle mount weldment $76.12 1 usually ships 1-5 days
007 175-5882 Axle mount weldment $76.12 1 usually ships 1-5 days
008 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
009 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
010 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel $4.88 3 ships same day
011 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 3 ships same day
012 999-1081 Washer M10 split lock stainless steel $0.99 3 ships same day
013 999-1551 Nut M8-1.25 hex jam zinc plated $0.99 2 usually ships 1-5 days
014 175-5883 Axle $71.61 1 usually ships 1-5 days
015 175-5709 Screw 3/8-16 x 2 1/2 hex head stainless steel $5.50 1 usually ships 5-16 days
016 175-1796 Wheel and bushing $100.54 1 usually ships 5-16 days
017 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
018 175-5884 Brush mount (OBSOLETE) $30.47 1 usually ships 1-5 days
019 175-4720 Bearing $9.90 1 usually ships 5-16 days
020 175-4721 Bearing sleeve $3.04 1 usually ships 1-5 days
021 999-1156 Washer M12-.7 nylon $4.88 2 ships same day
022 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
023 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
024 175-5885 Solution control decal $4.22 1 usually ships 1-5 days
025 175-5886 Axle pedal mount $119.68 1 usually ships 1-5 days
026 175-5887 Head lift pedal $91.41 1 usually ships 1-5 days
027 175-6176 Cotter pin $3.04 2 ships same day
028 175-5888 Clevis pin 1/2 x 2 1/2 inch $5.83 1 usually ships 1-5 days
029 175-5889 Compression spring $5.83 1 usually ships 5-16 days
030 175-5890 Knob 5/16-18 inch $37.07 1 usually ships 1-5 days
031 175-5891 Release pedal $57.75 1 usually ships 1-5 days
032 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 1 ships same day
033 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
034 175-5892 Caster mount rod $121.00 1 usually ships 5-16 days
036 175-5893 Adjustment yoke $50.71 1 usually ships 1-5 days
037 175-5859 Caster mount $146.30 1 usually ships 1-5 days
038 175-1514 Cotter hair pin $4.88 1 ships same day
039 175-5894 Clevis pin $5.50 1 usually ships 5-16 days
040a 175-3508 3 inch swivel caster wheel $65.01 1 (OEM) ships same day
040b 993-3011 CASTER, SWIVEL, 3.0D 1.3W, .50-13 STEM $32.90 1 (NON-OEM) usually ships 1-5 days
041 999-0330 Nut 1/2-13 acorn brass $5.72 1 ships same day
042 175-5465 Screw 3/8 x 1 $29.81 1 usually ships 5-16 days
043 991-2013 Wheel $8.70 1 ships same day
044 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
045 175-5895 Stop bracket $46.53 1 usually ships 1-5 days
046 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
047 999-0840 Washer 9/16 internal tooth lock stainless steel $0.99 1 ships same day
048 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
