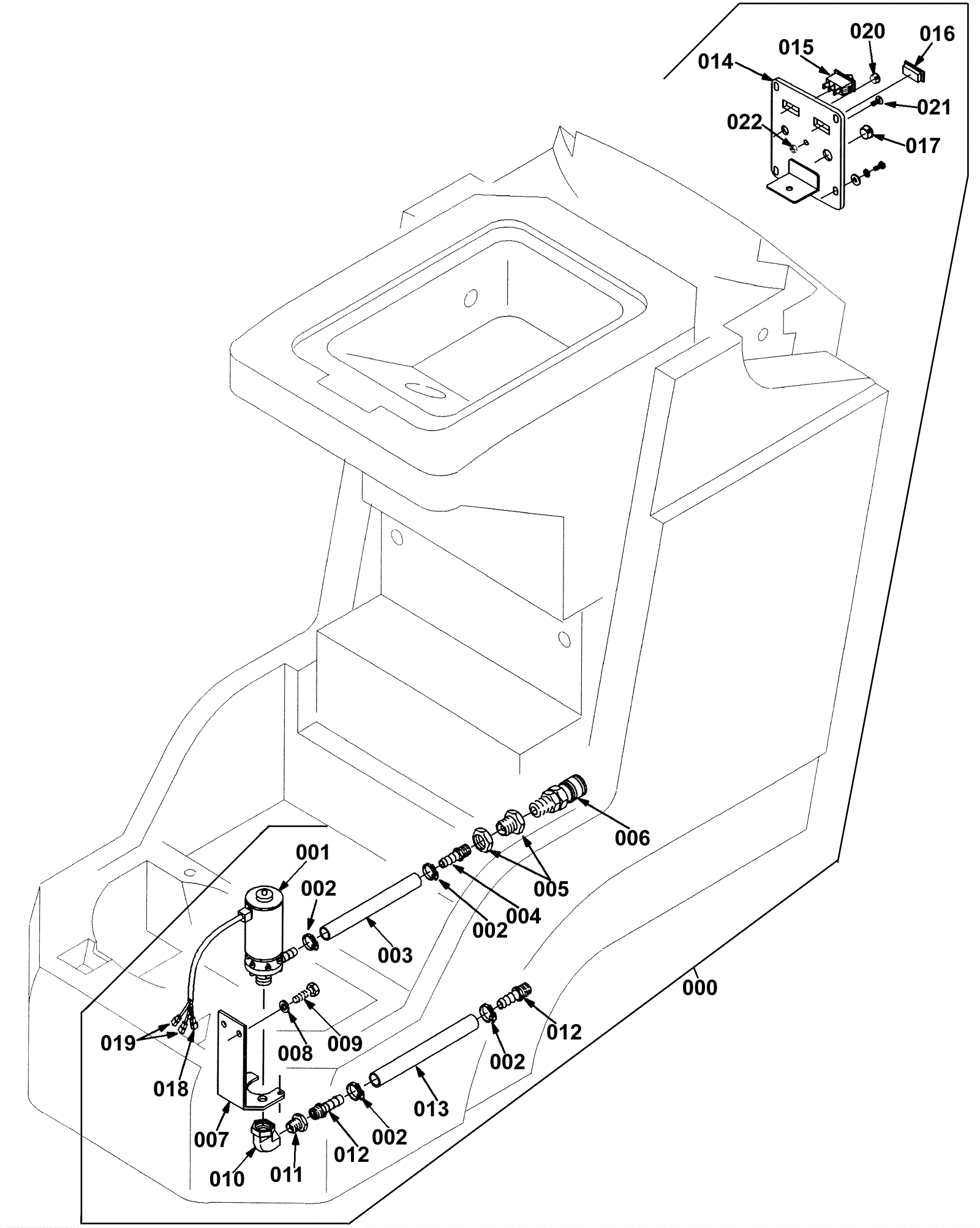

5100 Wand Pump Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-5896 Wand pump kit (OBSOLETE) $392.04 1 (includes 001 thru 022) usually ships 1-5 days
001 175-2840 24V solution pump $273.13 1 usually ships 5-16 days
002 175-6081 Hose clamp $4.84 1 ships same day
003 175-6318 Hose 3/8 x 8 inch $24.20 1 usually ships 5-16 days
004 175-2613 Straight brass fitting $5.50 1 usually ships 5-16 days
005 175-4814 Brass strainer fitting $29.81 1 ships same day
006 175-9723 Brass female quick connect fitting $62.48 1 usually ships 1-5 days
007 175-5897 Wand pump bracket (OBSOLETE) $25.74 1 usually ships 1-5 days
008 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
009 175-5113 Bolt M6 x 12mm hex head $3.04 2 usually ships 1-5 days
010 175-4806 Pipe fitting (OBSOLETE) $17.49 1 usually ships 1-5 days
011 175-4807 Fitting $6.16 1 usually ships 1-5 days
012 175-4808 Hose barb $5.50 2 usually ships 5-16 days
013 175-5898 Hose 3/8 x 24 inch $21.34 1 usually ships 5-16 days
014 175-5899 Wand control panel $71.28 1 usually ships 1-5 days
015 175-2847 Rocker switch $12.32 1 usually ships 5-16 days
016 175-2698 Switch plug $6.05 1 ships same day
017 175-2701 Plug $3.83 1 ships same day
018 175-3130 Terminal ring $4.88 1 usually ships 1-5 days
019 175-0142 1/4 inch male terminal $4.88 2 usually ships 5-16 days
020 175-2829 Dome plug $5.28 1 usually ships 1-5 days
021 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 1 ships same day
022 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
KIT 175-5900 Extended scrub and wand pump kit (OBSOLETE) $804.65 1 usually ships 1-5 days
