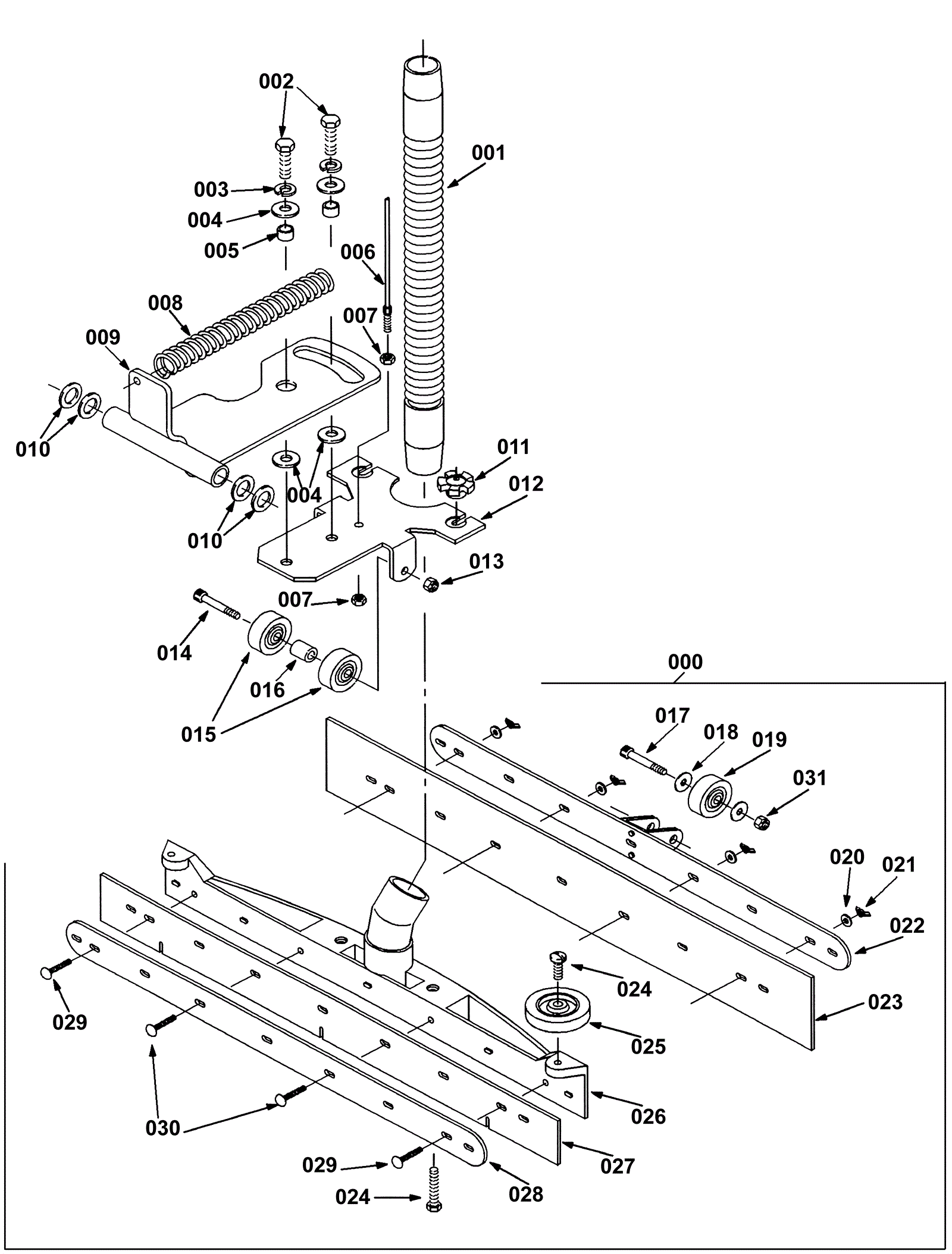

5100 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-5836 17 inch (430mm) squeegee assembly (OBSOLETE) $504.57 1 (includes 017 thru 031) usually ships 13-17 days
001 175-2060 Vacuum hose with cuffs 1 1/2 x 24 inch $67.99 1 usually ships 13-17 days
002 999-0561 Bolt 1/2-13 x 1 hex head stainless steel $3.28 2 ships same day
003 999-0126 Washer 1/2 split lock $1.28 2 ships same day
004 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
005 175-2743 Sleeved bushing $5.15 2 usually ships 13-17 days
006 175-5832 Squeegee cable (OBSOLETE) $36.96 1 usually ships 13-17 days
007a 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 (before 12-00) ships same day
007b 999-1160 Nut 1/2-20 two way lock stainless steel $4.77 2 (after 02-04) ships same day
008 175-2971 Extension spring $12.32 1 usually ships 13-17 days
009 175-5834 Squeegee pivot bracket $105.49 1 usually ships 1-5 days
010 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
011 175-2812 Knob $10.34 2 ships same day
012 175-5835 Squeegee mount bracket $212.30 1 usually ships 1-5 days
013 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
014 999-0646 Screw 5/16-18 x 3/8 socket head shoulder $3.08 1 ships same day
015 991-2013 Wheel $9.40 2 ships same day
016 175-2830 Spacer $9.70 1 ships same day
017 175-3719 Screw 3/8 x 1 1/4 shoulder $6.49 1 ships same day
018 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
019 991-2013 Wheel $9.40 1 ships same day
020 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
021 175-4332 Pivot shaft $20.46 4 ships same day
022 175-4186 Squeegee strap assembly $60.28 1 ships same day
023a 175-3501 Squeegee blade 26 1/2 inch rear gum rubber $27.17 1 usually ships 13-17 days
023b 175-3502 Squeegee blade 26 1/2 inch rear linatex $91.85 1 usually ships 13-17 days
023c 175-3503 Squeegee blade 26 1/2 inch rear urethane $132.11 1 usually ships 13-17 days
024 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel $1.65 4 ships same day
025 175-0117 Guide wheel with bushing $10.67 2 ships same day
026 175-5837 Squeegee casting (OBSOLETE) $314.16 1 usually ships 13-17 days
027a 175-3504 Squeegee blade 17 inch front gum rubber $20.68 1 usually ships 13-17 days
027b 175-3505 Squeegee blade 17 inch front linatex $66.00 1 usually ships 13-17 days
027c 175-3506 Squeegee blade 17 inch front urethane $68.64 1 usually ships 13-17 days
028 175-5838 Front retainer strap $62.59 1 ships same day
030 999-0606 Screw 1/4-20 x 2 1/2 carriage head stainless steel $1.65 2 ships same day
031 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
