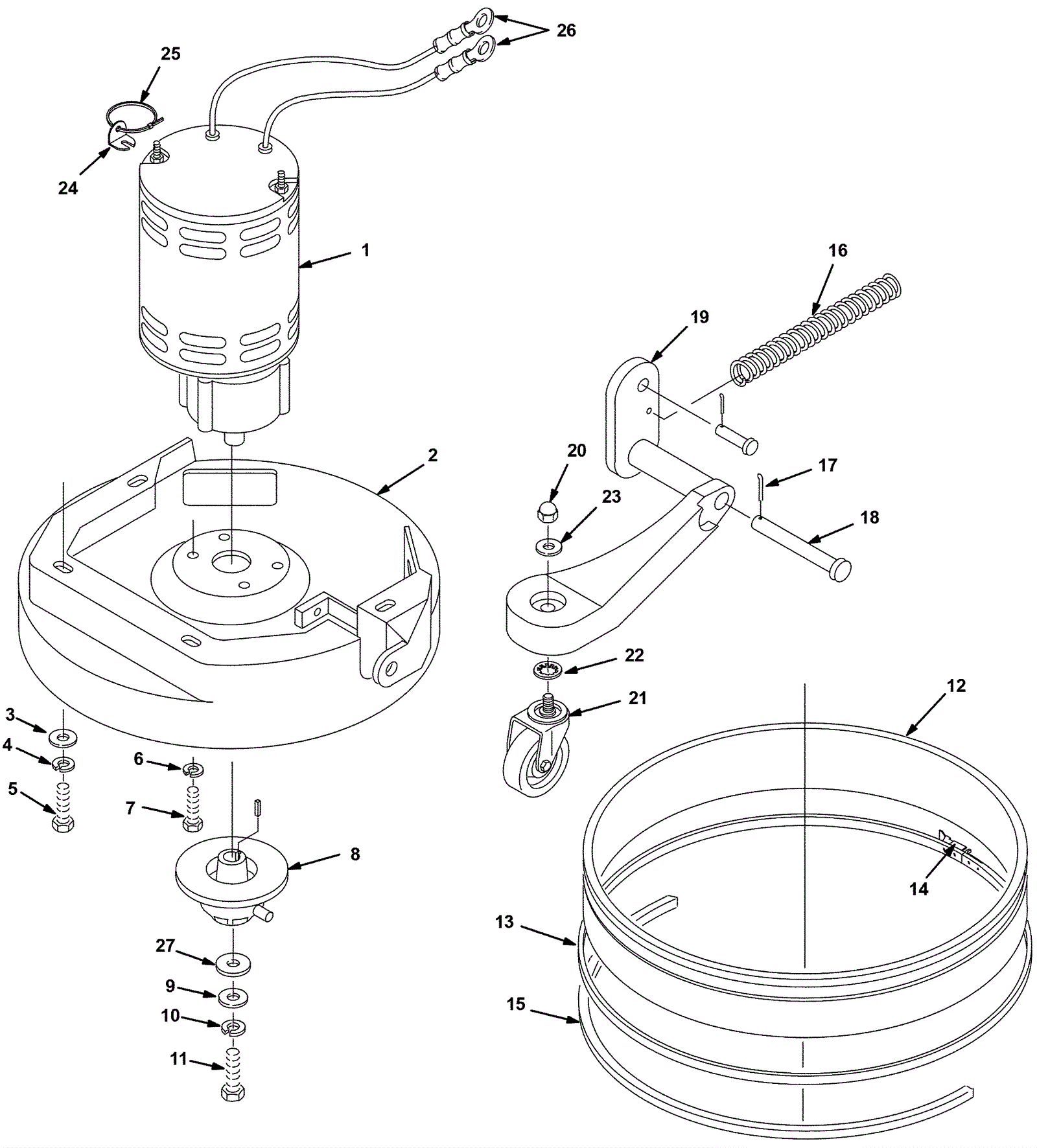

5100 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-5852 24V .75hp brush motor assembly with gear box $1,329.00 1 (OEM) (includes 1c-1e) usually ships 1-5 days
1b 991-2121 24V .75HP brush motor assembly with gear box $416.75 1 (NON-OEM) usually ships 5-16 days
1c 175-5853 Carbon brush (sold each) $39.70 4 usually ships 6-16 days
1d 175-7927 Gearbox $886.50 1 usually ships 1-5 days
1e 175-2601 Square keyway $3.60 1 usually ships 6-16 days
2 175-5854 Head casting $1,568.00 1 usually ships 1-5 days
3 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
4a 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 (after 02-04) ships same day
4b 999-1081 Washer M10 split lock stainless steel $0.99 4 (before 02-04) ships same day
5a 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 (after 02-04) ships same day
5b 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel $3.96 4 (before 02-04) ships same day
6 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
7 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
10 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
11 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 ships same day
12 175-4187 Splash guard skirt (OBSOLETE) $53.70 1 usually ships 6-16 days
13 175-0065 Skirt band assembly $52.50 1 (includes 14) usually ships 6-16 days
14 175-1428 Adjustment band fastener $24.97 1 ships same day
15 N/A Not available Call for price 1 usually ships 30-32 days
16 175-5858 Extension spring $13.10 1 usually ships 1-5 days
17 175-1514 Cotter hair pin $3.96 1 ships same day
18 175-5095 Clevis pin $10.00 1 usually ships 1-5 days
19 175-5859 Caster mount $133.00 1 usually ships 1-5 days
20 999-0330 Nut 1/2-13 acorn brass $5.20 1 ships same day
21a 175-3508 3 inch swivel caster wheel $63.69 1 (OEM) usually ships 6-16 days
21b 993-3011 CASTER, SWIVEL, 3.0D 1.3W, .50-13 STEM $29.61 1 (NON-OEM) usually ships 1-5 days
22 999-0840 Washer 9/16 internal tooth lock stainless steel $0.90 1 ships same day
23 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
24 175-5862 Wire tie bracket $10.00 1 usually ships 1-5 days
25 175-0921 Wire tie $3.60 1 usually ships 6-16 days
26 175-5863 Terminal ring $6.00 2 usually ships 1-5 days
27a 999-0187 Washer 1/2 flat plain finish $0.99 1 (after 02-04) ships same day
27b 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 (before 02-04) ships same day
