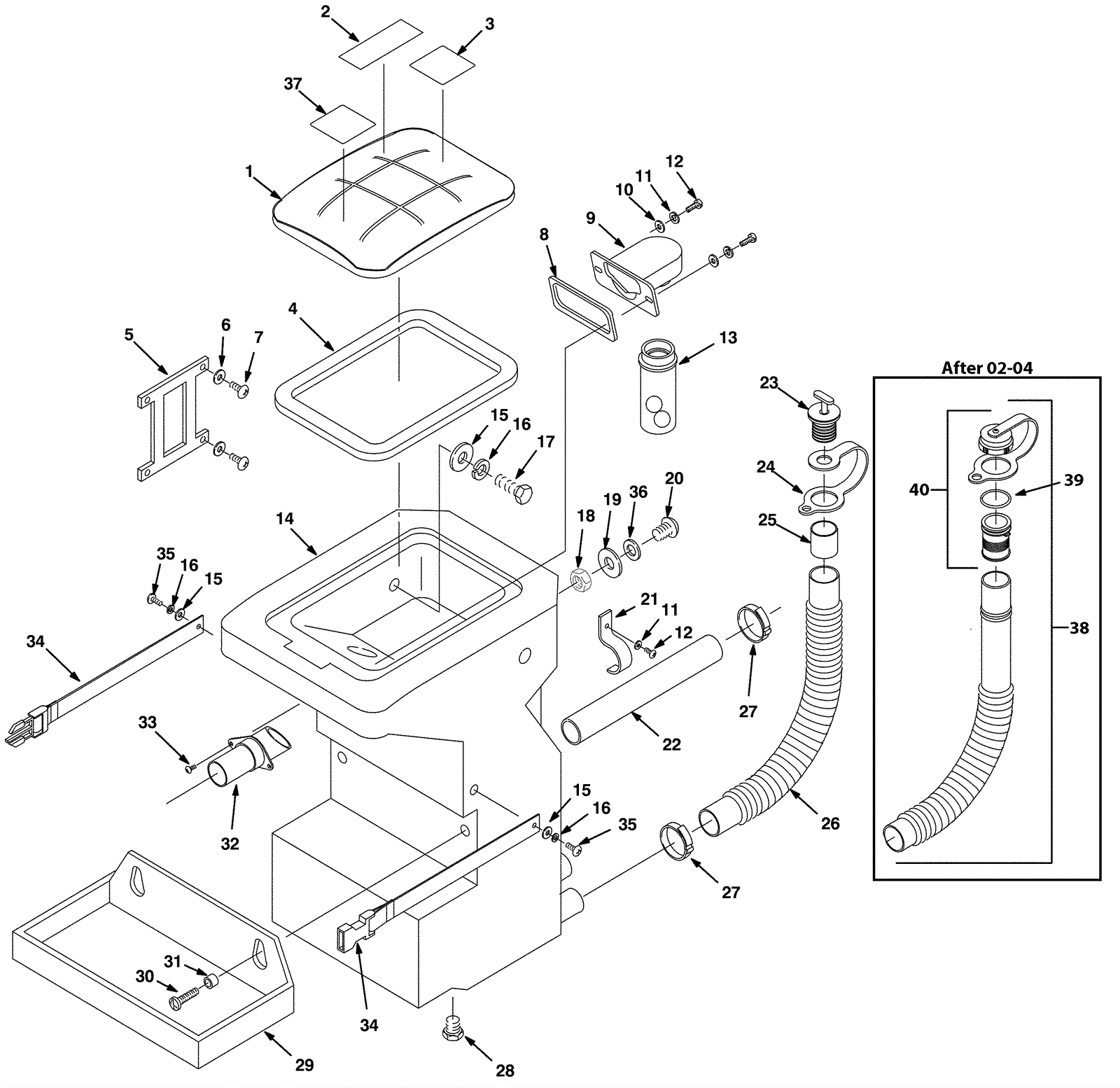

5100 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5796 Recovery tank lid and decal assembly $107.58 1 usually ships 5-16 days
2 175-4614 Battery charger decal $26.62 1 usually ships 5-16 days
3 275-2369 Flammable material decal $13.20 1 usually ships 5-16 days
4 175-4673 Recovery tank lid gasket $54.45 1 usually ships 5-16 days
5 175-1803 Tank lid hinge $12.32 1 ships same day
6 175-5797 Washer 1/6 flat zinc $4.09 4 ships same day
7 999-0434 Screw 6 x 3/8 pan head phillips $0.99 4 ships same day
8 175-4231 Float mount gasket $5.50 1 ships same day
9 175-4232 Float cage mount $20.79 1 ships same day
10 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
11 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
12 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 3 ships same day
13a 175-1804 Shut-off float $77.22 1 (OEM) ships same day
13b 991-3108 Shut off float $35.19 1 (NON-OEM) ships same day
14 175-5809 Recovery tank $775.72 1 usually ships 1-5 days
15 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
16 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
17 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
18 175-5798 Nut 5/8-11 hex nylon $15.95 1 usually ships 1-5 days
19 175-2760 Washer (rubber) $10.89 1 usually ships 1-5 days
20 175-5800 Screw 5/8-11 x 1 button head socket $16.50 1 usually ships 1-5 days
21 175-5801 Conduit clamp 1-1/4 inch (OBSOLETE) $2.51 1 usually ships 1-5 days
22 175-4007 Base inlet tube $63.03 1 usually ships 1-5 days
23 175-2653 1 1/2 inch expansion plug $57.75 1 usually ships 5-16 days
24 175-2654 Drain hose strap $21.45 1 usually ships 5-16 days
25 175-2655 Drain hose sleeve $16.50 1 usually ships 5-16 days
26 175-5803 Drain hose assembly (OBSOLETE) $92.51 1 usually ships 5-16 days
27a 175-2057 Hose clamp $5.83 2 (before 02-04) usually ships 1-5 days
27b 997-2007 Hose clamp $2.07 2 (after 02-04) ships same day
28 175-4670 3/4 inch plug $16.17 1 usually ships 5-16 days
29 175-5806 Battery tray $240.90 1 usually ships 1-5 days
30 175-5807 Screw 3/8-16 x 5/8 truss head phillips $18.92 2 usually ships 1-5 days
31 175-5808 Spacer $20.13 2 usually ships 1-5 days
32 175-0050 Hose adapter $10.89 1 ships same day
33 175-3234 Screw M5-.8 x 10mm pan head $3.96 2 usually ships 5-16 days
34 175-5805 Battery strap $79.42 1 usually ships 1-5 days
35 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
36 175-5799 Washer nylon (OBSOLETE) $2.51 1 usually ships 1-5 days
37 175-2649 Do not spray decal $5.28 1 usually ships 5-16 days
38 175-5803 Drain hose assembly (OBSOLETE) $92.51 1 (after 02-04) usually ships 5-16 days
39 175-5804 O-ring $11.77 1 ships same day
40 175-4214 Drain plug assembly $20.35 1 ships same day
