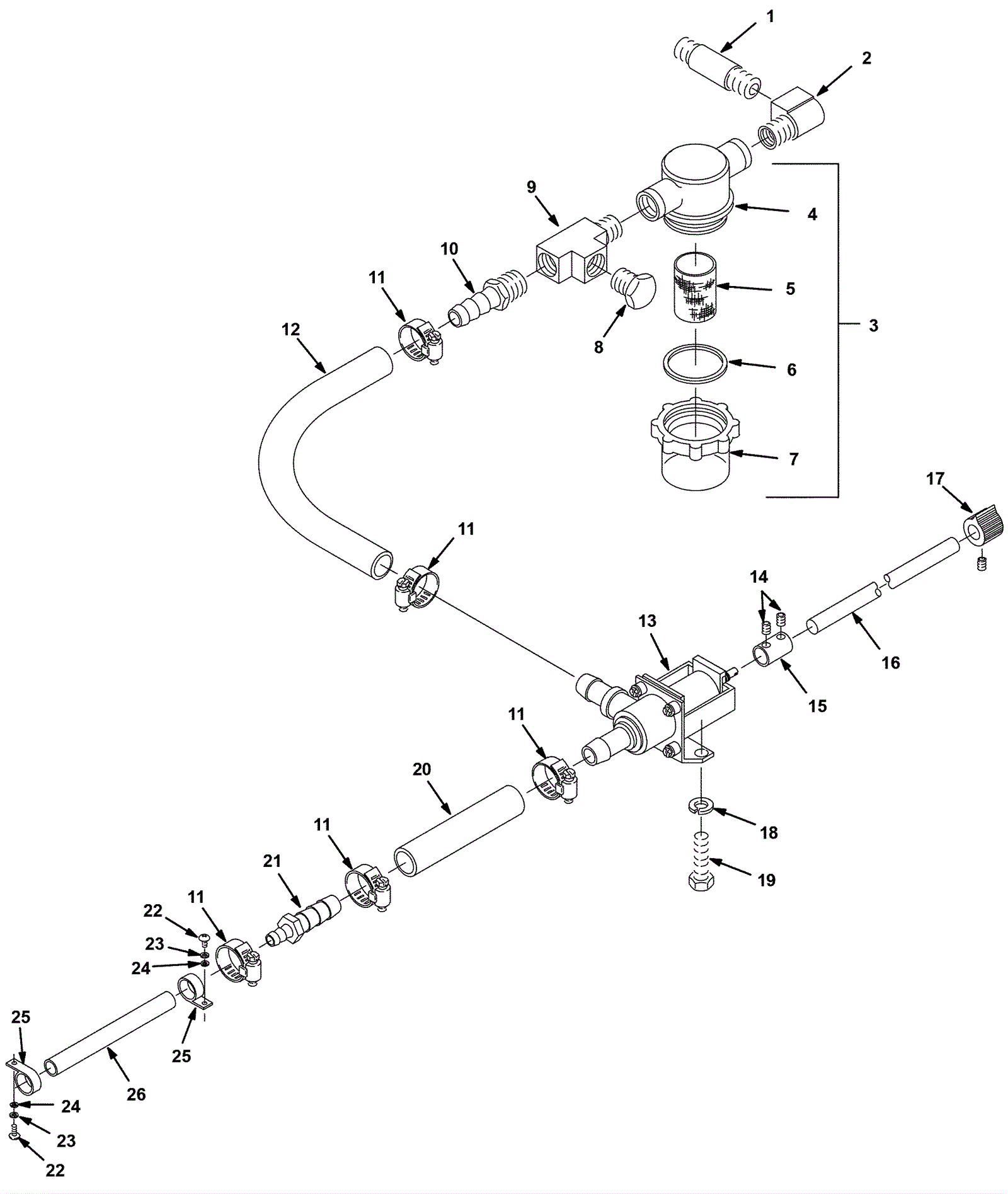

5100 Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5864 Nipple fitting (brass) $36.19 1 usually ships 1-5 days
2 175-5561 Street elbow 3/8 inch $9.57 1 usually ships 5-16 days
3 175-9025 In-line screen filter assembly $21.45 1 (includes 4-7) ships same day
4 175-5865 Top filter body housing $24.97 1 usually ships 5-16 days
5 175-5866 Mesh filter screen $12.43 1 ships same day
6 175-5867 Filter gasket $6.49 1 ships same day
7 175-5868 Short clear filter bowl $18.48 1 ships same day
8 175-4759 3/8 inch nylon plug $4.88 1 usually ships 5-16 days
9 175-5869 Tee fitting 3/8 x 3/8 inch $24.20 1 usually ships 5-16 days
10 175-1025 Straight brass fitting $6.82 1 ships same day
11 175-6081 Hose clamp $4.84 5 ships same day
12a 175-5870 Hose 1/2 x 8 inch $20.35 1 (after 02-04) usually ships 5-16 days
12b 175-9026 Hose $31.13 1 (before 02-04) usually ships 5-16 days
13 175-9030 Solenoid valve $219.62 1 usually ships 1-5 days
14 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish $0.99 2 ships same day
15 175-9029 Coupling $32.12 1 usually ships 5-16 days
16 175-9028 Water valve rod $13.09 1 usually ships 1-5 days
17 175-9027 Solution control knob $16.50 1 usually ships 5-16 days
18 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
20 175-1043 3 inch hose $42.90 1 ships same day
21 175-4738 Fitting $7.70 1 usually ships 5-16 days
22 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 2 ships same day
23 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
24 999-1652 Washer M4.3 flat $1.93 2 ships same day
25 175-0339 P clamp $4.09 2 usually ships 5-16 days
26 175-5871 Hose $7.48 1 usually ships 5-16 days
