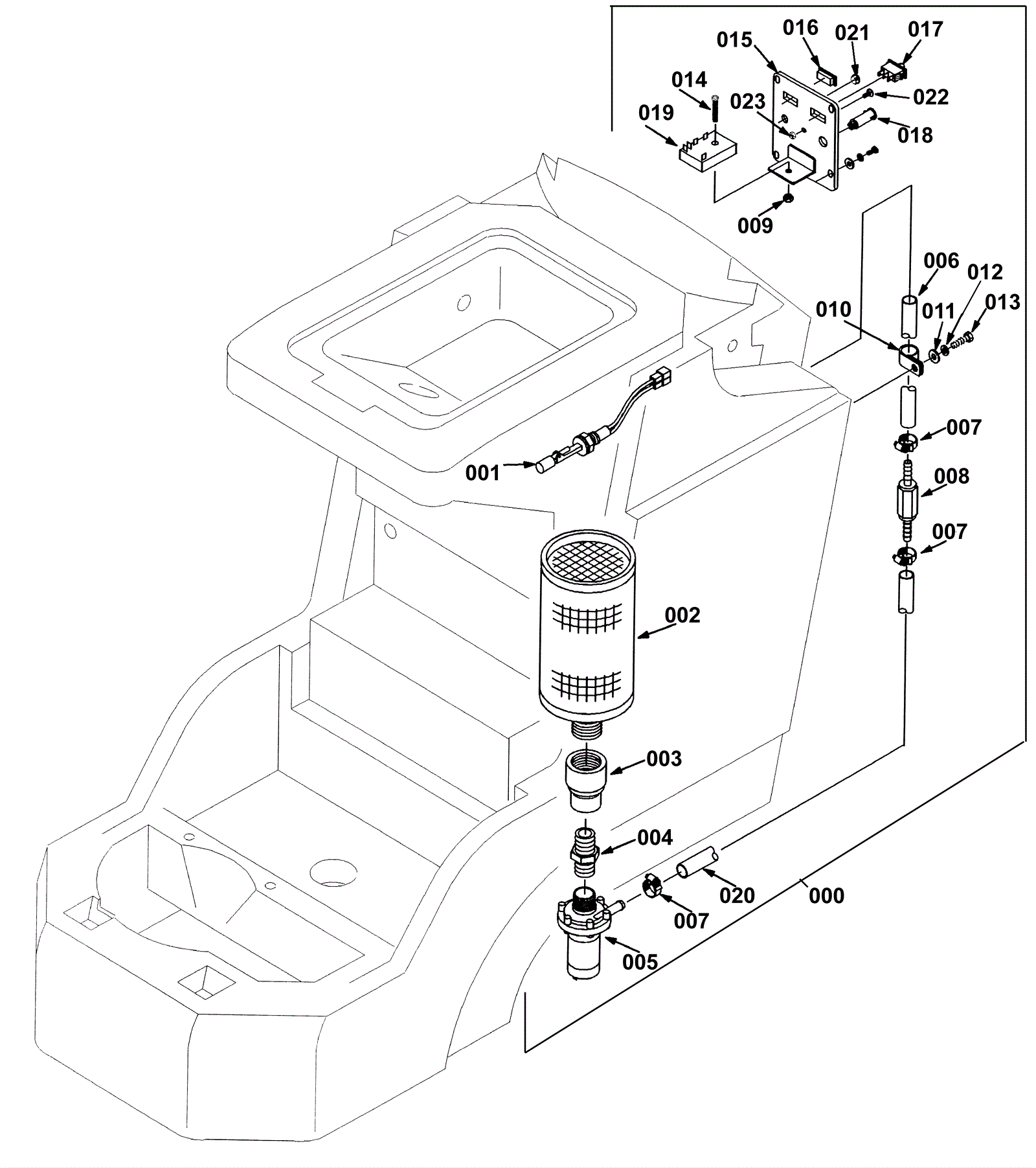

5100 ES (Extended Scrub) Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-5901 Extended scrub kit (OBSOLETE) $520.30 1 (includes 001 thru 023) usually ships 1-5 days
001 175-2835 Liquid level switch with nut $108.90 1 usually ships 1-5 days
002 175-5902 Screen filter $130.90 1 usually ships 1-5 days
003 175-5903 Reducer fitting 3/4 x 1 inch $8.36 1 usually ships 1-5 days
004 175-2837 3/4 inch nipple fitting (OBSOLETE) $3.56 1 usually ships 1-5 days
005 175-2840 24V solution pump $273.13 1 usually ships 5-16 days
006 175-5904 Hose 3/8 x 13 inch $8.47 1 usually ships 1-5 days
007 175-6081 Hose clamp $4.84 3 ships same day
008 175-2842 Check valve $47.96 1 ships same day
009 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 1 ships same day
010 175-5905 Insulated cable clamp (OBSOLETE) $1.98 1 usually ships 1-5 days
011 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
012 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
013 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 1 ships same day
014 999-1085 Screw M5-.8 x 30mm pan head phillips zinc plated $0.99 1 ships same day
015 175-5899 Wand control panel $71.28 1 usually ships 1-5 days
016 175-2698 Switch plug $6.05 1 ships same day
017 175-2847 Rocker switch $12.32 1 usually ships 5-16 days
018 175-2849 Indicator light $14.08 1 usually ships 5-16 days
019 175-2845 Relay $158.40 1 usually ships 5-16 days
020 175-5904 Hose 3/8 x 13 inch $8.47 1 usually ships 1-5 days
021 175-2829 Dome plug $5.28 1 usually ships 1-5 days
022 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 1 ships same day
023 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
