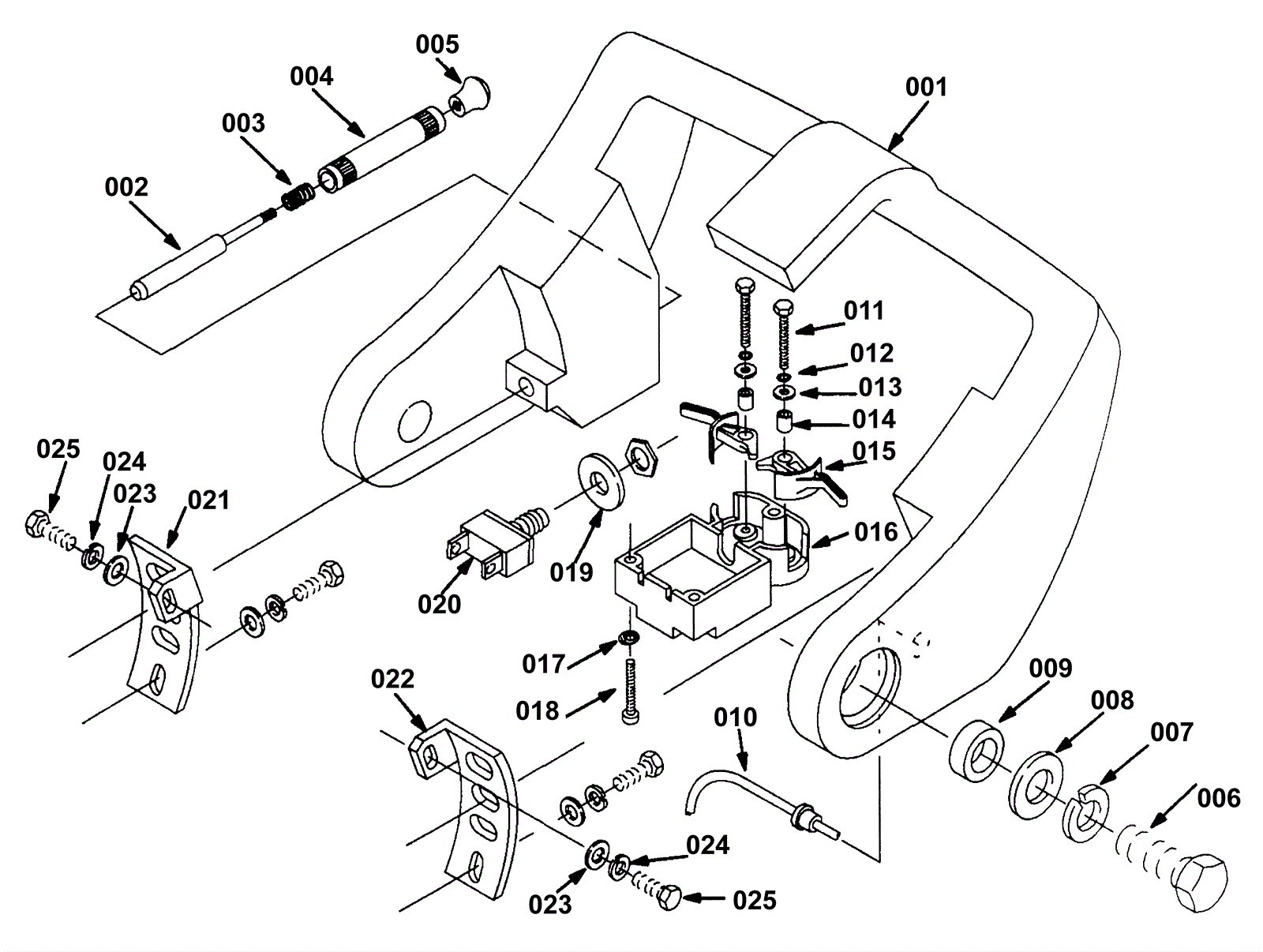

5100 Control Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001a 475-2491 HANDLE KIT, RM-SPG, TRIMMED $395.23 1 (before 02-04) usually ships 5-16 days
001b 175-5817 Green handle $303.16 1 (after 02-04) usually ships 1-5 days
002 175-5818 Handle latch pin $20.68 2 usually ships 1-5 days
003 175-5819 Compression spring $19.80 2 usually ships 1-5 days
004 175-5820 Handle latch tube $33.77 2 usually ships 1-5 days
005 175-5821 Latch knob $29.59 2 usually ships 1-5 days
006 175-5822 Bolt M12-1-3/4 x 30mm hex (OBSOLETE) $1.72 2 usually ships 1-5 days
007 999-0126 Washer 1/2 split lock $1.28 2 ships same day
008 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
009a 175-0002 Spacer (OBSOLETE) $1.58 2 (before 02-04) usually ships 1-5 days
009b 175-5823 Spacer $3.04 2 (after 02-04) usually ships 5-16 days
010 175-5824 Cord $6.66 1 usually ships 1-5 days
011 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
012 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
013 999-1115 Washer M4 flat zinc plated $0.99 2 ships same day
014 175-6384 Trigger spacer $4.49 2 usually ships 5-16 days
015 175-6383 Trigger arm (OBSOLETE) $7.37 2 usually ships 5-16 days
016 275-4697 Right hand console trigger assembly $57.86 1 ships same day
017 999-0148 Washer #6 external star lock zinc plated $0.99 3 ships same day
018 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel $0.99 3 ships same day
019 175-6386 Washer 1/2 flat spring disc zinc plated $5.50 1 usually ships 5-16 days
020 175-6400 Push button switch kit $31.79 1 ships same day
021 175-5829 Right latch bracket $15.51 1 usually ships 1-5 days
022 175-5830 Left latch bracket $27.72 1 usually ships 1-5 days
023 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
024 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
025 999-1159 Screw M8-1.25 x 20mm pan head phillips zinc plated $0.99 4 ships same day
