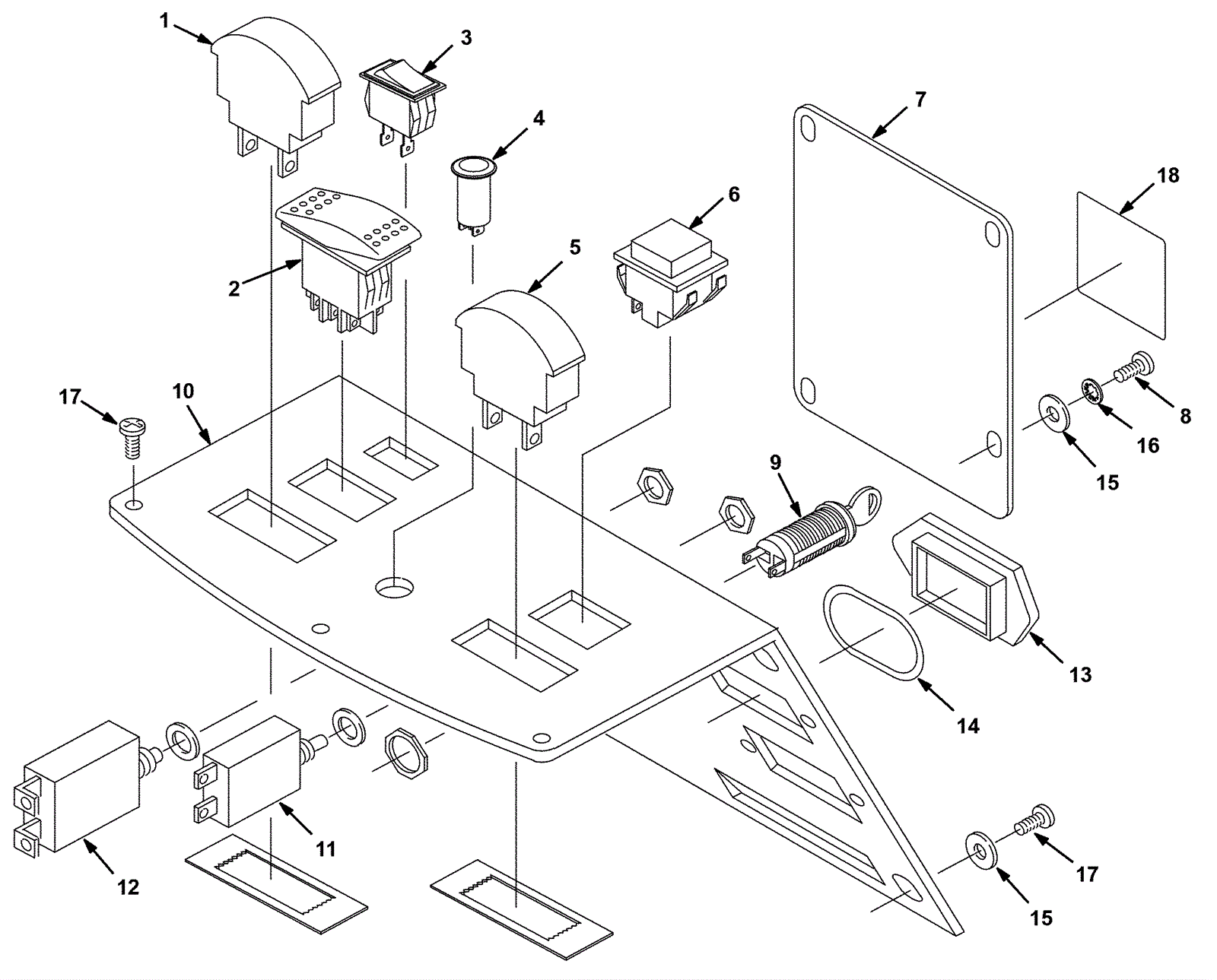

5100 Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3099 24V battery voltage meter $123.20 1 usually ships 1-5 days
2 175-1008 Rocker switch $30.91 1 (vacuum) ships same day
3 175-2847 Rocker switch $12.32 1 (solution) usually ships 5-16 days
4 175-2849 Indicator light $14.08 1 usually ships 5-16 days
5 175-5813 Brush pressure gauge $54.56 1 usually ships 1-5 days
6 175-6057 Brush pulse switch $26.62 1 (brush) usually ships 5-16 days
7 175-5814 Cover panel $42.35 1 usually ships 1-5 days
8 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 2 ships same day
9a 175-3727 Key switch $198.55 1 usually ships 5-16 days
9b 175-0185 Double sided key (steel) $15.73 1 ships same day
10 175-5795 Console panel (black) $121.00 1 usually ships 1-5 days
11 175-1483 20 amp circuit breaker $72.60 1 usually ships 5-16 days
12 175-3133 35amp circuit breaker (OBSOLETE) $55.44 1 usually ships 5-16 days
13 175-3646 Hour meter plug $10.01 2 ships same day
14 175-3144 O-ring $4.22 2 usually ships 5-16 days
15 999-0393 Washer 3/16 flat aluminum $0.99 6 ships same day
16 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
17 175-5815 Screw 10 x 1/2 pan head phillips black $3.83 7 (after 02-04) ships same day
18 175-2649 Do not spray decal $5.28 1 (after 02-04) usually ships 5-16 days
N/S 175-5816 Wire main harness (OBSOLETE) $343.20 1 usually ships 5-16 days
