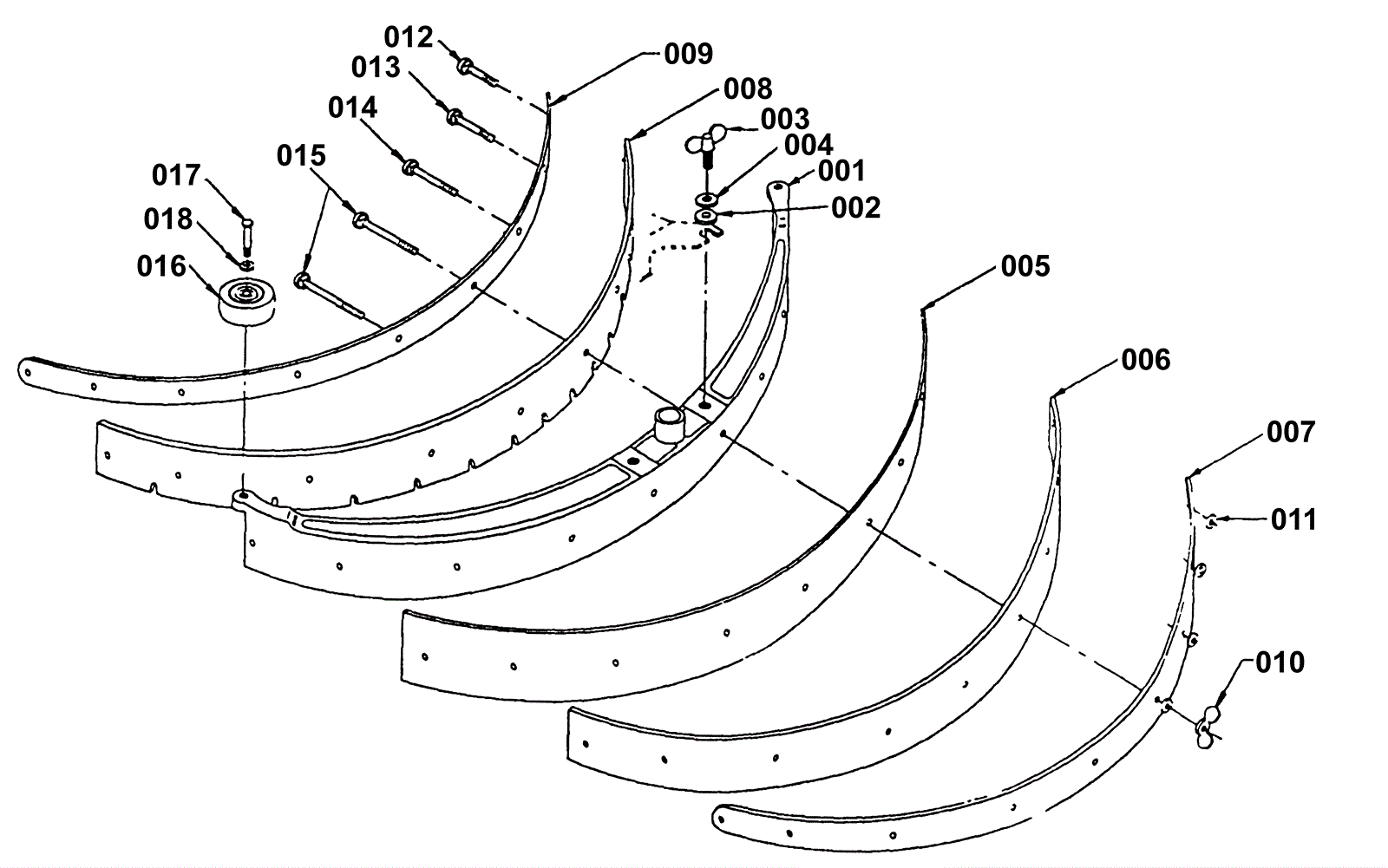

Squeegee

#PartDescription ReqNotesAvailability
001 175-5148 Squeegee weldment 1
002 175-5149 Nylon washer 2
003 999-1676 Screw 1/2-13 x 1 wing 2
004 999-0187 Washer 1/2 flat plain finish 2
005 175-2017 Inlet tube 1
006 175-2018 Hose with cuffs 1-1/2 x 25 foot (black) 1
007 175-5152 Squeegee band (OBSOLETE) 1
008 175-6545 Hose 1-1/4 x 6 feet 1
009 175-5153 Front retainer strip (OBSOLETE) 1
010 999-0306 Nut 1/4-20 wing zinc plated 8
011 999-0016 Washer 1/4 flat plain finish 8
012 999-0604 Screw 1/4-20 x 1 1/2 carriage head stainless steel 2
013 999-0605 Screw 1/4-20 x 2 carriage head stainless steel 2
014 999-0606 Screw 1/4-20 x 2 1/2 carriage head stainless steel 2
015 999-0607 Screw 1/4-20 x 3 carriage head stainless steel 2
016 175-0117 Guide wheel with bushing 2
017 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
018 999-0016 Washer 1/4 flat plain finish 2
N/S 175-5162 Squeegee link kit (OBSOLETE)
N/S 175-5160 26 inch (600mm) squeegee assembly (OBSOLETE)
N/S 175-5161 26 inch squeegee blade kit
