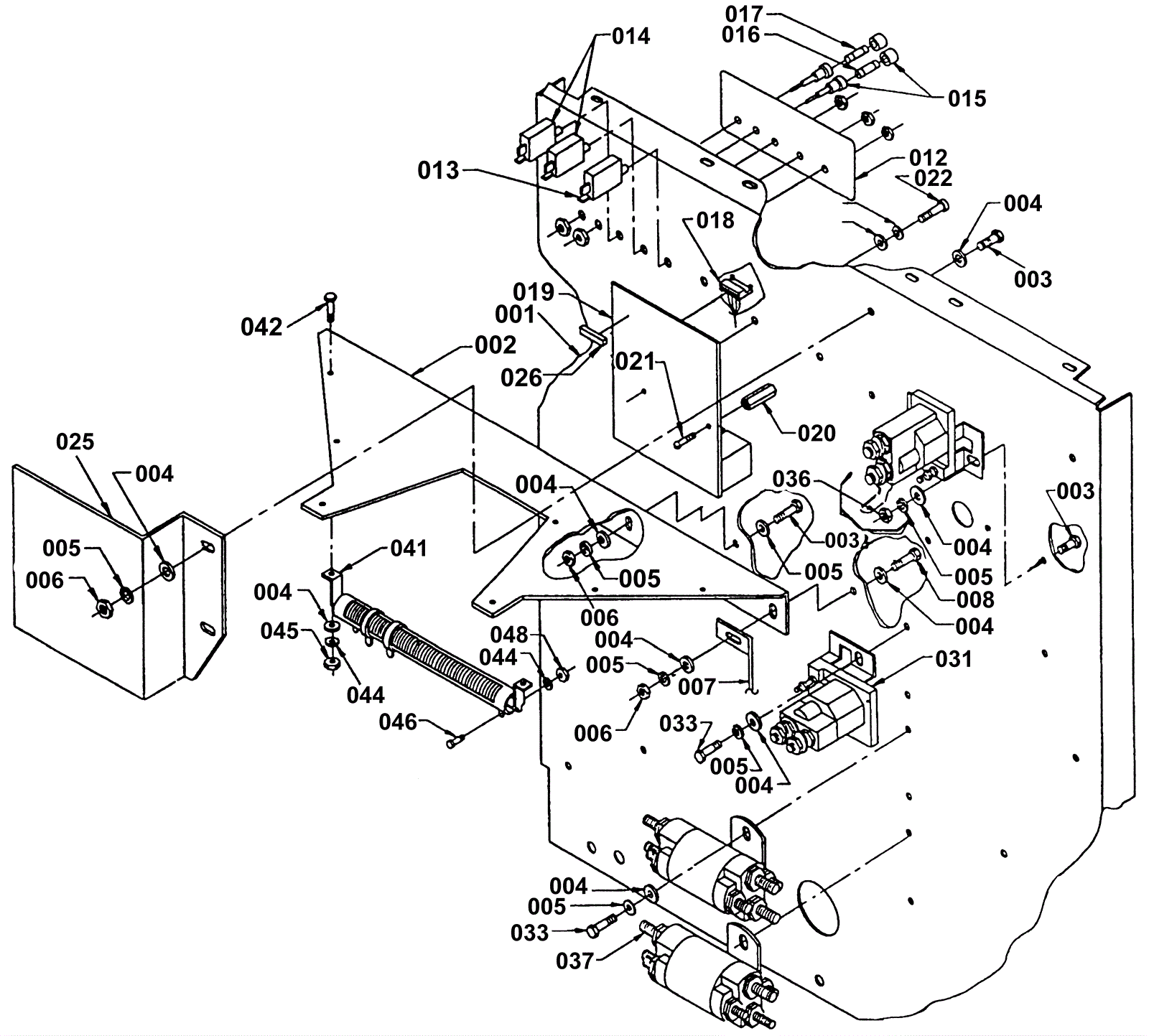

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-5001
|
Rear frame (OBSOLETE) |
1 |
|
|
002 |
175-5002
|
Stiffener rear frame (OBSOLETE) |
1 |
|
|
003 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
7 |
|
|
004 |
N/A
|
Not available |
4 |
(not available) Washer |
|
005 |
999-0632
|
Washer 1/4 split lock stainless steel |
14 |
|
|
006 |
999-0439
|
Nut M6-1 hex coarse thread |
8 |
|
|
007 |
175-5004
|
Squeegee lift handle support bracket (OBSOLETE) |
1 |
|
|
008 |
N/A
|
Not available |
1 |
(Decal) |
|
012 |
N/A
|
Not available |
1 |
Circuit breaker and fuses decal |
|
013 |
175-5008
|
10amp circuit breaker (OBSOLETE) |
1 |
|
|
014 |
175-5009
|
17 Amp circuit breaker (OBSOLETE) |
2 |
|
|
015 |
175-5010
|
Fuse holder |
2 |
|
|
016 |
175-5011
|
15amp slow-blow fuse |
2 |
|
|
017 |
175-1335
|
25 A 3ag slow-blow fuse (OBSOLETE) |
1 |
|
|
018 |
175-1336
|
Potentiometer assembly (OBSOLETE) |
1 |
|
|
019 |
175-1348
|
40amp control board |
1 |
|
|
021 |
999-1148
|
Screw 8-32 x 1/2 filister head slotted stainless steel |
2 |
|
|
022 |
999-0411
|
Screw 8-32 x 3/8 pan head slotted zinc plated |
2 |
|
|
023 |
175-0450
|
Mounting bracket (OBSOLETE) |
4 |
|
|
024 |
N/A
|
Not available |
2 |
(not available) Washer locking spring |
|
025 |
N/A
|
Not available |
1 |
(not available) Speed control shield |
|
026 |
N/A
|
Not available |
1 |
(not available) Foam strip |
|
031 |
175-5017
|
36V contactor |
2 |
|
|
033 |
999-0436
|
Bolt M6-1 x 10mm hex head full thread zinc (350B) |
6 |
|
|
037 |
175-5020
|
100amp contactor (OBSOLETE) |
2 |
|
|
041 |
175-2001
|
Resistor (OBSOLETE) |
1 |
|
|
042 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
2 |
|
|
044 |
999-0051
|
Washer #6 medium split lock |
3 |
|
|
045 |
999-0869
|
Nut M4-.7 hex coarse thread plain finish |
2 |
|
|
046 |
999-0530
|
Screw M4-.7 x 8mm pan head slotted zinc |
1 |
|
|
048 |
999-0869
|
Nut M4-.7 hex coarse thread plain finish |
1 |
|
|
