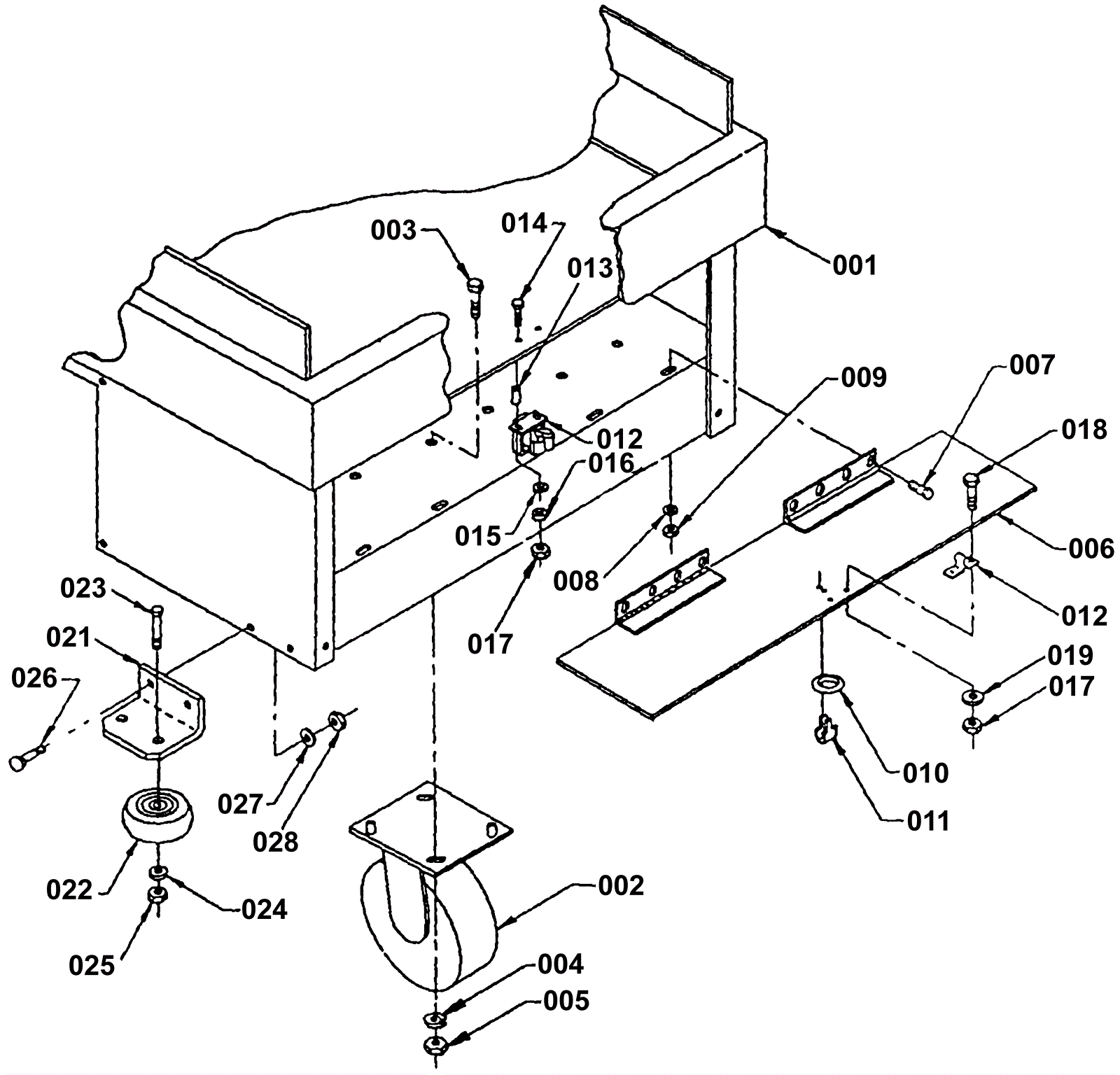

Machine Frame (Front)

#PartDescription ReqNotesAvailability
001 175-0463 Frame weldment (OBSOLETE) 1
002 175-0464 Caster wheel 2
003 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 8
005 175-0465 Nut M10 x 1.5 hex standard (OBSOLETE) 8
006 175-0466 Front door (OBSOLETE) 1
007 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 4
008 999-0053 Washer #10 split lock plain finish 4
010 175-0468 Ring handle (OBSOLETE) 1
011 175-0469 Ring retainer handle (OBSOLETE) 1
012 175-0470 Double roller catch (OBSOLETE) 1
013 N/A Not available 2 (not available) Nylon spacer 0.14 inch ID, 0.38 inch LG, 0.38 inch OD
014 175-1333 Screw M3-.5 x 20mm hex head 2
015 999-0377 Washer 6 SAE flat plain finish 2
016 175-0472 Washer M3 lock (OBSOLETE) 2
017 999-0768 Nut M3-.5 hex coarse thread plain finish 2
018 175-0474 Screw 3mm x 6mm fill head phillips (OBSOLETE) 2
019 175-0472 Washer M3 lock (OBSOLETE) 2
020 999-0768 Nut M3-.5 hex coarse thread plain finish 2
021 N/A Not available 2 (not available) Wheel bracket front
022 175-0117 Guide wheel with bushing 2
023 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
026 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 4
